Step 2 Unscrew the two captive screws (one on each ejector handle) and rotate the ejector handles away from the chassis (see
Callouts 1 and 2 in the following figure). Be sure that the locking posts on the top and bottom of the chassis (see Callout
3) rotate into the module so that the module can slide fully into the slot.

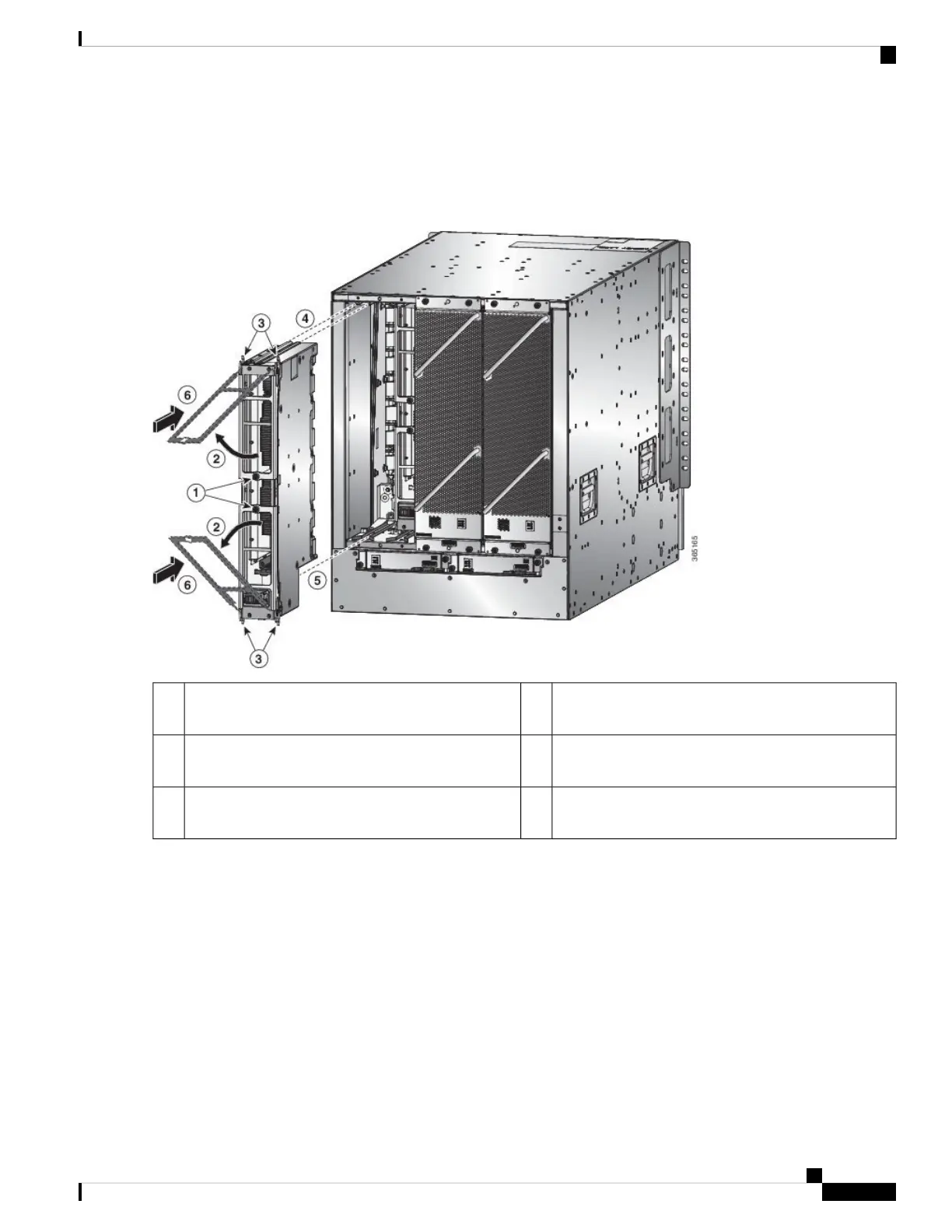

Figure 65: Installing a Fabric Card in a Chassis
Align the rails on the top of the module to the track on
the top of the open slot.
4Unscrew two captive screws (one on each ejector
handle).
1
Align the bottom of the module so that it slides into the
tracks on the bottom of the open slot.
5Rotate both ejector handles away from the front of
the module.
2
Slide the module all the way into the slot.6Be sure that the locking posts fully rotate down into
the module
3
Step 3 Fit the guide rails on the top of the module into the track on the top of the slot and make sure that the guide bar on the
bottom of the module goes into the module guide at the bottom of the slot.
Step 4 Slide the module all the way into the slot.
Step 5 Rotate both ejector levers to the front of the chassis and be sure that the module is locked to the top and bottom of the
slot.
Step 6 Screw in the captive screw on each of the two levers so that each lever is locked in place on the module. Tighten each
screw to 8 in-lb (0.9 N·m) of torque.
Step 7 Reinstall the fan module over the replaced fabric card by following these steps:
a) Use both of your hands to hold the two handles on the front of the fan tray that you are installing.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
115
Replace Chassis Components
Install a Fabric Card
