Cisco NCS 5508

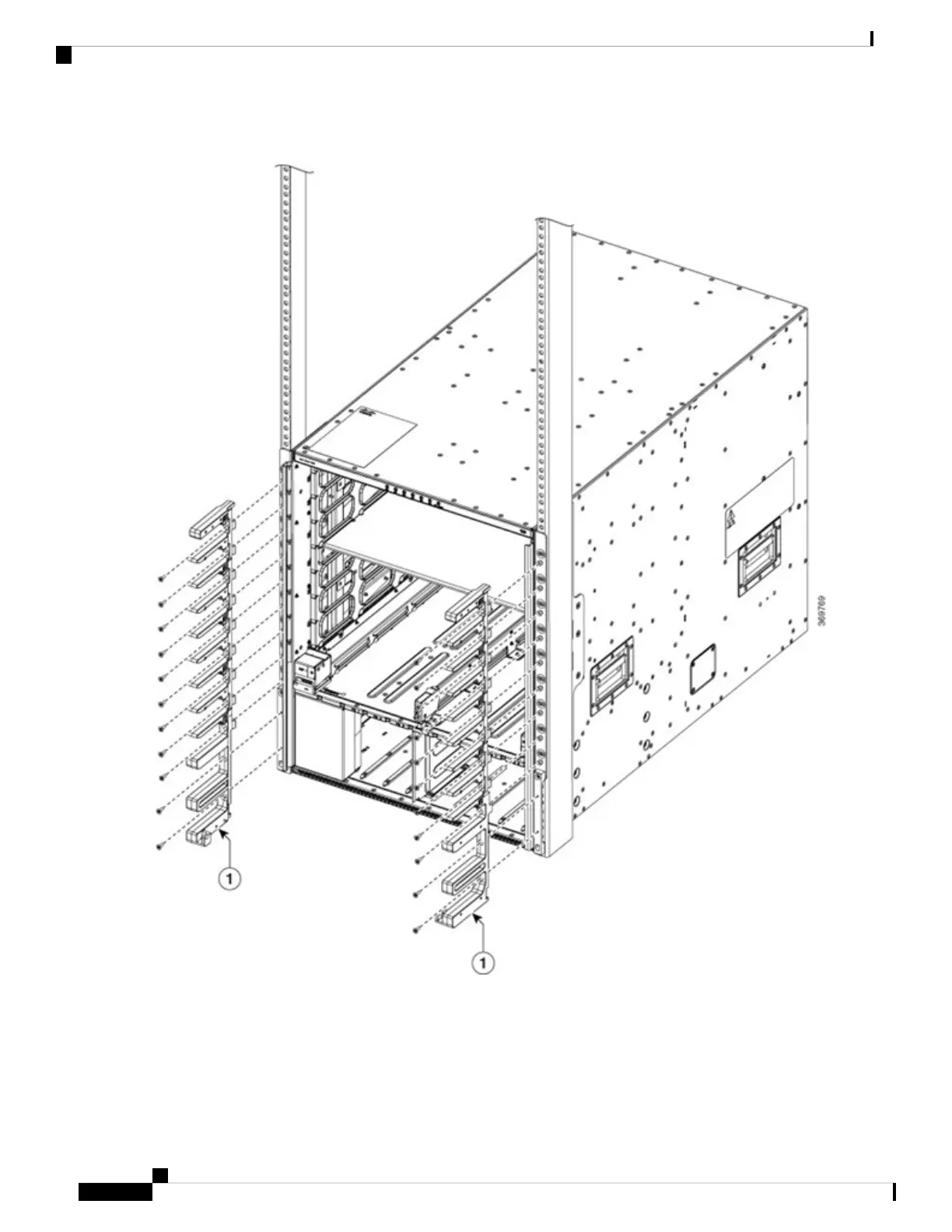

Figure 21: Attach Side Filter Assembly or Cable Management Brackets to NCS 5508 Chassis
For NCS 5516: Ensure that the 17 screw holes in the assembly align with the screw holes in 17 standoffs on the
mounting bracket.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
52
Install the Chassis
(Optional) Install Air Filter, Cable Management Bracket, or Door Kit on a Chassis
