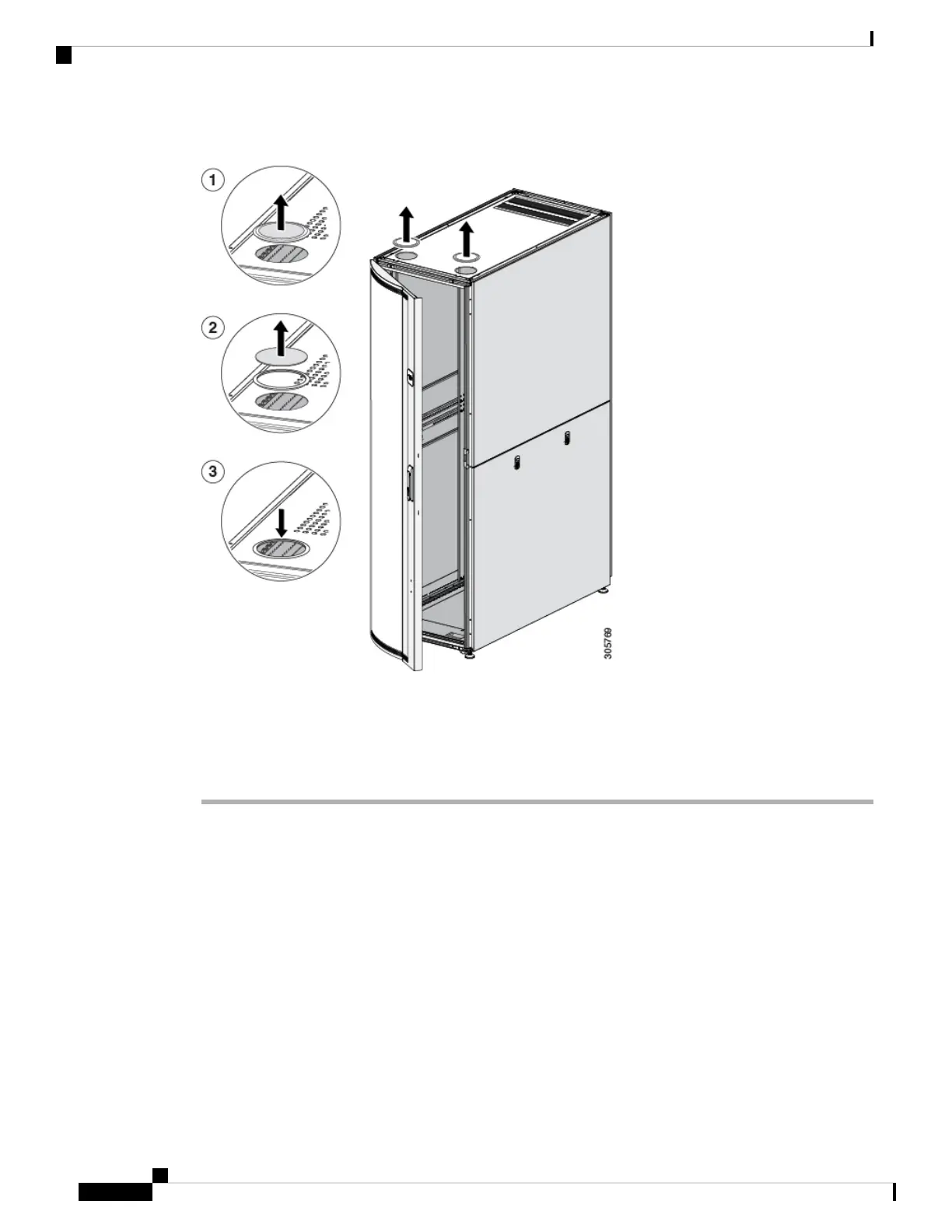

Figure 25: Removing the Cabling Portholes
Step 2 Snap and discard the center of the cabling porthole. See callout 2.
Step 3 Replace the grommet ring of the cabling porthole in the opening. See callout 3.
Failure to replace the grommet ring may lead to damaged power or network cables.
Caution
Cisco R42612 Rack and RP-Series Metered Input PDU Installation Guide
48
Replacing Components
Using the Cabling Portholes
