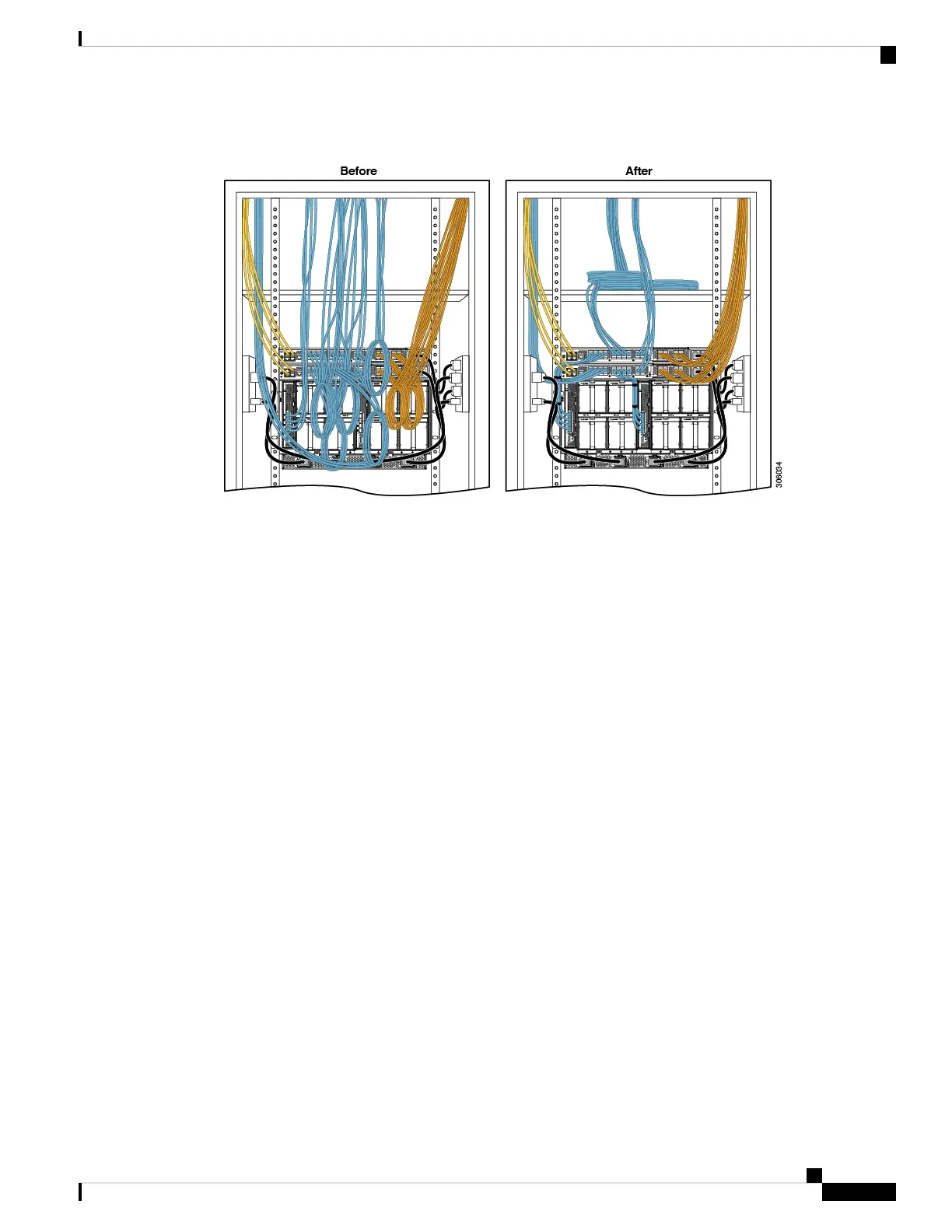

Figure 40: Cable Management
Airflow
Remove airflow obstructions from the intake and exhaust openings of the equipment mounted in the chassis.
Lack of sufficient airflow may cause increased equipment fan power consumption to compensate for increased
airflow impedance.
Installing Fabric Interconnects
Install the fabric interconnects in the topmost RUs of the rack. Having the fabric interconnects in this position
ensures that you can subsequently add a UCS rack server or UCS 5108 Server Chassis between the highest
positioned chassis and the lowest positioned fabric interconnect.
Installing a UCS 6300 Series Fabric Interconnect
For information about, and instructions on how to install a Cisco UCS 6300 Series Fabric Interconnect, see
the Cisco UCS 6300 Series Fabric Interconnect Hardware Installation Guide.
Installing a UCS 6200 Series Fabric Interconnect
For information about, and instructions on how to install a UCS 6200 Series Fabric Interconnect, see the Cisco
UCS 6200 Series Fabric Interconnect Hardware Installation Guide.
Cisco R42612 Rack and RP-Series Metered Input PDU Installation Guide
71
Integrating UCS Components in the Dynamic Rack
Airflow
