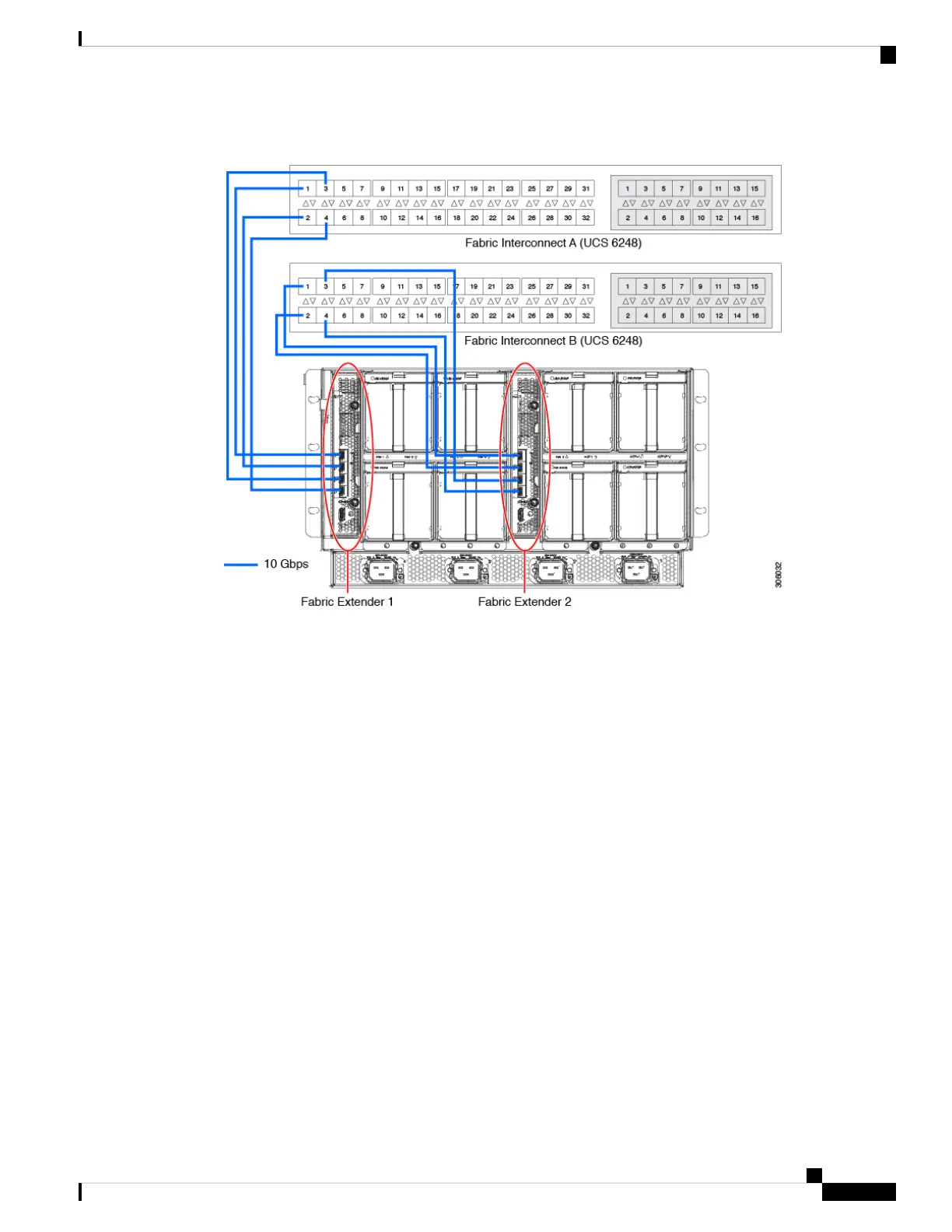

Figure 34: Data Cabling for the UCS 5108 Server Chassis and UCS 6248 Fabric Interconnect
Power Cables for the UCS 5108 Server Chassis
The following figures show separate power feeds connect to each PDU and the routing of power cables from
the PDUs to the chassis. This connection method allows for redundancy in case of a power feed failure.
Cisco R42612 Rack and RP-Series Metered Input PDU Installation Guide
65
Integrating UCS Components in the Dynamic Rack
Power Cables for the UCS 5108 Server Chassis
