Data Cables for the UCS Mini Server Chassis
The UCS 6324 Fabric Interconnect is installed in the back of Cisco UCS Mini Server Chassis. Because it is
internal to the chassis, there are no data cables to connect it to the UCS Mini chassis. The only data cables
that are connected to the UCS Mini chassis are those that connect the UCS 6324 Fabric Interconnect to external
switches and servers. See the following figure.

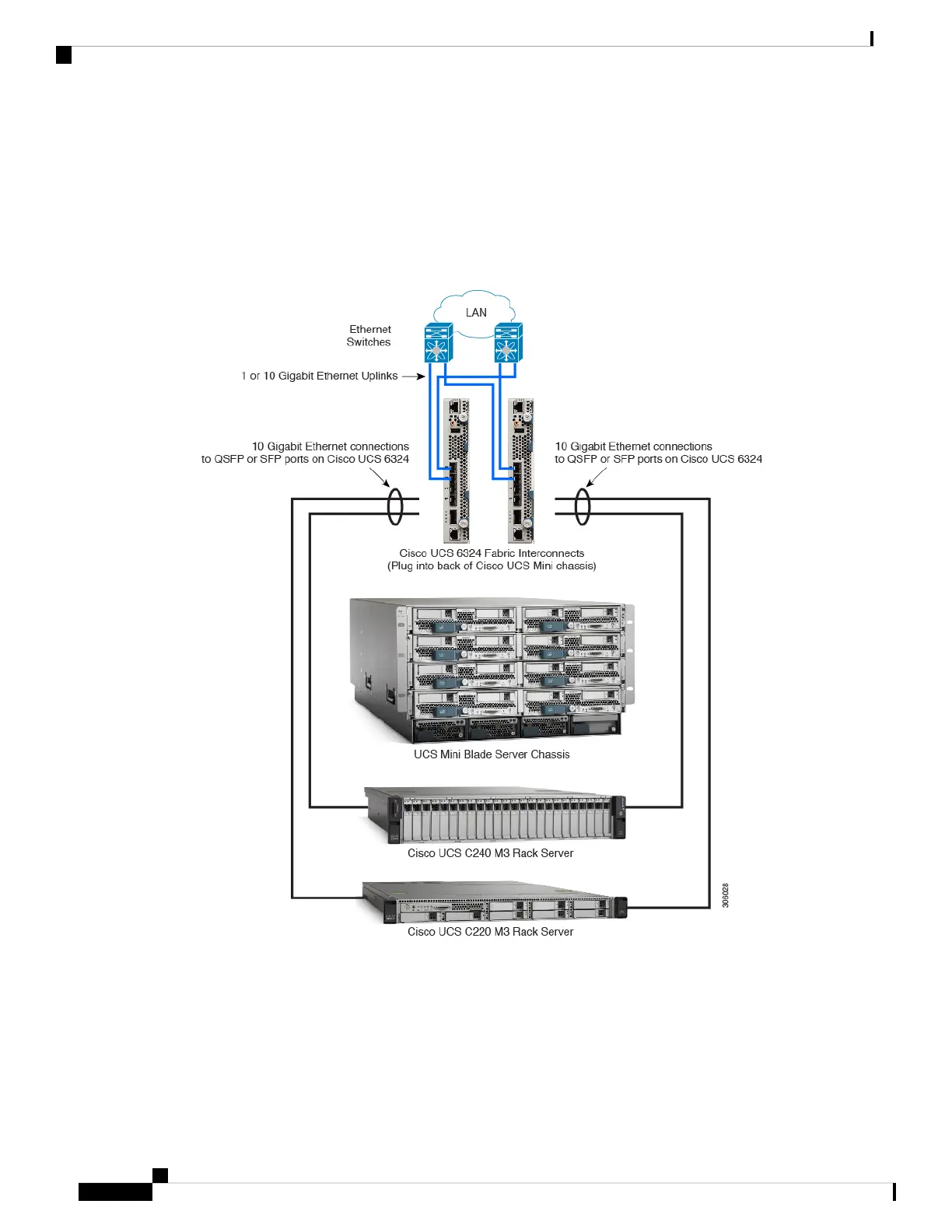

Figure 37: Data Cables Connected to UCS Mini
Power Cables for the Cisco UCS Mini Server Chassis
The following figures show separate power feeds connected to each PDU and the routing of the power cables
from the PDUs to the chassis. This connection method provides redundancy in case of a power feed failure.
Cisco R42612 Rack and RP-Series Metered Input PDU Installation Guide
68
Integrating UCS Components in the Dynamic Rack
Data Cables for the UCS Mini Server Chassis
