Cisco UC500 series User Manual

APPENDIX C: PPPoE on the WAN
Cisco Unified Communications Technical Training
Page 156 of 171
3. Click on the “Modify” button.

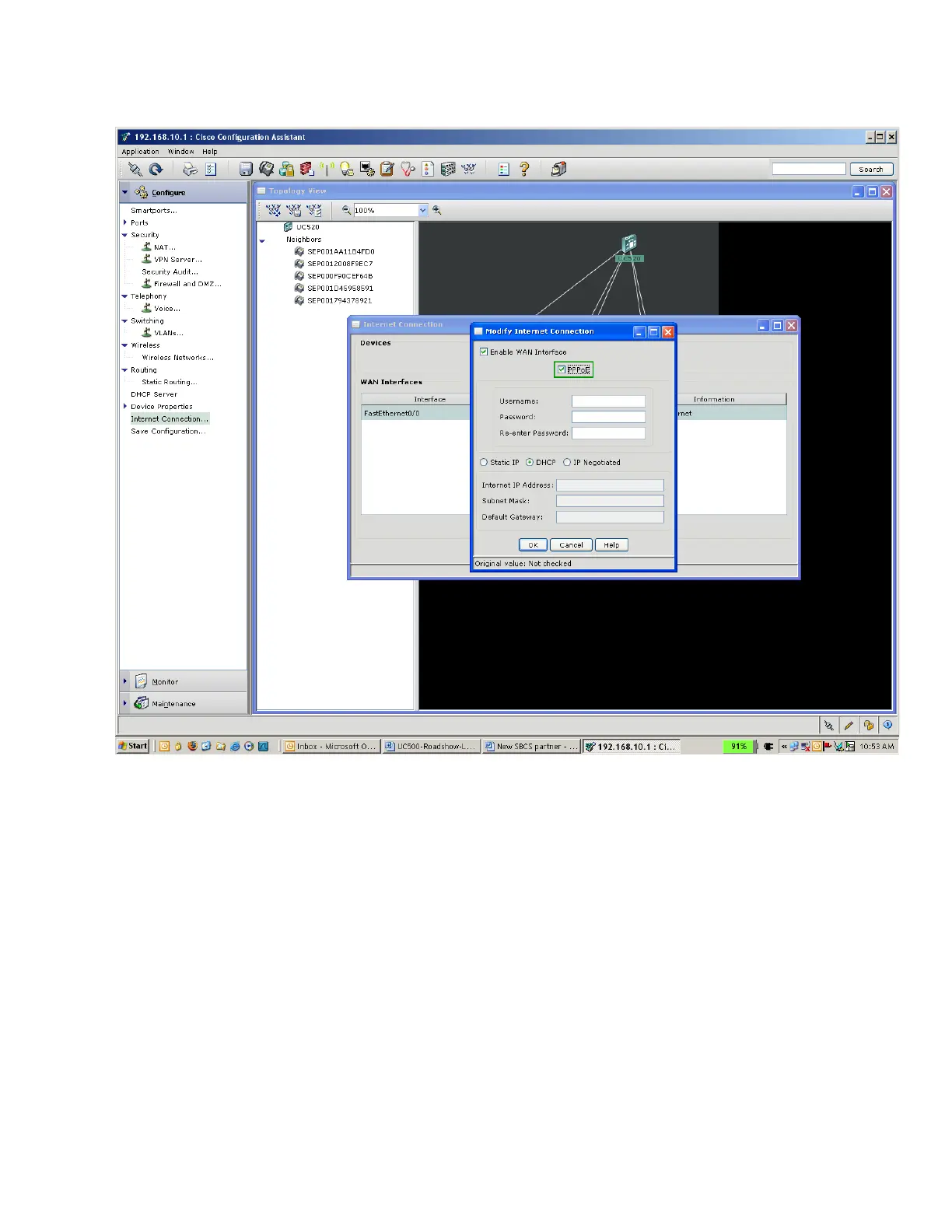

4. Check PPPoE button, enter username, password and select IP Negotiated/DHCP. Click OK
5. Click “Apply” and then OK on the Internet Connection screen
6. Click on “Configure -> Security -> NAT”
7. Click Yes when prompted to Delete Partial configuration.
8. Select Dialer0/FastEthernet0/0 as the outside Interface and click Apply and then OK
Verify Steps:
1. Telnet into the UC500 from the connected computer
