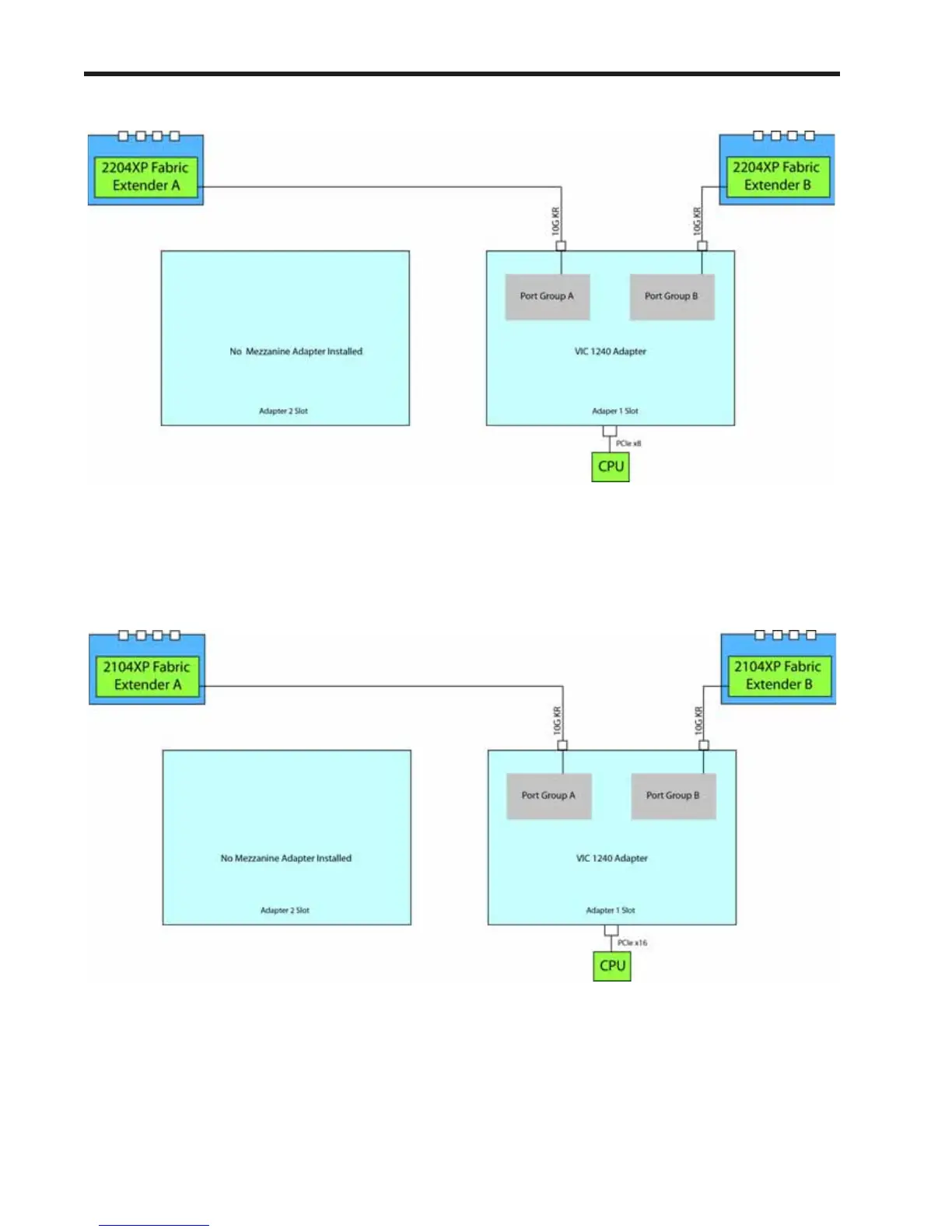

Figure 12 VIC 1240 to UCS 2204XP Fabric Extender (no mezzanine adapter)
Connectivity using the Cisco UCS 2104XP Fabric Extender
The option shown in Figure 13 demonstrates how a 1-CPU server is connected to the Cisco UCS 2104XP. One
port from the VIC 1240 is channeled to 2104XP Fabric Extender A and one is channeled to 2104XP Fabric
Extender B. The result is 10 Gbps of bandwidth to each Fabric Extender.
Figure 13 VIC 1240 to UCS 2104XP Fabric Extender (no mezzanine adapter)
