Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Large Form Factor Hard Disk Drive Model)
6
DETAILED VIEWS
DETAILED VIEWS
Chassis Front View

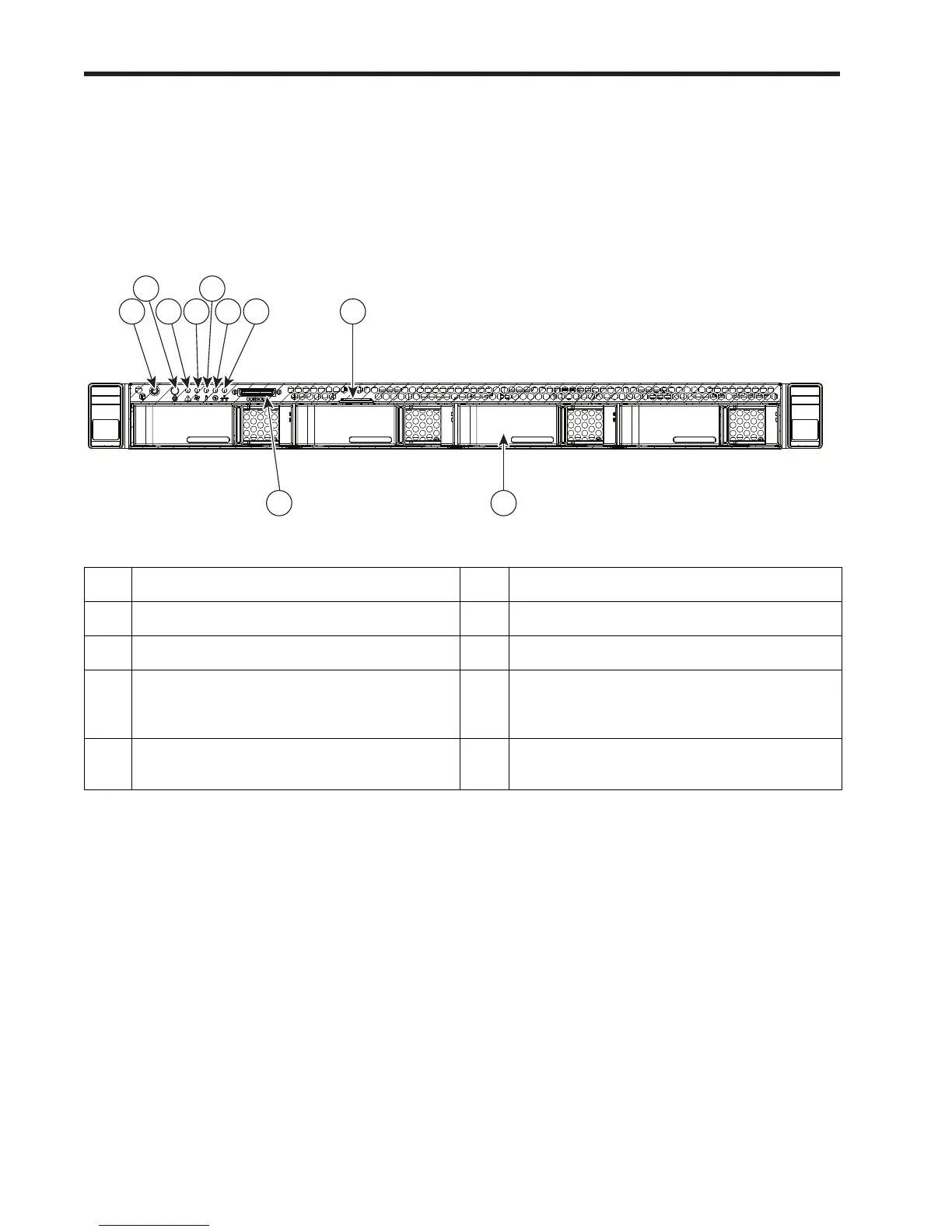

Figure 2 shows the Cisco UCS C220 M3 High-Density LFF Rack Server.
Figure 2 Chassis Front View
For more information about the KVM cable connection, see KVM CABLE, page 75.
1 Power button/power status LED 6 Power supply status LED
2 Identification button/LED 7 Network link activity LED
3 System status LED 8 Asset tag (serial number)
4 Fan status LED 9 KVM connector (used with KVM cable that
provides two USB, one VGA, and one serial
connector)
5 Temperature status LED 10 Drives (up to four hot-swappable 3.5-inch
drives)
HDD1 HDD2 HDD3 HDD4
109
84 6 7
5
31
2
331684
