Cisco UCS C220 M3 - Chassis Rear View

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Large Form Factor Hard Disk Drive Model)
DETAILED VIEWS
7
Chassis Rear View
Figure 3 shows the external features of the rear panel.

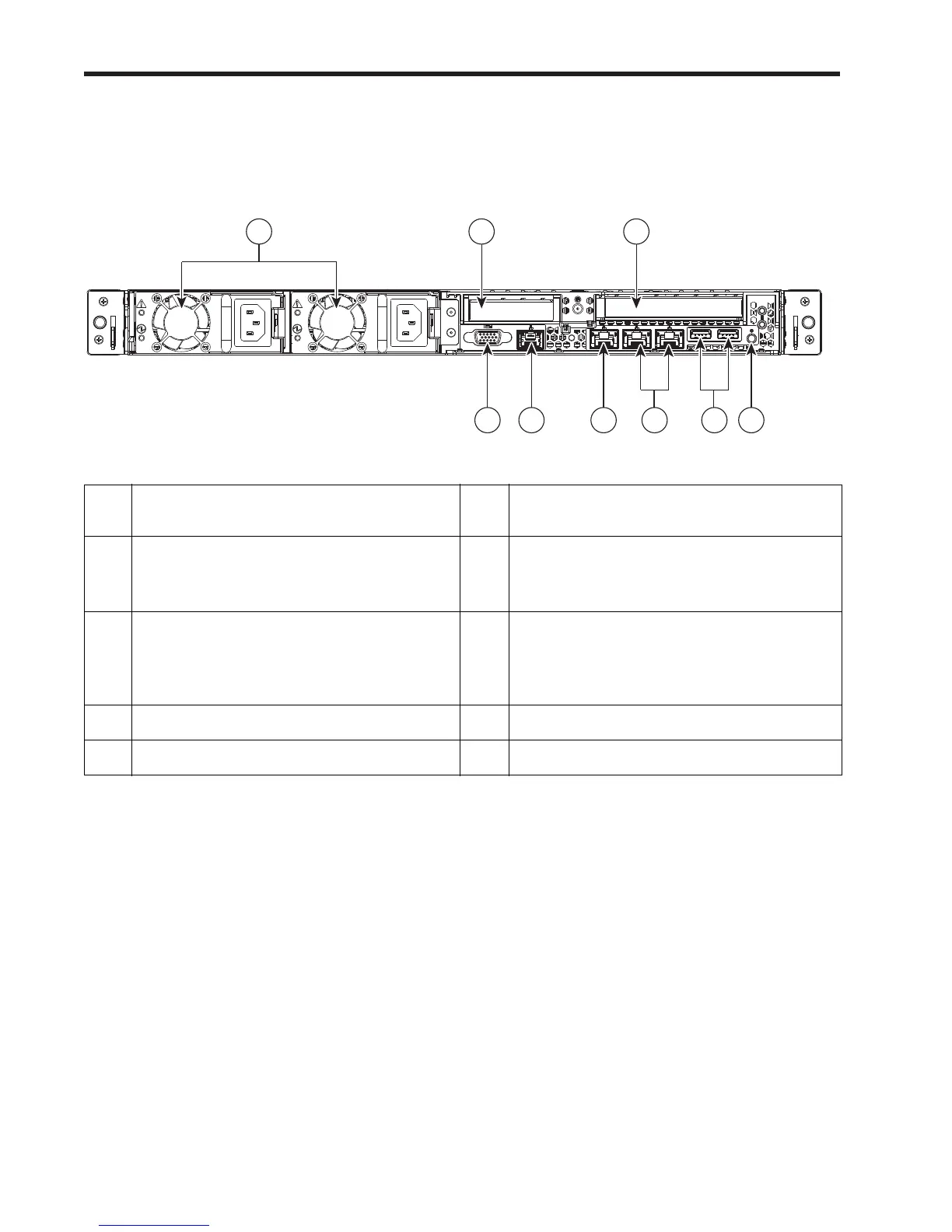

Figure 3 Chassis Rear View
1 Power supplies (up to two) 6 One 10/100/1000 Ethernet dedicated
management port
2 Slot 2: Low-profile PCIe slot on riser:
(half-height, half-length, x16 connector, x8
lane width)
7 Dual 1-GbE ports
(LAN1 and LAN2)
3 Slot 1: Standard-profile PCIe slot on riser:
(full-height, half-length, x24 connector, x16
lane width) (supports Cisco Virtual Interface
Card (VIC)
8 USB ports
4 VGA video connector 9 Rear Identification button/LED
5
Serial port (RJ-45 connector)
1
Notes . . .
1. Serial port pinout details are given in Serial Port Details, page 68.
— —
PSU1PSU1 PSU2PSU2PSU1 PSU2
PCIe2
PCIe1
4 5 6 98
2 31
7
331683
