D-11
Cisco UCS C240 M4 Server Installation and Service Guide
OL-32474-01
Appendix D GPU Card Installation

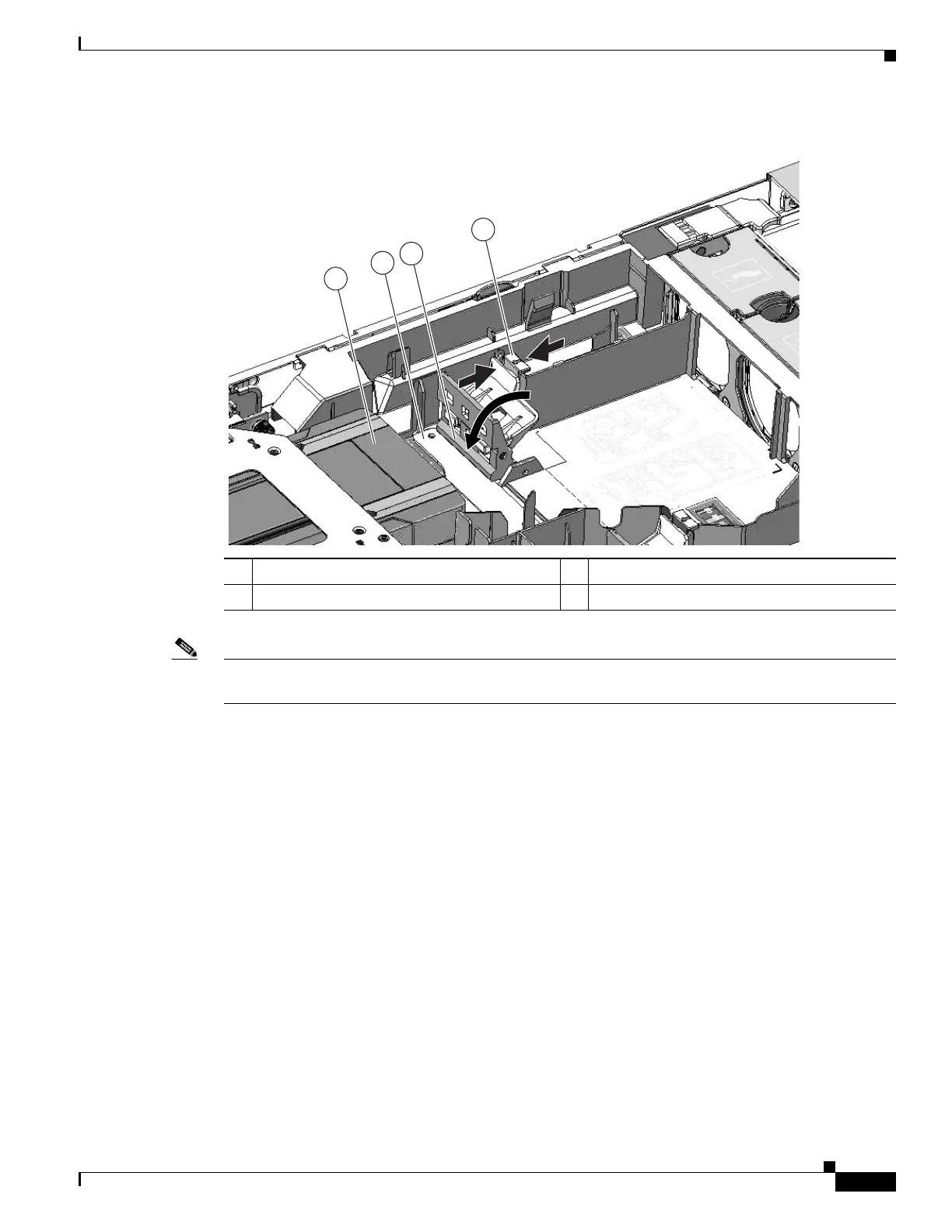

Figure D-4 GPU Front Support Bracket Inserted to Air Baffle Latch
Note If your server has two GPUs, skip the following step. The filler panel shunts airflow to the PCIe riser in
which a GPU is installed. A system with two GPUs does not use the filler.
Step 18 If your system has only a single K80 GPU, install the filler panel to the air baffle base in slot 2 as shown
in Figure D-5. Slide the filler panel edges into the slots as shown.
1 Front end of GPU 3 Lip on support bracket latch
2 Front support bracket attached to GPU 4 Latch release tab
