Cisco UCS C240 M4

1-4
Cisco UCS C240 M4 Server Installation and Service Guide
OL-32474-01
Chapter 1 Overview
Figure 1-3 shows the front-panel features of the SFF drives, 8-drive version of the server. This version
of the server has a direct-connect, 8-drive backplane (no expander).

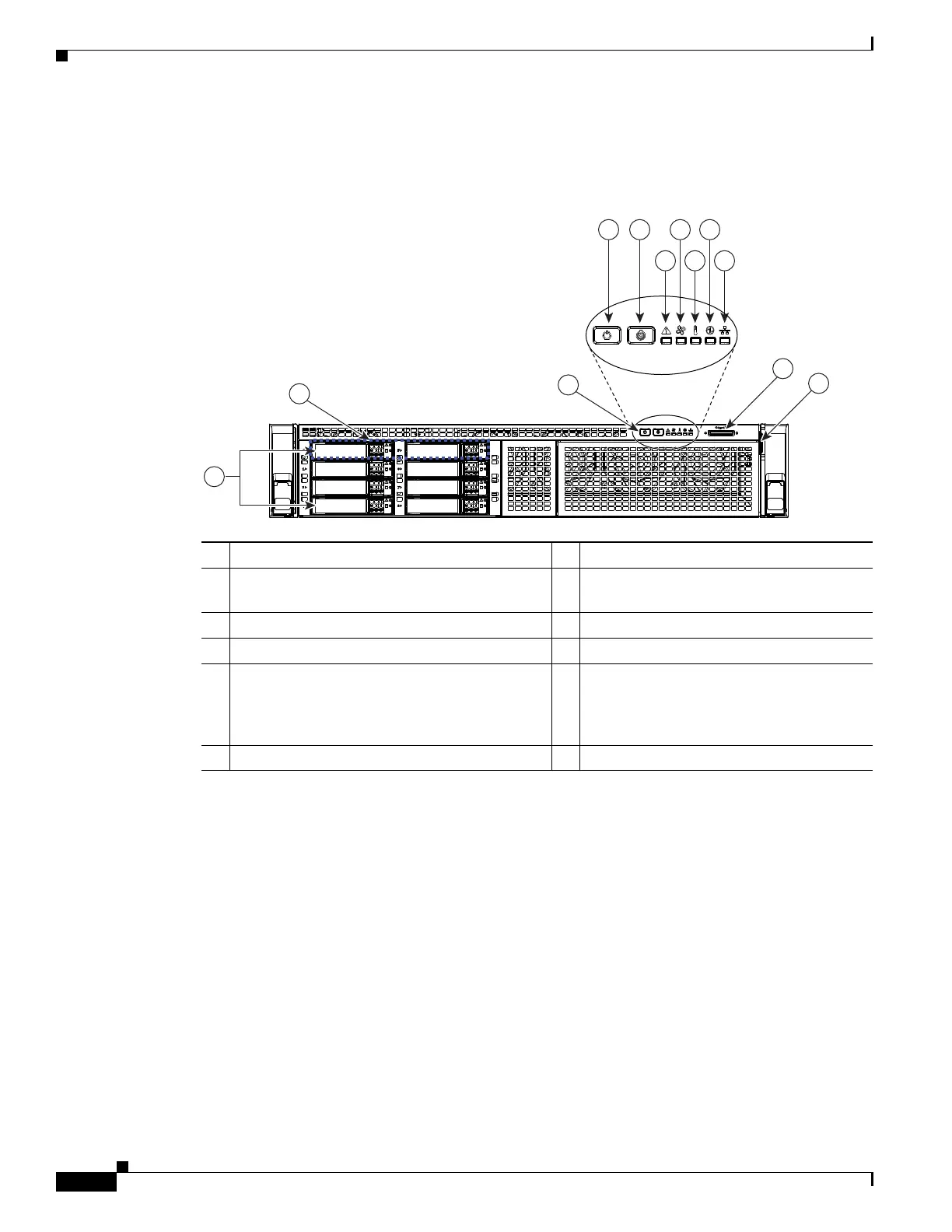

Figure 1-3 Cisco UCS C240 M4 Server (SFF Drives, 8-Drive) Front Panel Features
1 Drive bays 1–8 support SAS/SATA drives. 7 Fan status LED
2 Drive bays 1 and 2 support NVMe PCIe SSDs
and SAS/SATA drives.
8 Temperature status LED
3 Operations panel buttons and LEDs 9 Power supply status LED
4 Power button/LED 10 Network link activity LED
5 Unit Identification button/LED 11 KVM connector
(used with KVM cable that provides two
USB 2.0, one VGA, and one serial
connector)
6 System status LED 12 Pull-out asset tag
HDD01
HDD03
HDD05
HDD07
HDD02
HDD04
HDD06
HDD08
1
1086
4 5 7 9
11
12
352945
3
2
