Cisco UCS S3260 Storage Server Chassis Installation and Service Guide
Chapter 1 Overview
Overview of Cisco UCS S3260 Architecture
Data Architecture
The data plane architecture has different associations between components than the management plane.

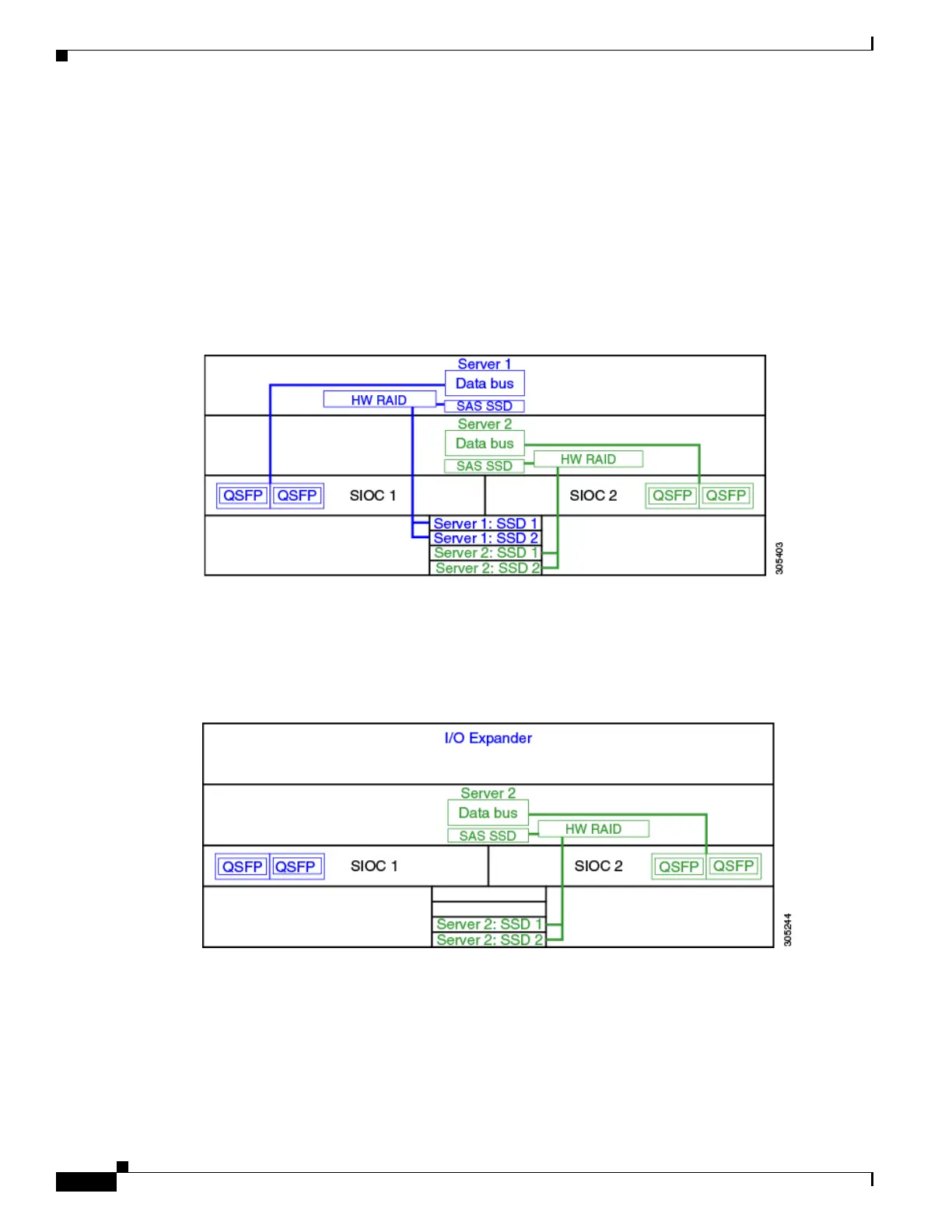

The diagram shown in Figure 1-8 illustrates the following associations for a dual-server system:
• The data bus in server node 1 connects through SIOC 1.
• The data bus in server node 2 connects through SIOC 2.
• Server 1 SSDs 1 and 2 can be controlled by a RAID controller card in server node 1.
• Server 2 SSDs 1 and 2 can be controlled by a RAID controller card in server node 2.
Figure 1-8 Data Architecture in a Dual-Server System
The diagram shown in Figure 1-9 illustrates the following associations for a single-server system:
• The data bus in server node 2 connects through SIOC 2.
• Server 2 SSDs 1 and 2 can be controlled by a RAID controller card in server node 2.
Figure 1-9 Data Architecture in a Single-Server System With I/O Expander

Cisco UCS S3260 Specifications

General

Drive Bays	Up to 56
Maximum Storage Capacity	Up to 600 TB
Power Supply	Up to 4 hot-plug power supplies
Product Type	Storage Server Chassis
Supported Drives	SAS, SATA
Processors	Up to two Intel Xeon Scalable processors
Memory	Up to 1.5 TB DDR4 RAM
Power Supplies	Redundant 80+ Platinum power supplies
Total Drive Bays	56
Management	Cisco UCS Manager
Compatibility	Cisco UCS system
Form Factor	4U rack
