Status LEDs and Buttons
Front-Panel LEDs

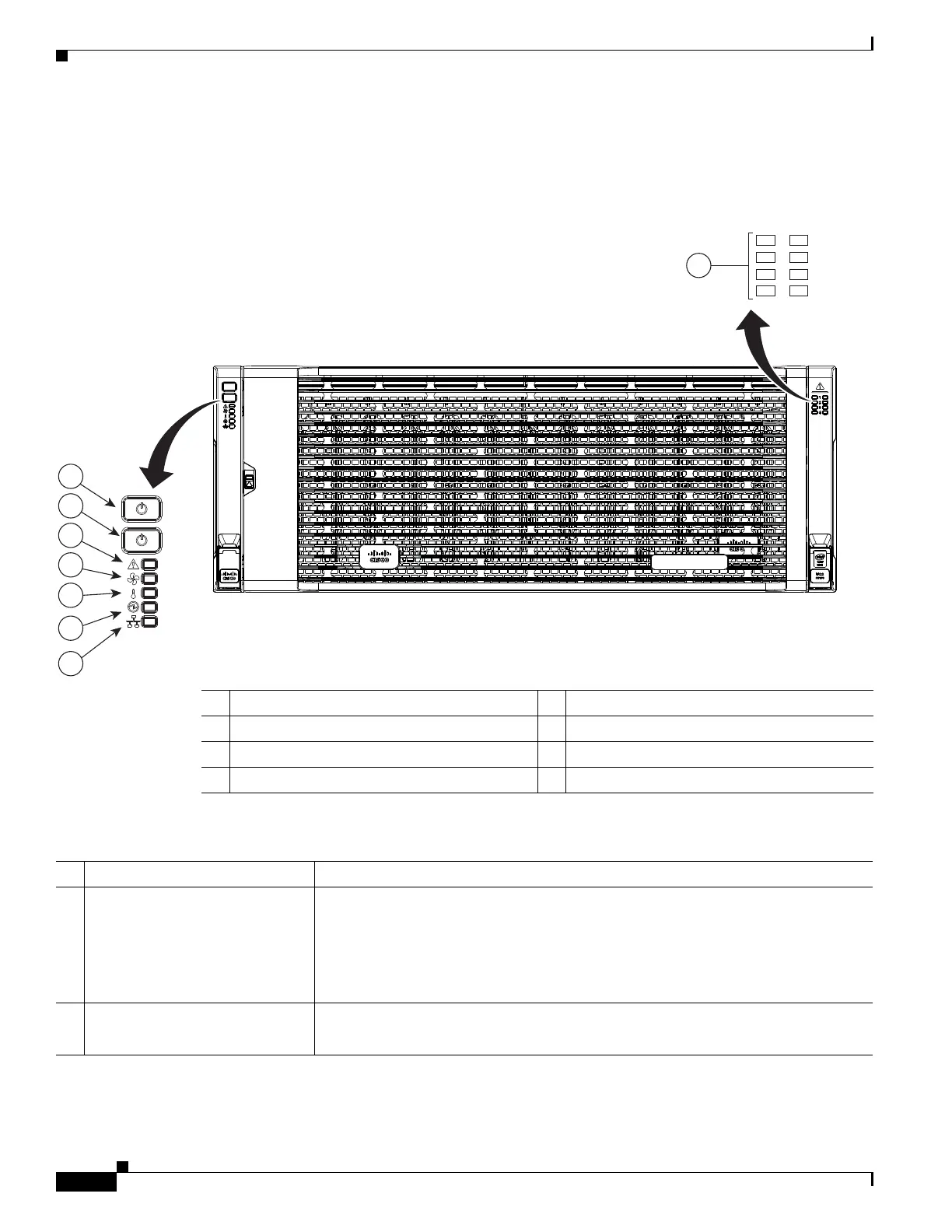

Figure 3-1 shows the front-panel LEDs. Table 3-1 defines the front-panel LED states.
Figure 3-1 Front-Panel LEDs
1 System Power button and power status LED 5 Temperature status LED
2 System unit identification button and LED 6 Power supply status LED
3 System status LED 7 Network link activity LED
4 Fan status LED 8 Internal-drive status LEDs
Table 3-1 Front-Panel LEDs States
LED Name State
1 System Power button/power
status LED
• Off—There is no AC power to the system (all power cords are disconnected).
• Amber—Both server nodes are powered off. Pressing the button will power on
both server nodes.
• Green—At least one server node is powered on. Pressing the button will power
off both server nodes, returning the LED to amber.
2 System unit identification
• Off—The unit identification LED is not in use.
• Blue, blinking—The unit identification LED is activated.
