Cisco UCS S3260 Service Manual

3-19
Cisco UCS S3260 Storage Server Chassis Installation and Service Guide
Chapter 3 Maintaining the System
Installing or Replacing System Components
Identifying a Faulty Internal Drive
The system has internal-drive fault LEDs on the right-front handle (see Figure 3-1). Use these LEDs to
get an indication of the location of a failing drive.
Step 1 Observe the internal-drive fault LEDs on the right-front handle.
• The two columns of LEDs correspond to the two halves of the internal drive compartment (under
either the right- or left-side top cover).
• The four numbered rows of LEDs correspond to the four horizontal rows of drive bays (14 drive bays
in each row).
See Figure 3-8 for an example. In this example, the amber LED indicates that the failing drive is in the
right half of the internal drive compartment, in row 3.
Step 2 Open the right- or left-side cover and look at the fault LEDs on the drive trays.
A solid amber fault LED indicates a failed drive.

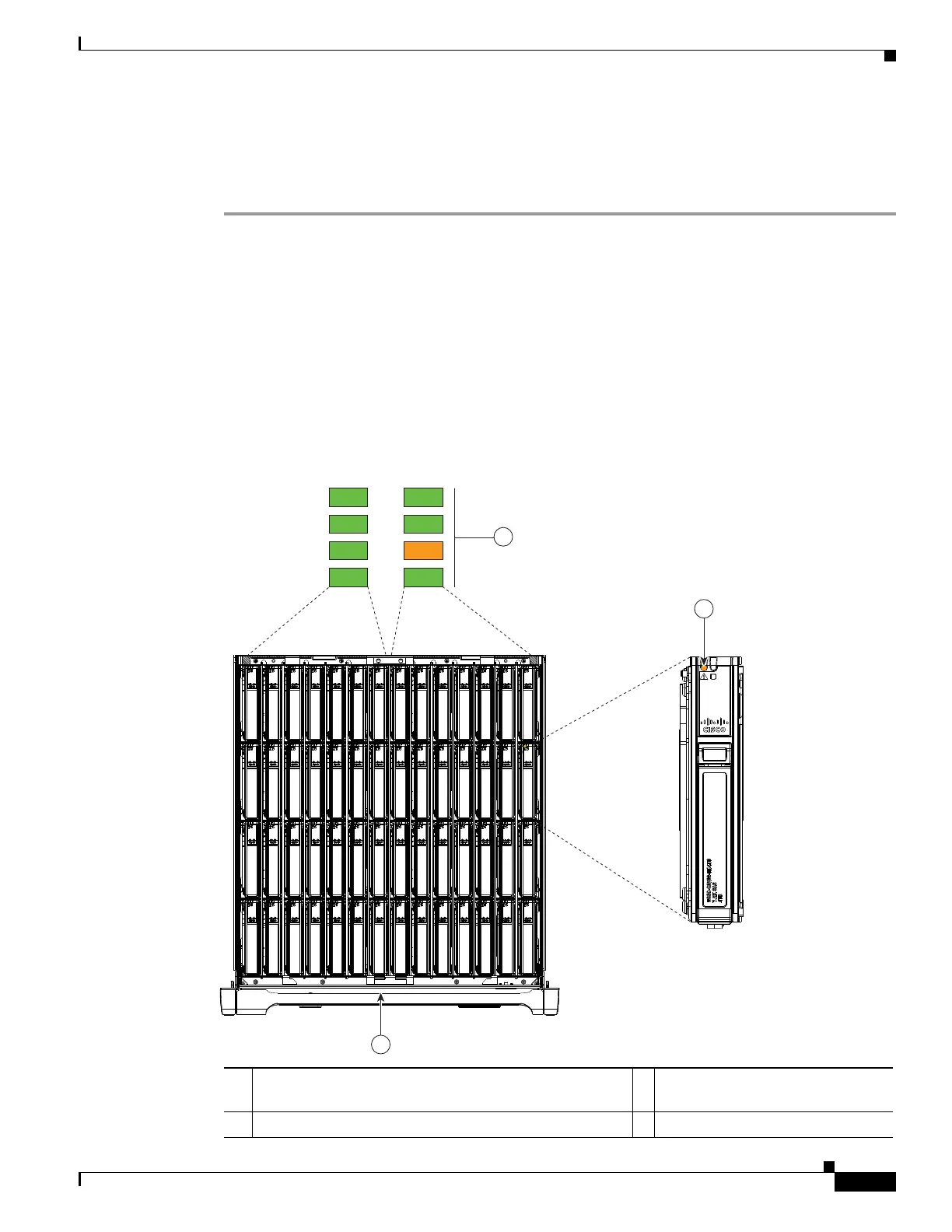

Figure 3-8 Internal-Drive Status LED Example
1 Internal-drive fault LEDs on right-front handle of system,
indicating faulty drive in right side of row 3
3 Front of system
2 Fault LED on drive carrier
353452
HDD01 HDD02 HDD03 HDD04 HDD05 HDD06 HDD07 HDD08 HDD09 HDD10 HDD11 HDD12 HDD13 HDD14
HDD15 HDD16 HDD17 HDD18 HDD19 HDD20 HDD21 HDD22 HDD23 HDD24 HDD25 HDD26 HDD27 HDD28
HDD29 HDD30 HDD31 HDD32 HDD33 HDD34 HDD35 HDD36 HDD37 HDD38 HDD39 HDD40 HDD41 HDD42
HDD43 HDD44 HDD45 HDD46 HDD47 HDD48 HDD49 HDD50 HDD51 HDD52 HDD53 HDD54 HDD55 HDD56
1
1
2
3
4
2
3
4
2
1
3

Cisco UCS S3260 Specifications

General

Drive Bays	Up to 56
Maximum Storage Capacity	Up to 600 TB
Power Supply	Up to 4 hot-plug power supplies
Product Type	Storage Server Chassis
Supported Drives	SAS, SATA
Processors	Up to two Intel Xeon Scalable processors
Memory	Up to 1.5 TB DDR4 RAM
Power Supplies	Redundant 80+ Platinum power supplies
Total Drive Bays	56
Management	Cisco UCS Manager
Compatibility	Cisco UCS system
Form Factor	4U rack
