Chapter 3 Installing the Voice Gateway
Connecting Cables
Procedure
Step 1 Connect one end of the straight-through RJ-11 cable to the FXS port. Figure 3-8 shows an FXS line
connection.

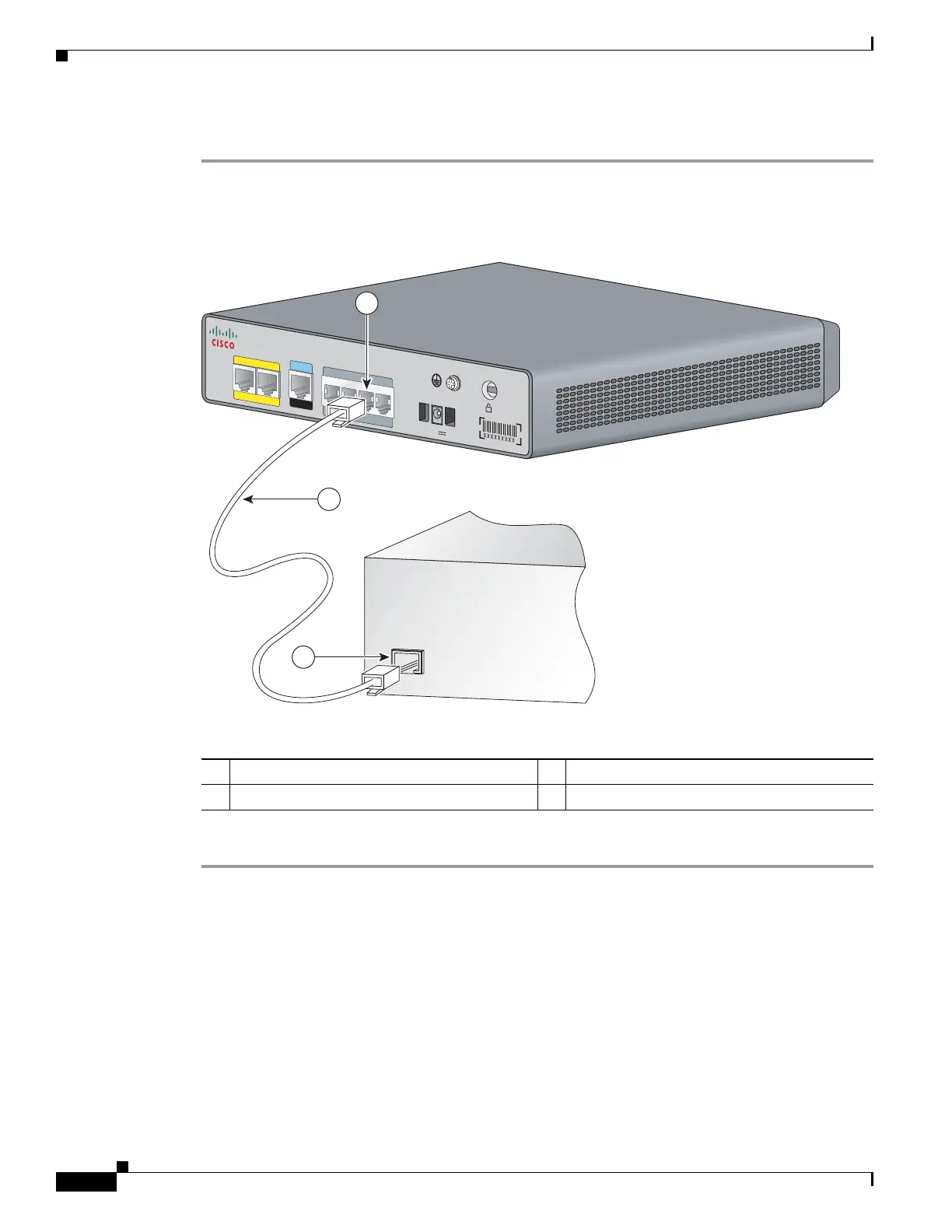

Figure 3-8 Connecting an FXS Line
Step 2
Connect the other end of the cable to the RJ-11 port on the telephone or fax machine.
1 FXS port 2 RJ-11 cable
3 RJ-11 port
VG204
12V
DC
SA
C
ON
SO
L
E
AUX
FastEt
h
ernet
0/
1
0/0
FXS
0
/
1
0
/20
/3
0
/0
Fax machine
or telephone
272271
1
2
3

Cisco VG204 Specifications

General

Number of FXS Ports	4
Voice Codecs	G.711, G.729, G.729a, G.729ab
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	10% to 90% non-condensing
Network Interface	1 x 10/100 Ethernet
Protocol Support	SCCP, SIP
Power Supply	AC 100-240V, 50-60Hz
Weight	2.2 lbs (1 kg)
Storage Temperature	-20 to 70°C
