Procedure
Step 1 Secure two screws 5 7/16 in (13.81 cm) apart into a wall and 5/32 in (0.40 cm) out from the wall.
Step 2 Hang the chassis on the screws as shown in Figure 7.
Step 3 Place the power supply on a horizontal surface.

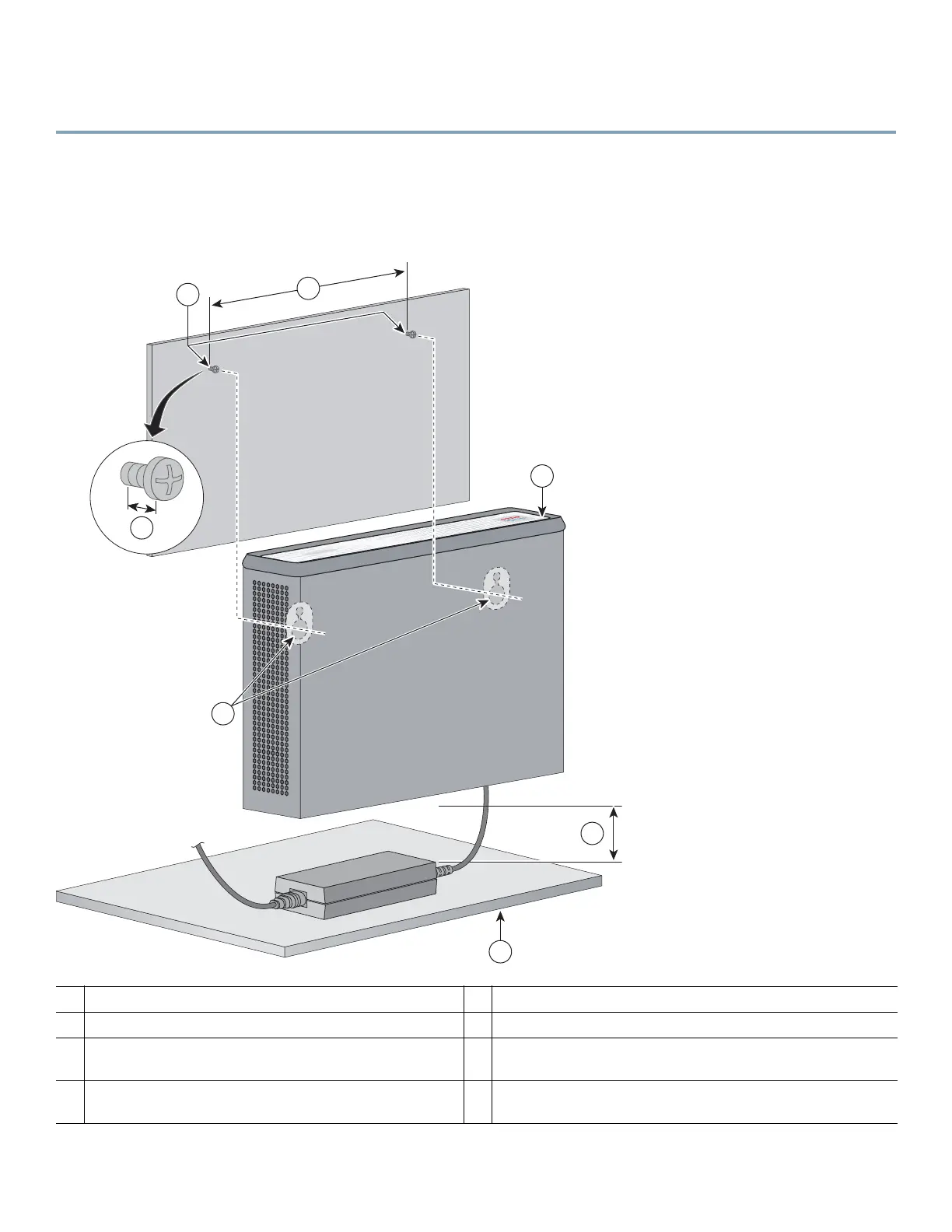

Figure 7 Mounting the Cisco VG202, Cisco VG202XM, Cisco VG204, or Cisco VG204XM Voice Gateway Chassis on a Wall
1
Two number-six, 3/4-in. screws
2
Distance between the two screws (5 7/16 in. [13.81 cm])
3
Chassis
4
Mounting-screw slots
5
Maximum distance between the chassis and the power
supply (6 ft [1.8 m])
6
Horizontal surface on which to set the power supply
7
Distance between the screw and the wall
(1/8 in. [0.32 cm])
231985
1
5
6
4
2
7
3

Cisco VG204 Specifications

General

Number of FXS Ports	4
Voice Codecs	G.711, G.729, G.729a, G.729ab
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	10% to 90% non-condensing
Network Interface	1 x 10/100 Ethernet
Protocol Support	SCCP, SIP
Power Supply	AC 100-240V, 50-60Hz
Weight	2.2 lbs (1 kg)
Storage Temperature	-20 to 70°C
