DescriptionSoftware
Switch Model
24 10/100/1000 Power over Ethernet plus (PoE+) ports (PoE budget of
195W); four 1-Gigabit Ethernet small form-factor pluggable (SFP) module
uplink slots
Lan LiteWS-C2960L-24PS-LL
48 10/100/1000 Ethernet ports; four 1-Gigabit Ethernet small form-factor
pluggable (SFP) module uplink slots
Lan LiteWS-C2960L-48TS-LL
48 10/100/1000 Power over Ethernet plus (PoE+) ports (PoE budget of
370W); four 1-Gigabit Ethernet small form-factor pluggable (SFP) module
uplink slots
Lan LiteWS-C2960L-48PS-LL
Front Panel
This section describes the front panel components of a 24-port and 48-port Cisco Catalyst 2960-L switch.
•
24 or 48 downlink ports of one of these types:
◦
10/100/1000
◦
10/100/1000 PoE+
•
SFP ports
•
USB Type A connectors
•
USB mini-Type B (console) port
•
RJ-45 console port
•
LEDs
•
Mode button

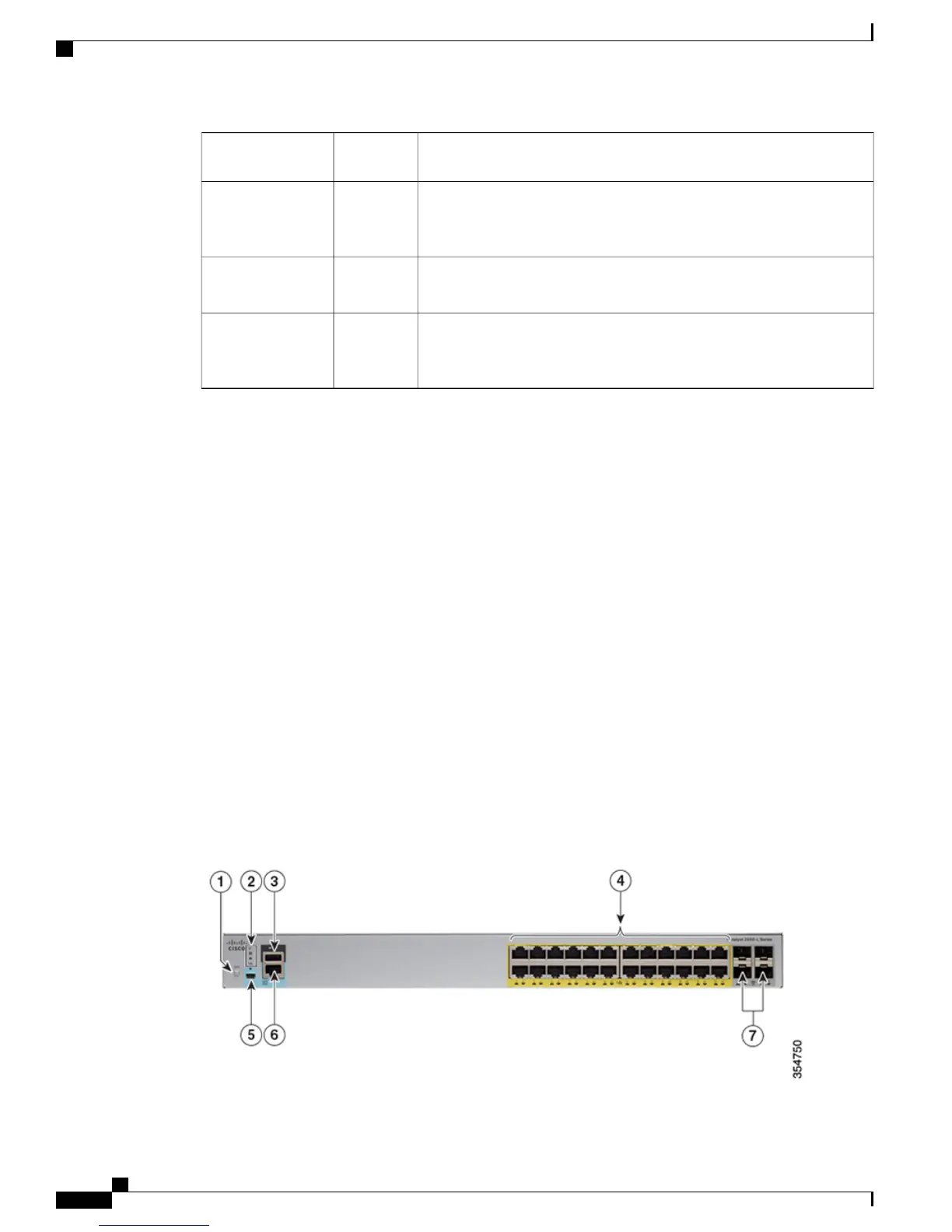

Figure 1: Front Panel of a 24-Port Cisco Catalyst 2960-L PoE Switch
Cisco Catalyst 2960-L Series 24-Port and 48-Port Switch Hardware Installation Guide
2
Product Overview
Front Panel
