Attaching the Rack-Mount Brackets
Attaching the Rack-Mount Brackets to a 24-Port and 48-Port Cisco Catalyst 2960-L Switch
Use two Phillips flat-head screws to attach the long side of the bracket to each side of the switch.

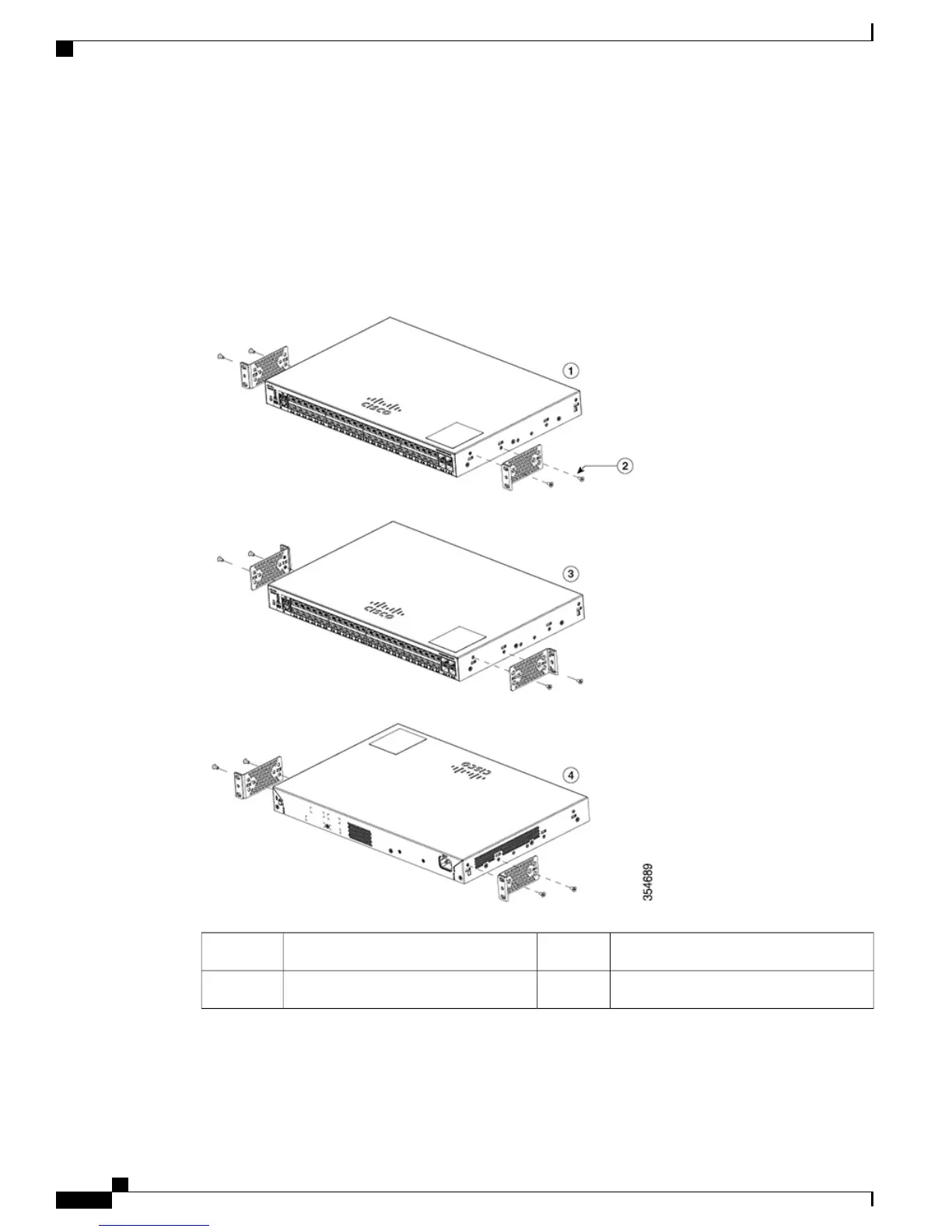

Figure 10: Attaching 19-inch Brackets to a 24-Port and 48-Port Cisco Catalyst 2960-L Switch
Mid-mounting position3Front-mounting position1
Rear-mounting position4Number-8 Phillips flat-head screws2
