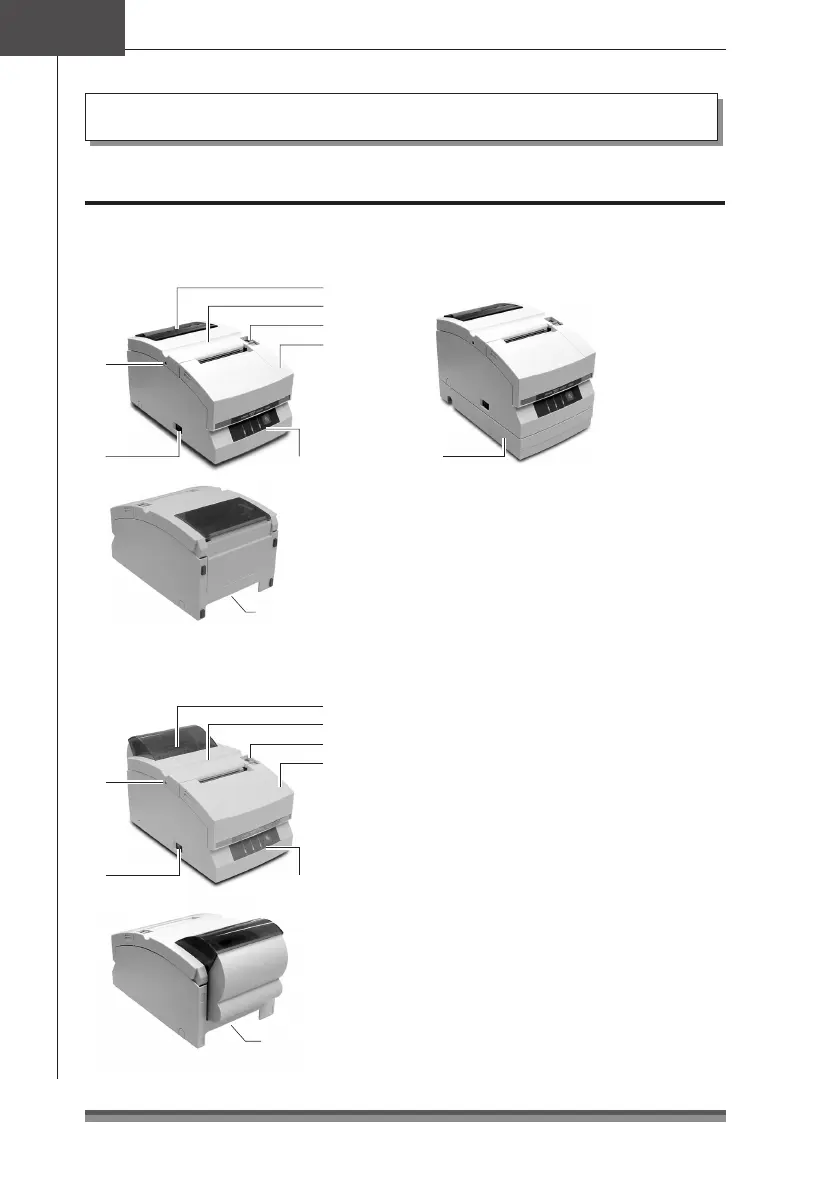

Chapter2
Names and Functions of Parts
Rear connectors
(see page 19)
Rear connectors
(see page 19)
1
2
3
4
5
6
Operation panel
(see page 18)
7
1
2
3
4
5
6
Operation panel
(see page 18)
1 Paper check window
It can be used to check the amount of
paper left on the roll.
2 Rear cover
It can be opened to set or to replace a
paper roll.
3 Rear cover open lever
It is a lever used to open the rear cover.
Pull the lever towards you to open the rear
cover.
4 Front cover
It can be opened to set or replace the
ribbon cassette.
5 Power switch
It turns the printer power on and off.
6 Cutter lock clearing screw hole
When the rear cover cannot be opened
because the blade of the auto cutter
protrudes after a malfunction or as a result
of a paper jam, turn this screw with a
Phillips head screw driver to return the
blade.
7 AC adapter case
This is installed only for the built-in AC
adapter type.
Exterior
Names and Functions of Parts
 AC adapter type
Standard and auto cutter equipped
models
 Built-in AC adapter type
Auto cutter and rewinder equipped
model
