Citizen CD-S500A - When setting Paper Width of 69.5 mm; When setting Paper Width of 57.5 mm

26
Chapter3
Preparing the Printer

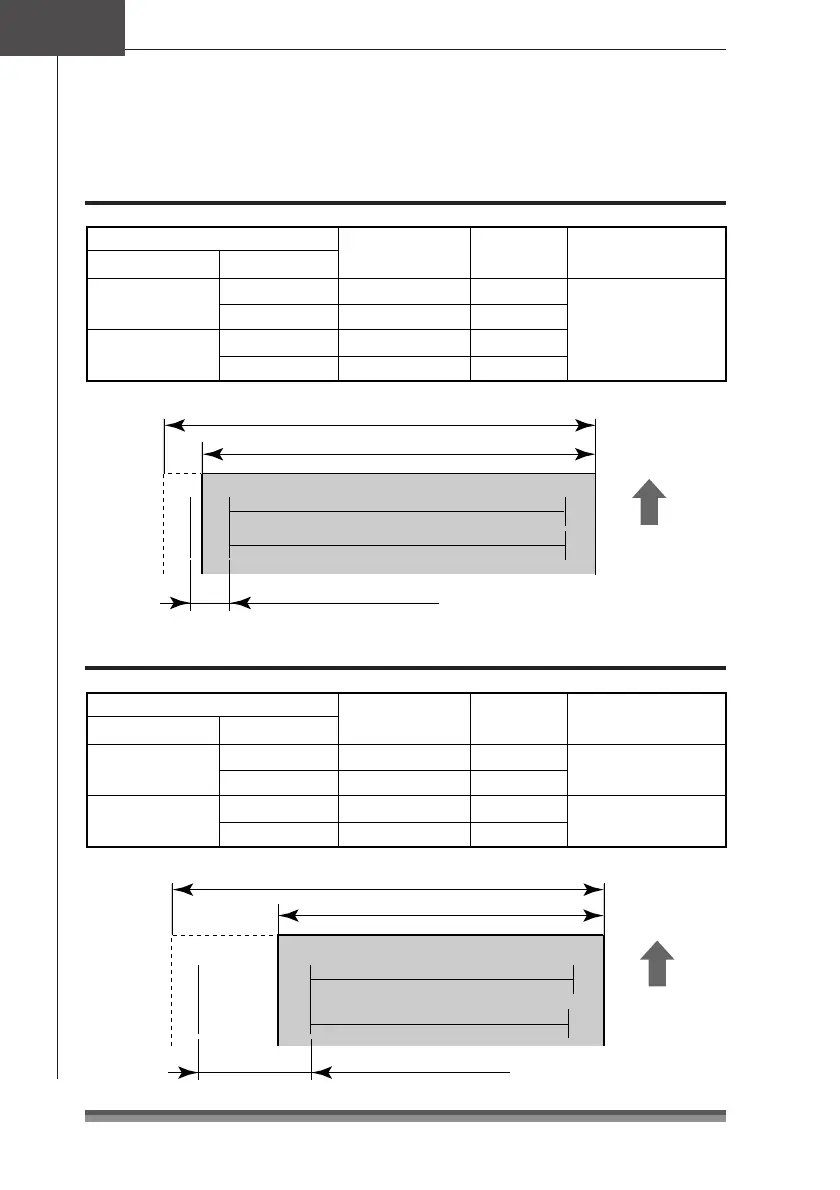

When setting Paper Width of 69.5mm
When setting Paper Width of 57.5mm
Paper width: 76.2mm
Paper width: 69.5mm
Right offset: 40 dots
When Number of col. 40/33 are selected: 360 dots
When Number of col. 42/35 are selected: 360 dots
Paper feed
direction
Paper width: 76.2mm
Paper width: 57.5mm
Right offset: 100 dots
When Number of col. 40/33 are
selected: 300 dots
When Number of col. 42/35 are
selected: 298 dots
Paper feed
direction
Setting Paper Width and Printing Line Columns
Soft SW Setting Mode
Space between
characters
Printing line
columns
Full columns
Number of col. Font Select
40/33
9Ω9 dots 3 dots 30 columns
360 dots
7Ω9 dots 3 dots 36 columns
42/35
9Ω9 dots 2 dots 32 columns
7Ω9 dots 2 dots 40 columns
Soft SW Setting Mode
Space between
characters
Printing line
columns
Full columns
Number of col. Font Select
40/33
9Ω9 dots 3 dots 25 columns
300 dots
7Ω9 dots 3 dots 30 columns
42/35
9Ω9 dots 2 dots 27 columns
298 dots
7Ω9 dots 2 dots 33 columns
