Chapter5
Appendixes

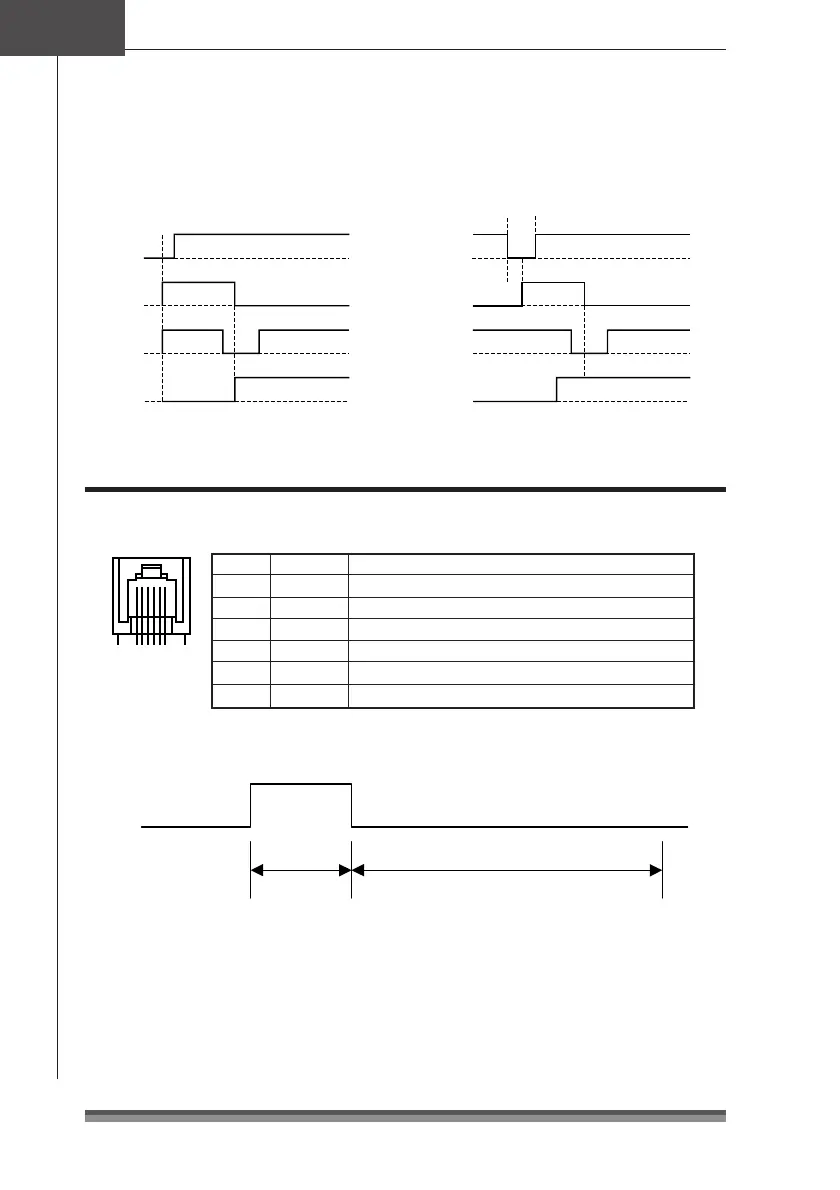

Timing when power is on INIT signal timing
∗RESET
A
B
SELECT
BUSY
∗ACK
∗INT
∗FAULT
BUSY
∗ACK
A : More than 16µs
B : Less than 200µs
Drawer Kick-Out Interface
Pin assignment
PIN No. Direction Function
1 – Frame GND
2 Output Drawer Kick-out Signal 1
3 Input Drawer Open/Close
4 – +24V
5 Output Drawer Kick-out Signal 2
6 – Signal GND
61
Note:
• T2 (when OFF) ≥ T1 (when ON) Ω4 is satisfied.
• The maximum amperage at +24V is up to 1A. When connected to one that exceeds
1A, the printer and connected equipment may be damaged.
T1 x 2ms
When ON
T2 x 2ms
When OFF
The ESC pm t1 t2 commands select either Drawer Kick-out Signal 1 or 2 to set the
pulse time.
Parallel (IEEE1284) Interface
