Citizen CL-S621 User Manual

13
Setup
3
2
5
6
7
4
1

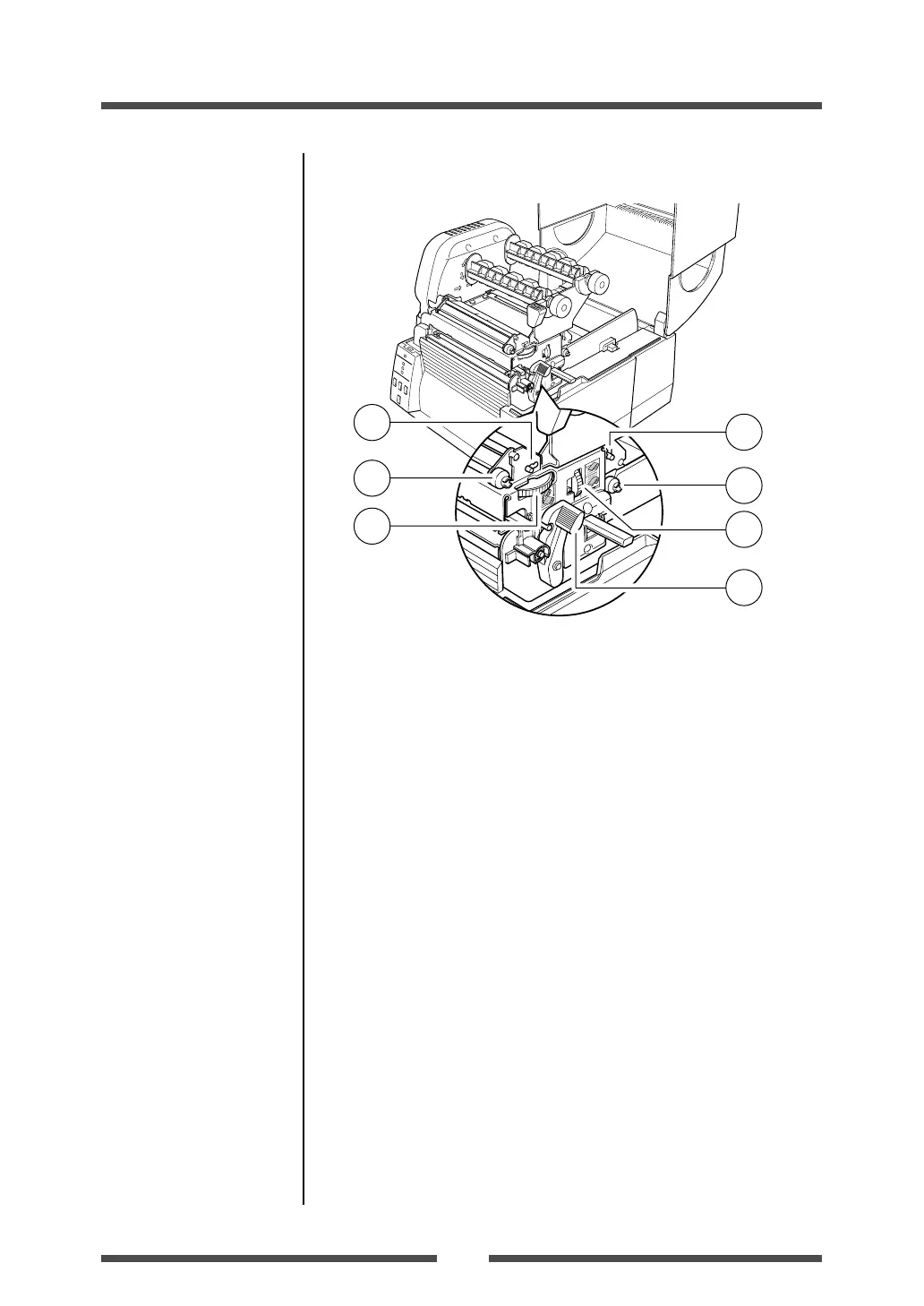

Part Names and Functions
1 Front (winding side) ribbon tension adjustment knob
This is adjusted according to the width of the ribbon that is used. It is
also used when the ribbon is wrinkled or slips.
2 Front (winding side) ribbon left-right balance adjustment knob
It is used to perform an adjustment when the ribbon is wrinkled. Normally
set it to the center position.
3 Media width adjustment dial
It is adjusted to match the width of the media.
4 Back (feeding side) ribbon tension adjustment knob
This is adjusted according to the width of the ribbon that is used. Use it
basically in the same way as the front adjustment knob.
5 Back (feeding side) ribbon left-right balance adjustment knob
It is used to perform an adjustment when the ribbon is wrinkled. Normally
set it to the center position.
6 Media thickness adjustment dial
It is adjusted to match the thickness of the media.
7 Large blue-head open lever
The head unit can be raised to install media by pushing this lever.
It locks the head unit during printing.
Media Width Adjustment
(p.49)
Media Thickness Adjustment
(p.48)
Ribbon Tension Adjustment
(p.50)
Ribbon Balance Adjustment
(p.51)
Ribbon Tension Adjustment
(p.50)
Ribbon Balance Adjustment
(p.51)

Citizen CL-S621 Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 DPI
RS-232 ports	1
RS-232 interface	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Parallel, Wireless LAN
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows, XP, 2003, 2008, Vista, Windows 7
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Product color	Gray

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	270 mm
Weight	4500 g
