Printer Operation
22

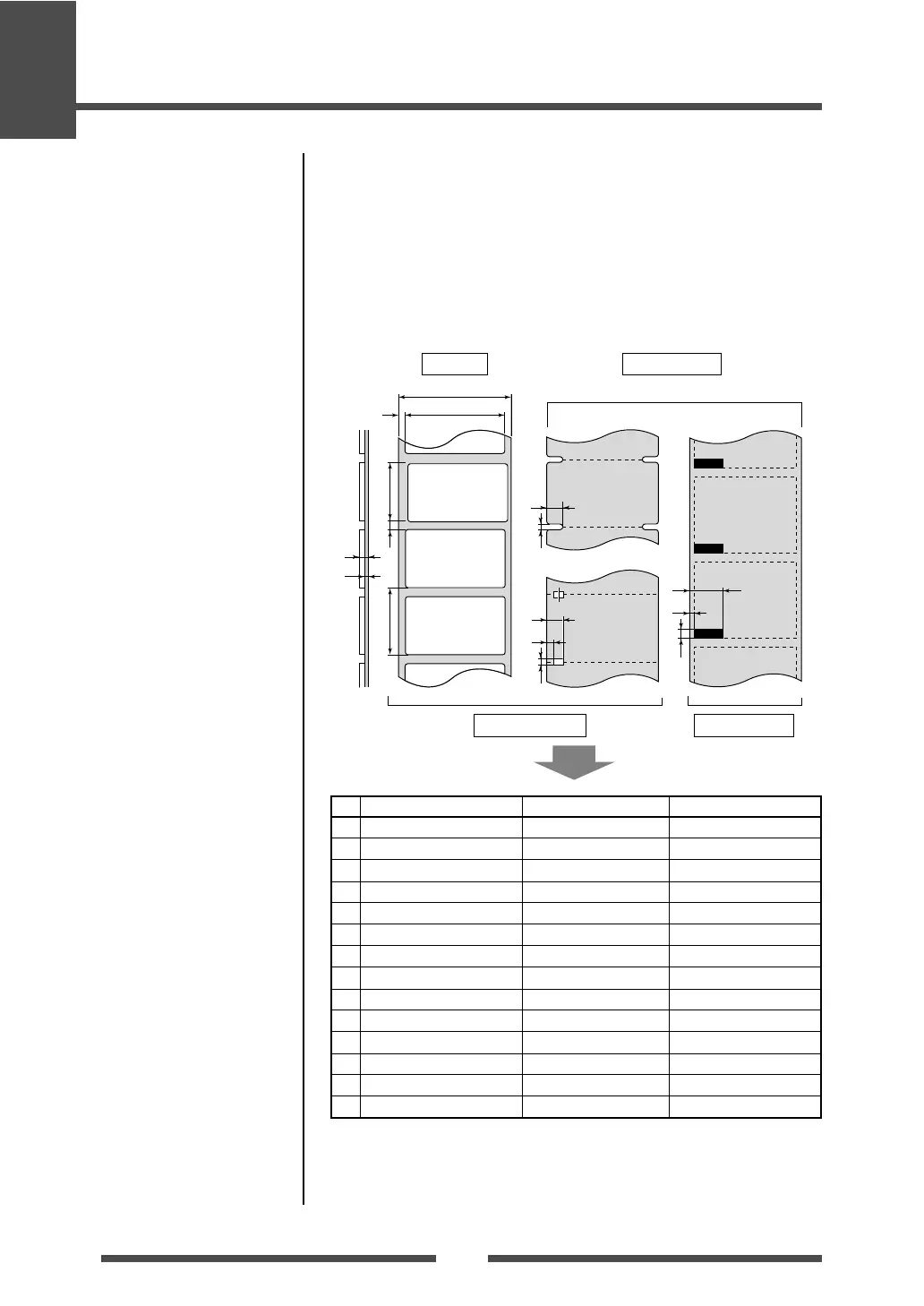

Setting the Media
Media Sizes
The position of label and tag media is sensed by either a transparent sensor
or a reflective sensor.
Transparent sensor: Detects the gaps between label media and notches of
tag media
Reflective sensor: Detects the black mark
* Use a transparent sensor for label media gaps and media with black marks.
* Use a transparent sensor for fan fold media.
* If the label pitch is 1 inch or less, set the Small Media Adjustment menu to ON and
match it to the label that uses the value of the Small Media Length menu.
A
C
I
I
G
H
D
KK
F E
B
J
L
N
M
Notch detection Black mark detection
Transparent sensor
Continuous media
Label
Label
Label
Printed area
Reflective sensor
Media direction
Label media
Menu Setting Table (p.36)
Min. value mm (inches) Max. value mm (inches)
A Label width 19.50 (0.77) 118.00 (4.65)
B Liner width 19.50 (0.77) 118.00 (4.65)
C Label left edge position 0 (0) 2.54 (0.10)
D
Length of gap between labels
2.54 (0.10) 812.8 (32.00)
E Label length 6.35 (0.25) 812.8 (32.00)
F Label pitch 6.35 (0.25) 812.8 (32.00)
GLiner thickness 0.06 (0.0025) 0.125 (0.0049)
HTotal media thickness 0.06 (0.0025) 0.25 (0.01)
I
Position of right edge of notch
3.60 (0.14) 60.80 (2.39)
J
Position of left edge of notch
0 (0) 57.20 (2.25)
KNotch length 2.54 (0.10) 17.80 (0.70)
L Right edge of black mark 15.00 (0.59) 66.50 (2.62)
M Left edge of black mark 0 (0) 51.5 (2.02)
N Black mark width 3.18 (0.125) 17.80 (0.70)
