Citizen CL-S621 User Manual

45
Printer Adjustments
Sensor Adjustments
The sensing level of both the transparent (see thru) and reflective sensors is
adjusted separately and independently. Firstly, the sensor type must be
selected either using the VuePrint menu system or the Sensor Method
Selection shown below. Then the adjustment and calibration of the sensor
can be made.

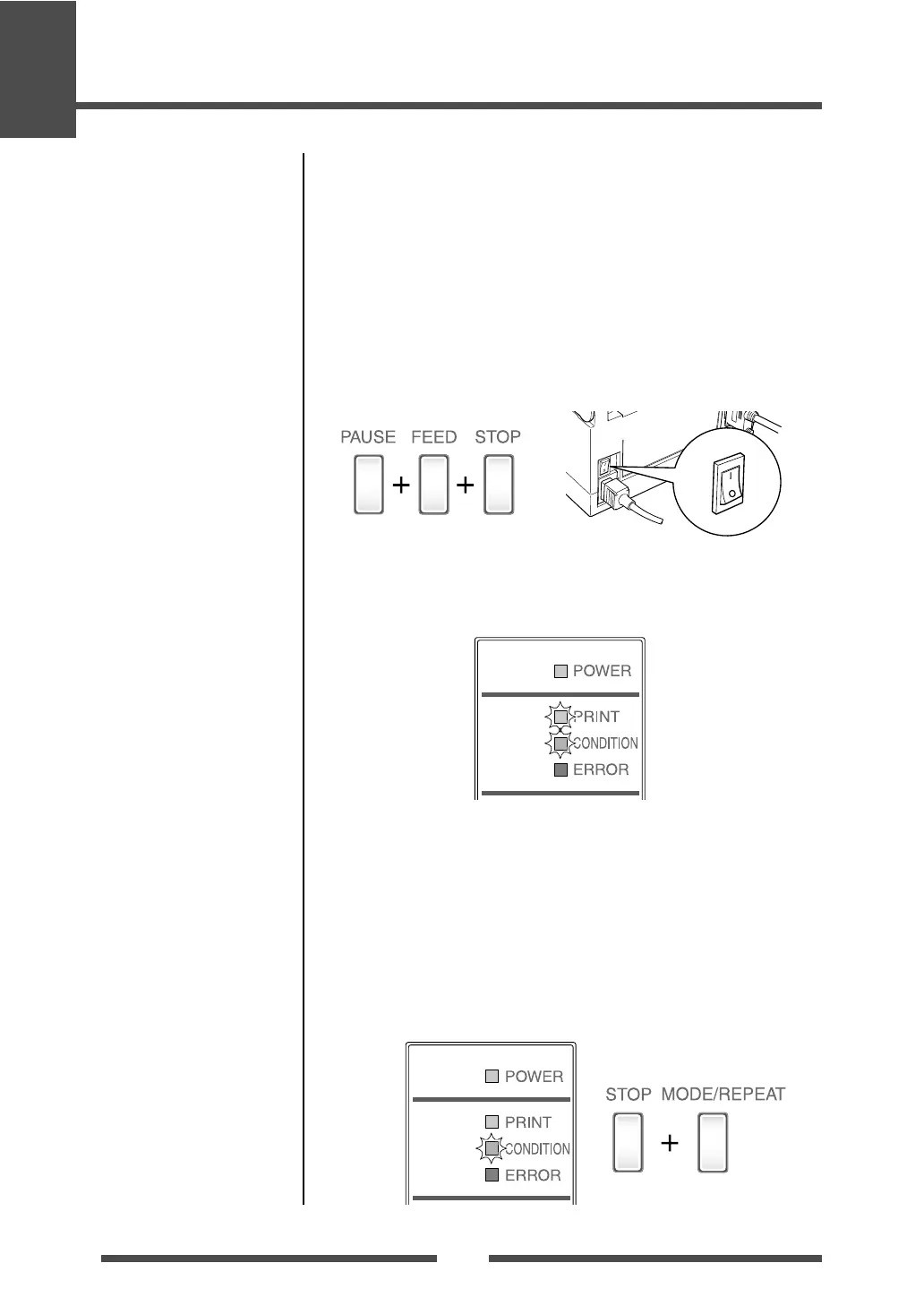

Entering Sensor Adjustment Mode
1. Turn on the power while pushing the PAUSE key, FEED key, and
STOP key simultaneously.
Power Switch
2. After the PRINT LED and CONDITION LED light up, release the
keys to change the printer to sensor adjustment setting mode.
Quick Sensor Selection Method
(Transparent ↔ Reflective)
To switch from transparent to reflective sensor, ensure the CONDITION LED
is lit then hold down the MODE/REPEAT key and then press the STOP key.
Each time you press the STOP key, you switch to back and forth between the
two sensor types.
If the transparent sensor is selected, the PRINT LED lights up and the buzzer
sounds once. If the reflective sensor is selected, the PRINT LED flashes
slowly and the buzzer sounds twice.
Installing the Media (p.24)
3
Printer Adjustments

Citizen CL-S621 Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 DPI
RS-232 ports	1
RS-232 interface	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Parallel, Wireless LAN
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows, XP, 2003, 2008, Vista, Windows 7
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Product color	Gray

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	270 mm
Weight	4500 g
