Citizen CL-S621 User Manual

25
Printer Operation

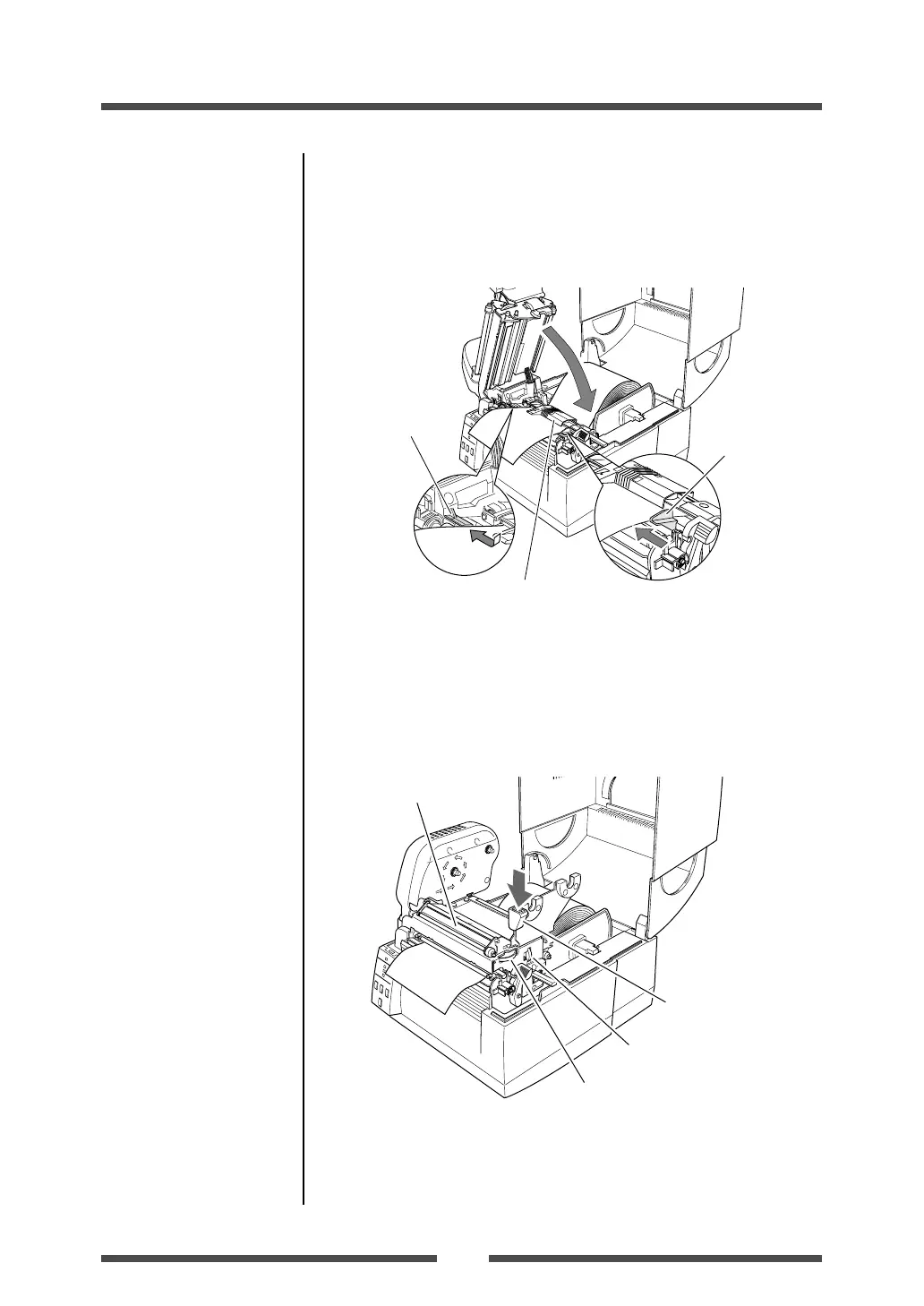

7. Align the media with the left fixed media guide, align the right
movable media guide with the media width, and lower the sensor
arm.
8. Push the head close knob to lower and lock the head unit. Be
sure to always push the head close knob to lock the head unit.
Align it with the width of the media that has been set, then set
the media width and media thickness adjustment dials.
See “Chapter 3 Printer Adjustments”.
Head close knob
Media width adjustment
Media thickness adjustment
Head unit
Fixed media guide
Sensor arm
Movable media
guide
9. With the power switched on, push the FEED key to feed the
media.
It will halt at the next print start position.
Media Thickness Adjustment
(p.48)
Media Width Adjustment
(p.49)
Setting the Media

Citizen CL-S621 Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 DPI
RS-232 ports	1
RS-232 interface	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Parallel, Wireless LAN
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows, XP, 2003, 2008, Vista, Windows 7
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Product color	Gray

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	270 mm
Weight	4500 g
