Citizen CL-S621 User Manual

47
Printer Adjustments
Adjusting the Reflective sensor

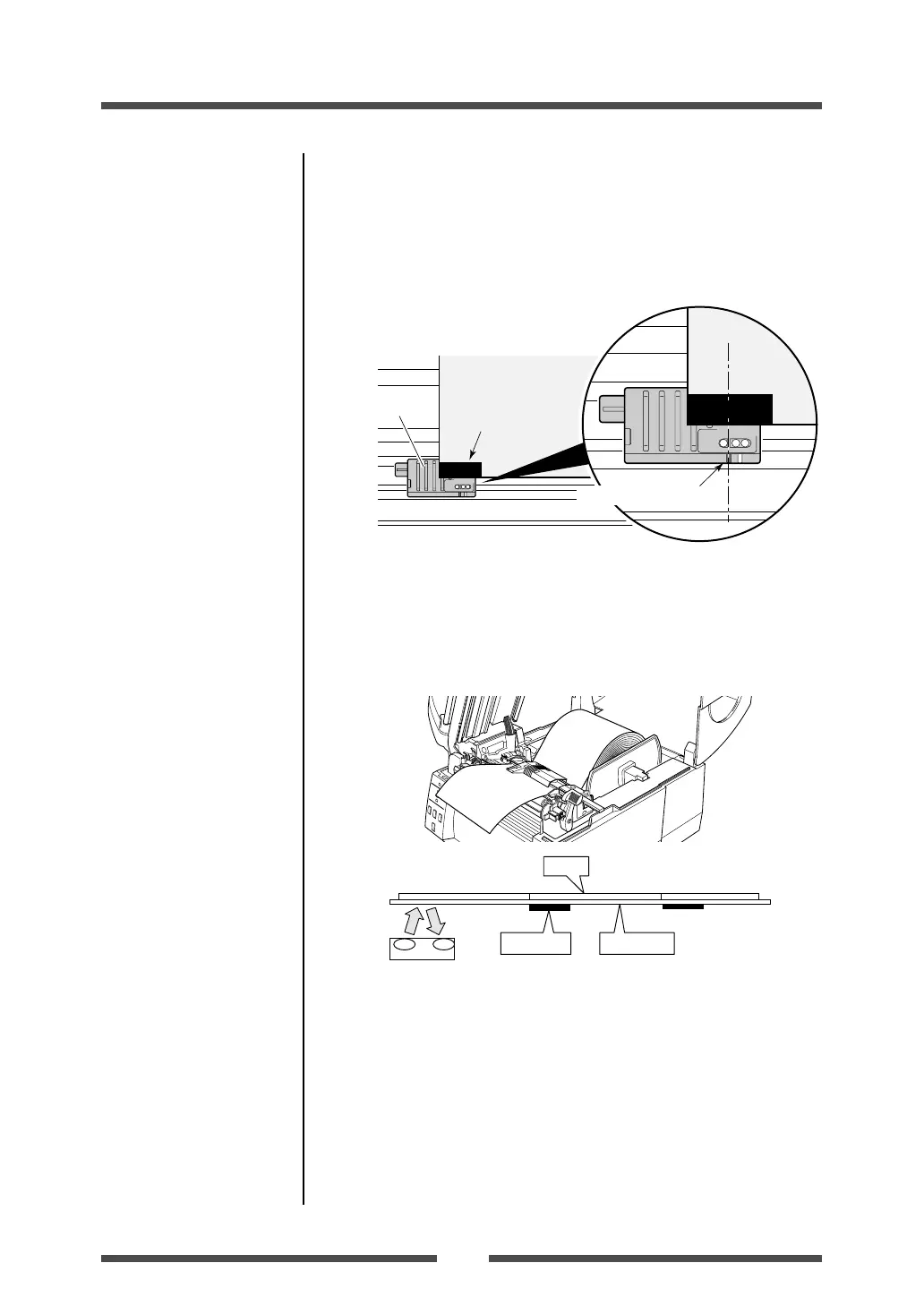

1. Open the printhead and the sensor arm, then align the position
of the sensor marker of the bottom sensor is at the center of
the black mark on the media.
Black mark
Media
Bottom sensor
Reflective sensor marker
Black mark
Black mark
Label
Liner media
Bottom sensor
4. If the PAUSE key is pressed and released while the MODE/
REPEAT key is pressed, PRINT LED goes off, the CONDITION
LED switches from lit to rapid flashing, media feeding starts,
and the sensor is automatically adjusted.
5. If automatic adjustment stops normally, the PRINT LED and
CONDITION LED return to their original status. If it does not
stop normally (adjustment impossible), the CONDITION LED
and ERROR LED flash.
6. If the STOP key is pushed, it exits sensor adjustment mode.
2. Select the reflective sensor.
3. With the reflective sensor selected, install the label media so
that it is between the platen roller and the media sensor.
(Be careful that black mark and media gap do not pass the media
sensor.) Then close the sensor arm and the printhead.
Sensor Adjustments
Quick Sensor Selection
Method
(Transparent ↔ Reflective)
(p.45)

Citizen CL-S621 Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 DPI
RS-232 ports	1
RS-232 interface	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Parallel, Wireless LAN
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows, XP, 2003, 2008, Vista, Windows 7
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Product color	Gray

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	270 mm
Weight	4500 g
