Chapter 1 Setup
Part Names and Functions
-1
-1
-2
-2
2
3
4
1
3
4
5
7
8
6
1

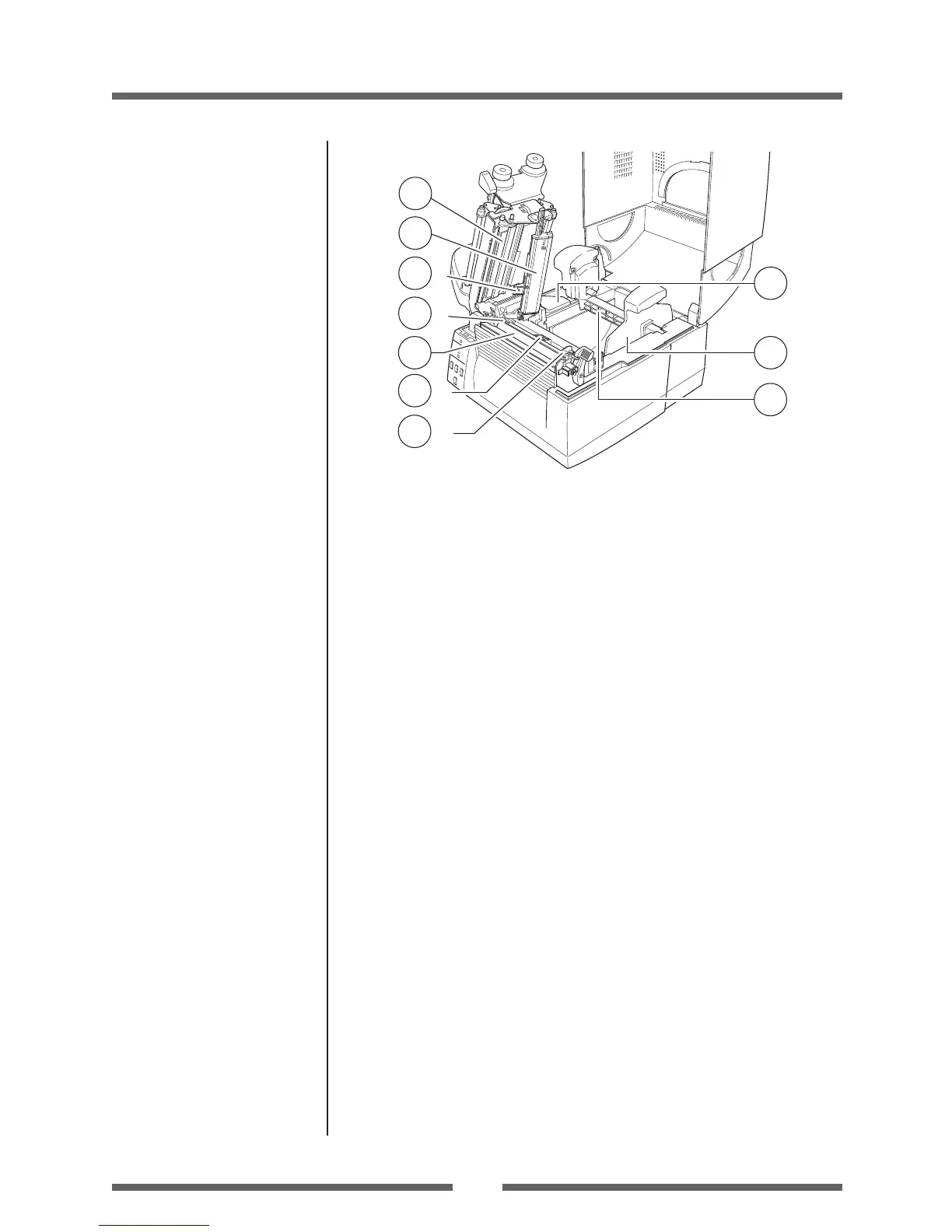

Thermal printhead
This is the printhead. Avoid touching this with your ngertips and
leaving grease or dirt on the printhead surface.
2
Sensor arm
The media can be installed by raising this arm.
The media can be held in place by lowering this arm.
3
Upper sensor (
3
-1) and bottom sensor (
3
-2)
Used as a transparent sensor or a reective sensor. Settings for sensor
position and sensor adjustment should be performed in accordance
with the type of sensor used.
4
Media guides (Left xed media guide (
4
-1) and right
movable media guide (
4
-2))
The end of the media is matched to the left xed media guide, then the
right side movable media guide is moved horizontally to match it to the
media size. And the movable media guide is used as a guide to match the
upper sensor and bottom sensor when using the transparent sensors.
5
Platen
Interlocked with the thermal printhead, it feeds media backwards or
forwards.
6
Optional unit connector cover
It is opened when the cables of the cutter unit and the peeler unit are
connected. Do not remove during normal use.
7
Media holder guide
This guide is moved horizontally to match the media size.
The guide can be sliding it from the holder bar.
8
Media holder bar
The media is supported by the media holder bar when installed in the
printer.
Setting sensor positions (p.24)
Sensor Adjustments (p.47)
Installing the Media (p.25)
