51
Chapter 3 Printer Adjustments

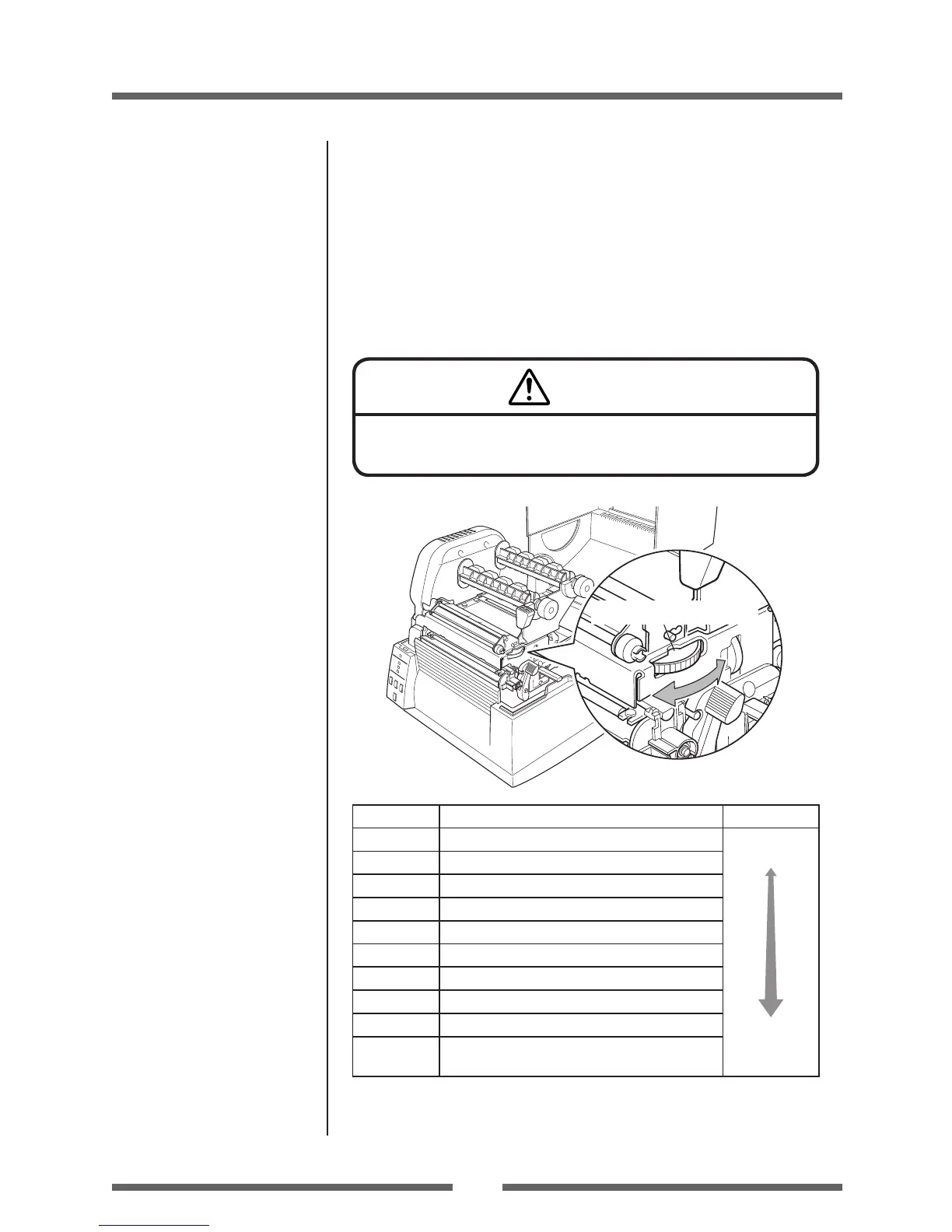

Media Width Adjustment
The head pressure varies according to the width of the media being printed.
The head pressure balance must be adjusted according to media width so
that constant head pressure is applied to the head. With this printer, it can
be adjusted easily by turning the media width adjustment dial.
If the printing is blurred or lightly printed on one side or the media moves
in a zigzag pattern adjust the head pressure balance.
After making an adjustment, conrm the output quality with a test print.
9
Media width adjustment dial
Dial position Media width mm (inches) Head pressure
0 50.0 to 62.0 mm (1.97 to 2.44)
Low
1 62.0 to 76.0 mm (2.44 to 2.99)
2 76.0 to 88.0 mm (2.99 to 3.46)
3 88.0 to 99.0 mm (3.46 to 3.90)
4 99.0 to 108.0 mm (3.90 to 4.25)
5 108.0 to 118.0 mm (4.25 to 4.65)
6 118.0 to 133.0 mm (4.65 to 5.24)
7 133.0 to 148.0 mm (5.24 to 5.83)
8 148.0 to 163.0 mm (5.83 to 6.42)
9
163.0 to 178.0 mm (6.42 to 7.01)
(setting when shipped)
The following values are criteria.
When using narrow media, be sure to MAKE this adjustment. (If you
do not, the head may be damaged by jamming, etc.)
Caution
Installing the Media (p.26)
Self Print Mode (p.32)
To Next Page
