Chapter 2 Printer Operation

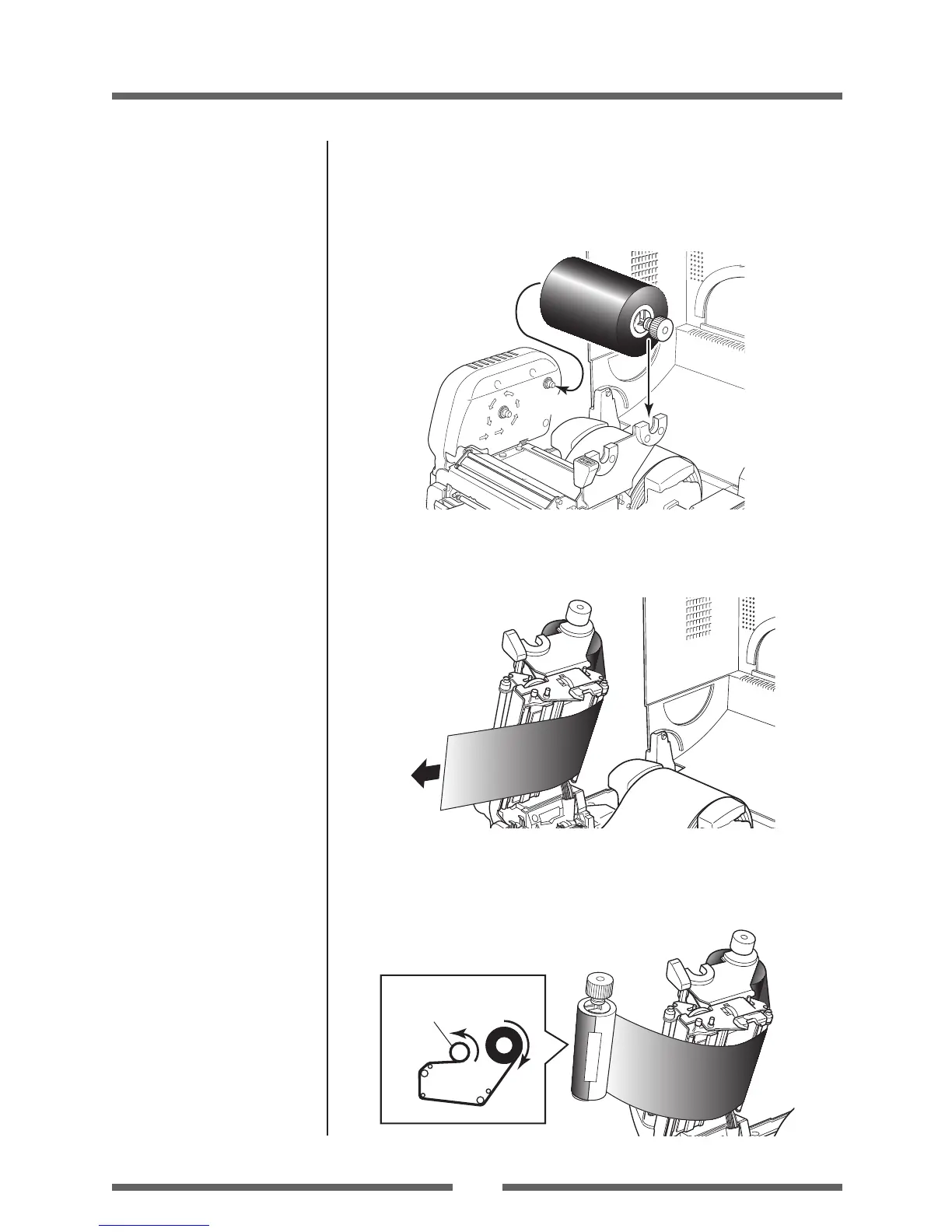

Setting the Ribbon
3. Install the unused ribbon and holder in to the rear ribbon
drive unit. The splines on the ribbon drive gear mechanism
engage with the end of the ribbon holder.
1
2
4. Push the large blue-head open lever to release the head
unit. Pull out the ribbon from the bottom of the head unit to
the ribbon winding side.
5. Using the adhesive leader of the ribbon or some adhesive
tape, x the ribbon that you have pulled out on the ribbon
holder on which the paper core has been set and wind it on
the ribbon holder.
Winding side
ribbon holder
Winding side
ribbon holder
