Citizen CL-S6621 - Adjusting the Transparent sensor

48
Chapter 3 Printer Adjustments
Sensor Adjustments
Installing the Media (p.24)
Quick Sensor Selection Method
(Transparent

Reective) (p.47)
Adjusting the Transparent sensor
1. Select the transparent sensor, and open the sensor arm.
2. Install only the liner media (label backing paper) with the
label media removed so that it will pass between the platen
roller and the media sensor. (Be careful that media with
black marks does not pass the media sensor.) Then close the
sensor arm and the printhead.

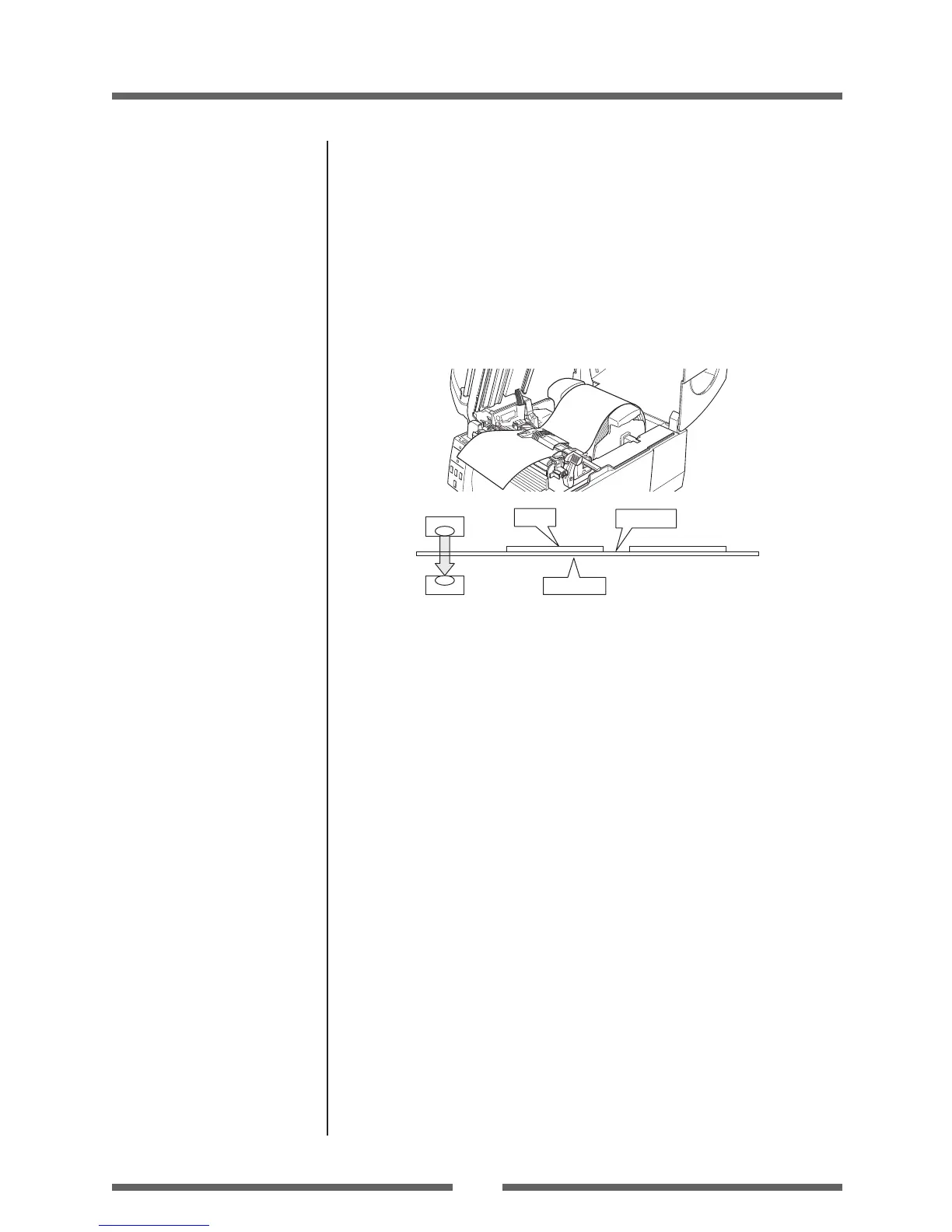

Label
Media gap
Bottom sensor
Upper sensor
Liner media
3. If the PAUSE key is pressed and released while the MODE/
REPEAT key is pressed, the PRINT LED goes o, after the
CONDITION LED switches from lit to rapid ashing, media
feeding starts, and the sensor is automatically adjusted.
4. If automatic adjustment stops normally, the PRINT LED and
CONDITION LED return to their original status. If it stops
abnormally (adjustment impossible), the CONDITION LED
and ERROR LED ash.
5. If the STOP key is pushed, it exits sensor adjustment mode.
