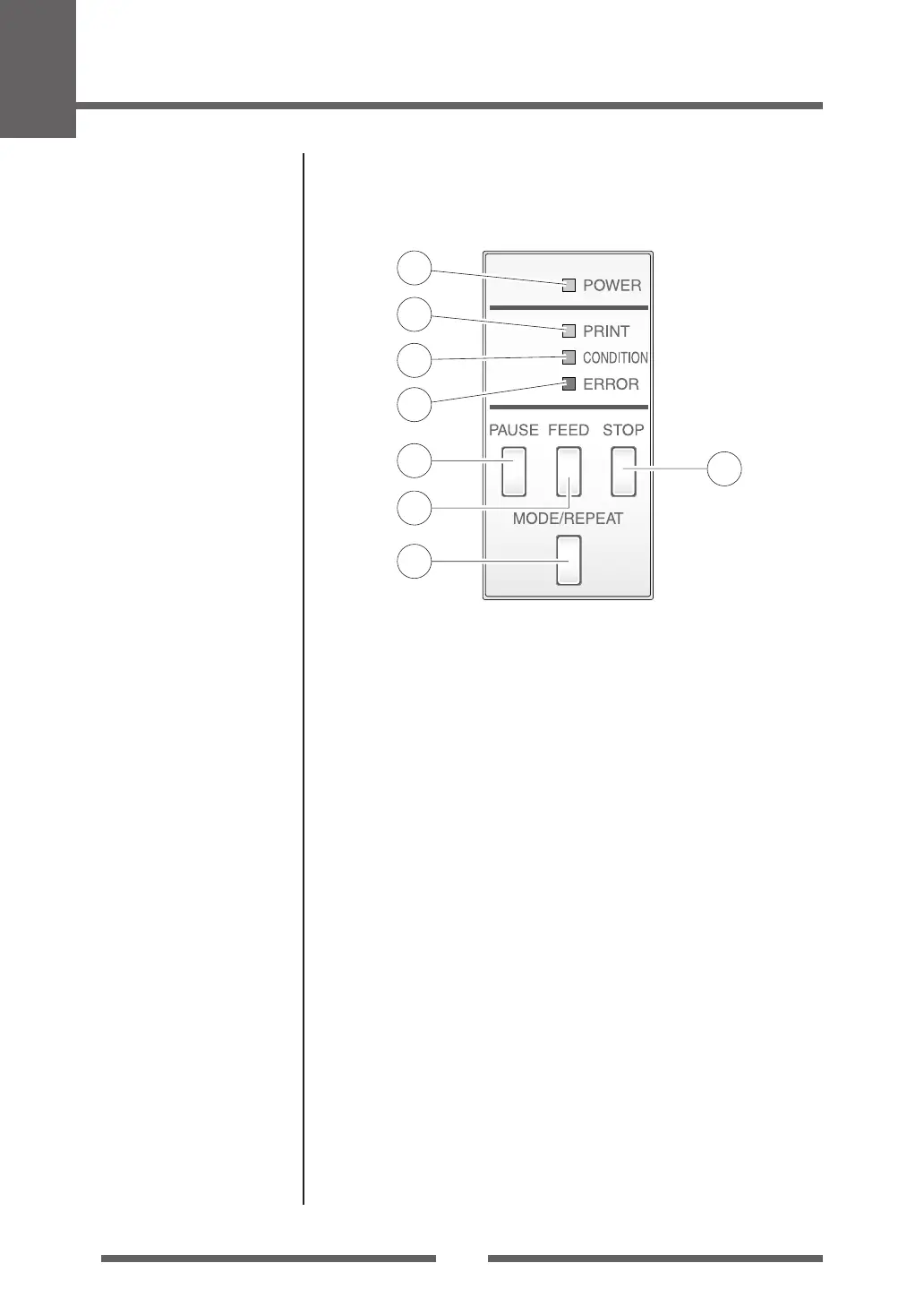

Part Names and Functions
Operation Panel
1
2
3
4
5
6
8
7
1 POWER LED
This is lit when the printer power is on. (green)
2 PRINT LED
This is lit when the printer is able to print. (green)
3 CONDITION LED
This is on when selecting settings. (orange)
4 ERROR LED
This is lit or flashes when the printer is in an alarm or error status. (red)
5 PAUSE key
This temporarily stops printing.
6 FEED key
This key feeds the media to the top of the next label or form.
7 STOP key
This stops printing or cancels the alarm.
8 MODE/REPEAT key
This key exits current status in the menu setting mode or reprints the
final label, depending on printer status.
LED Functions (p.20)
