Citizen CLP-521 User Manual

17
Setup
Connection to a Computer
This product has three interfaces that can be used to receive printing data: a
serial port (RS232C), parallel port (IEEE1284), and a USB port (USB1.1).
An optional internal Ethernet (LAN) or Wireless LAN (WiFi) port can be added
by your dealer.
With the exception of a wireless LAN connection, an interface cable is
necessary to connect the printer to a computer.
To connect the cable, proceed as follows:
1. Turn OFF both power switches of the printer and the computer.
2. Connect one end of the interface cable to the interface connector
on the back of the printer and secure it with locks or locking
screws, where available.
3. Connect the other end of the interface cable to the interface
connector on the computer and secure it with locks or locking
screws, where available.

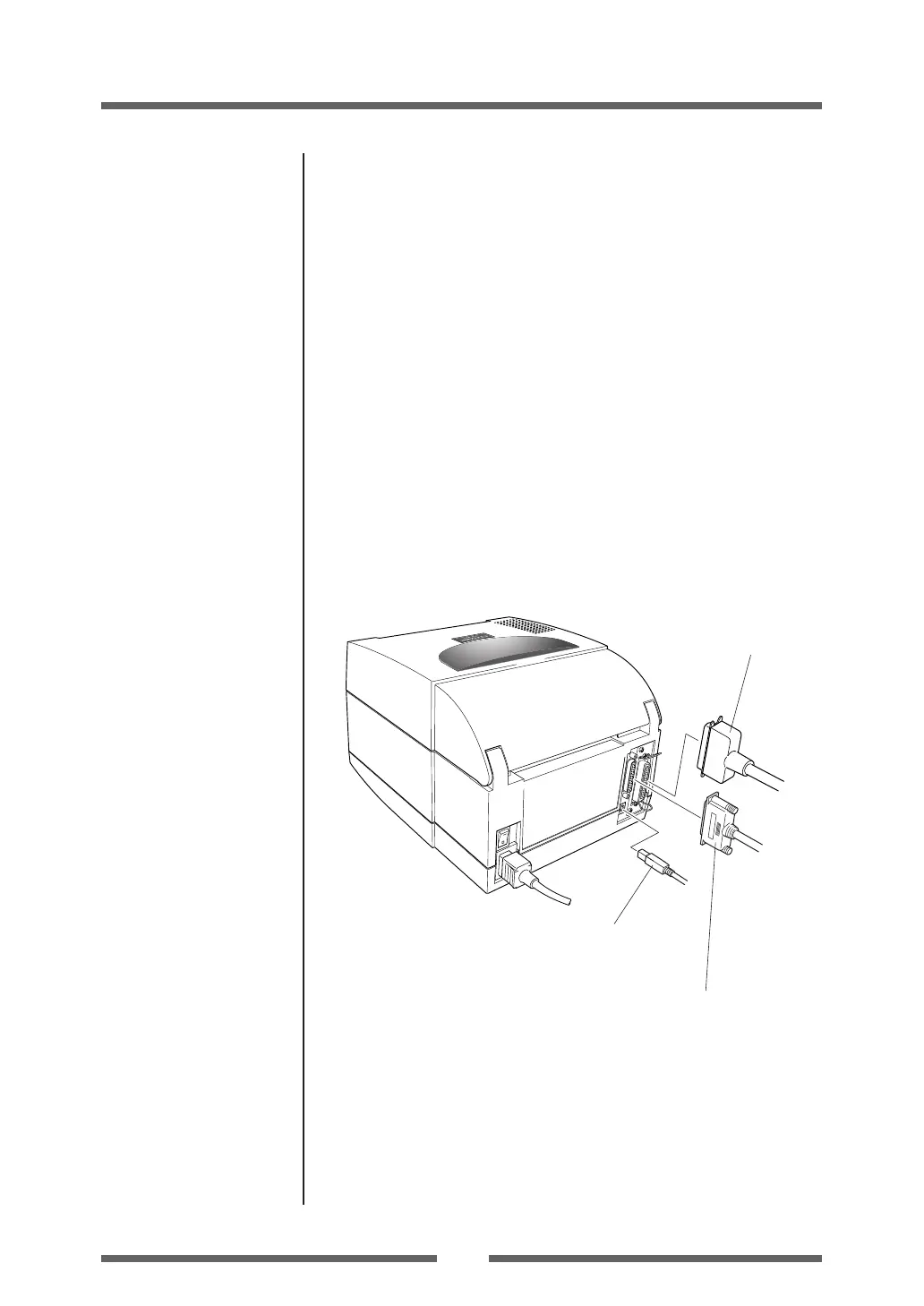

Serial Interface Cable
USB Interface Cable
Parallel Interface Cable
Note: If the optional Ethernet or wireless LAN port is used, the standard
parallel port is removed from the printer, so the parallel interface cannot
be used.
Serial interface (p.45)
Parallel Interface (p.47)
USB Interface (p.50)
Replacing the Interface
Board (p.51)

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
