Printer Operation
22
Media holder bar
Media holder guide
Large blue-head open lever
2. Firstly, slide the two black plastic parts of the media holder
assembly together. Ensure correct alignment of the guide with
the bar as it can only be installed in one direction.
3. Slide the roll of media over the media bar. The media guide
must be on the right side of the roll of media (as viewed from
the front of the printer) with the flat surface of the media guide
touching the roll.

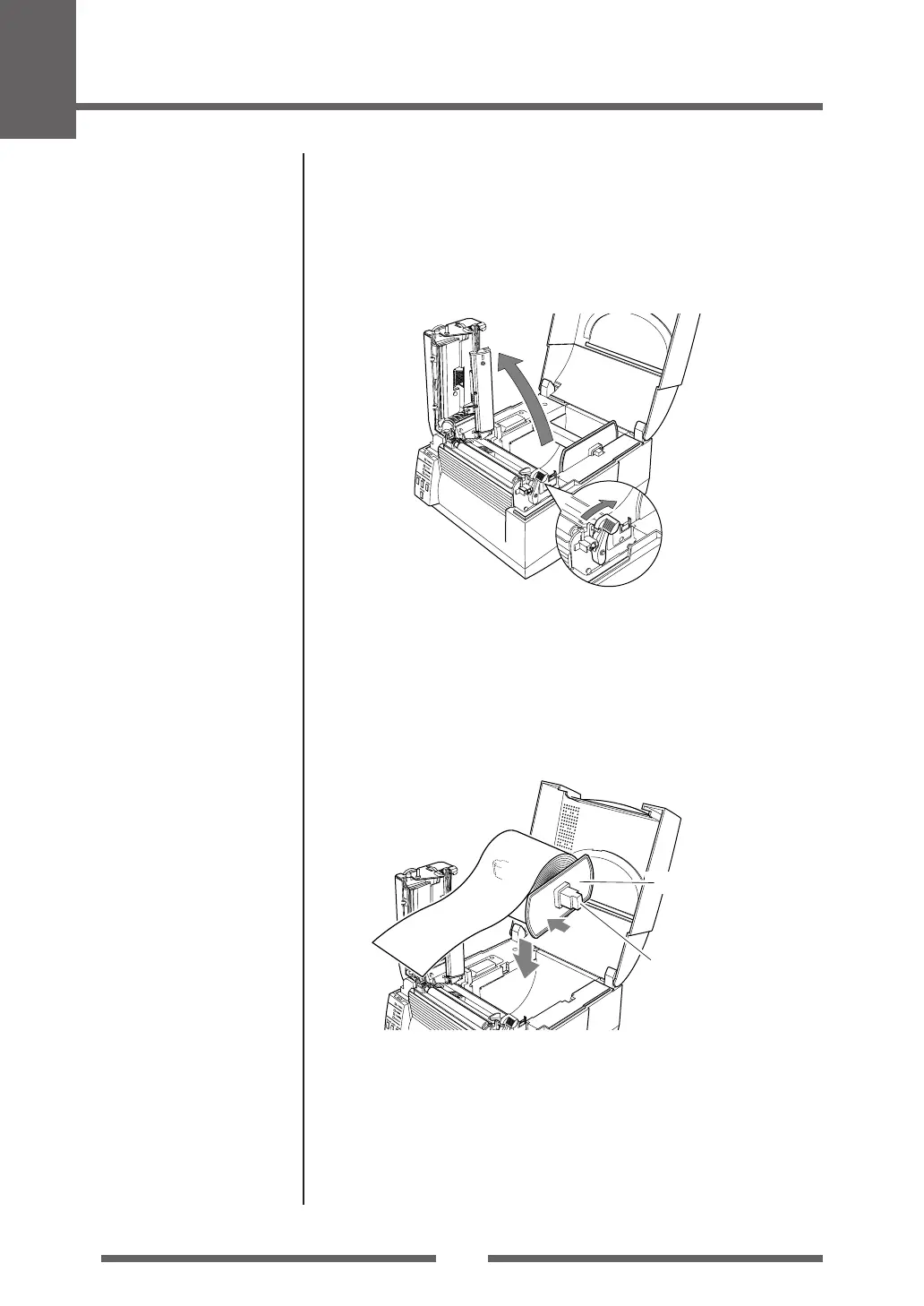

Installing the Media
1. Push the large blue-head open lever to release the head unit
and sensor arm. It can be opened to the position shown below
by lifting the head unit by hand.
Media Sizes (p.21)
Setting the Media
4. Set the media roll and media holder in to the printer as shown
above. It is advisable to pull a length of media forwards and
through the mechanism ready for later positioning.
5. Move the media roll so it is touching the leftside of the housing.
Then slide the black media guide so it is touching the media on
the right side. Do not try to hold the media too tightly with
these guides as it will cause the printer to jam during printing.

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
