Citizen CLP-521 User Manual

13
Setup
12
15
14
17
-1
16
-1
14
-2
16
-2
13

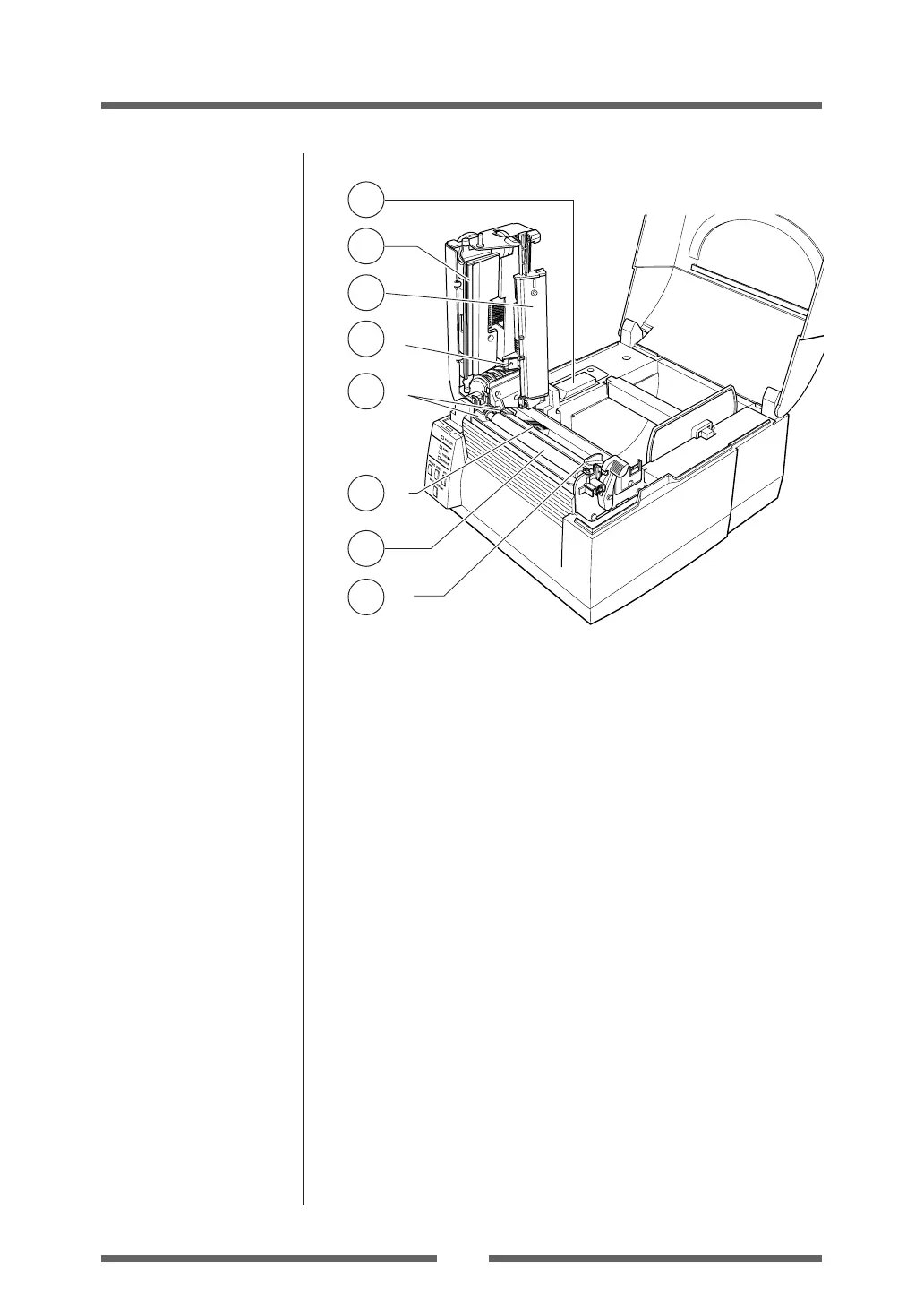

Part Names and Functions
= Thermal head
This is the printhead. Avoid touching this with your fingertips and leaving
grease or dirt on the printhead surface.
~ Platen
Interlocked with the thermal head, it feeds media backwards or forwards.
! Upper sensor (!-1) and bottom sensor (!-2)
When used as a transparent sensor (for labels and tags with notches), it
is used by matching the sensor markings of the upper sensor and the
bottom sensor. When used as a reflective sensor, it is used by matching
the sensor marking on the bottom sensor with the position of the black
mark on the liner or media backing.
@ Sensor arm
The media can be installed by raising this arm.
The media can be held in place by lowering this arm.
# Media guides
(Left fixed media guide (#-1) and right movable media guide (#-2))
The end of the media is matched to the left fixed media guide, then the
right side movable media guide is moved horizontally to match it to the
media size.
$ Optional unit connector cover
It is opened when the cables of the cutter unit and the peeler unit are
connected. Do not remove during normal use.
Setting sensor positions
(p.23)
Sensor Adjustments (p.34)
Media Setting (p.24)

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
