Printer Operation
24

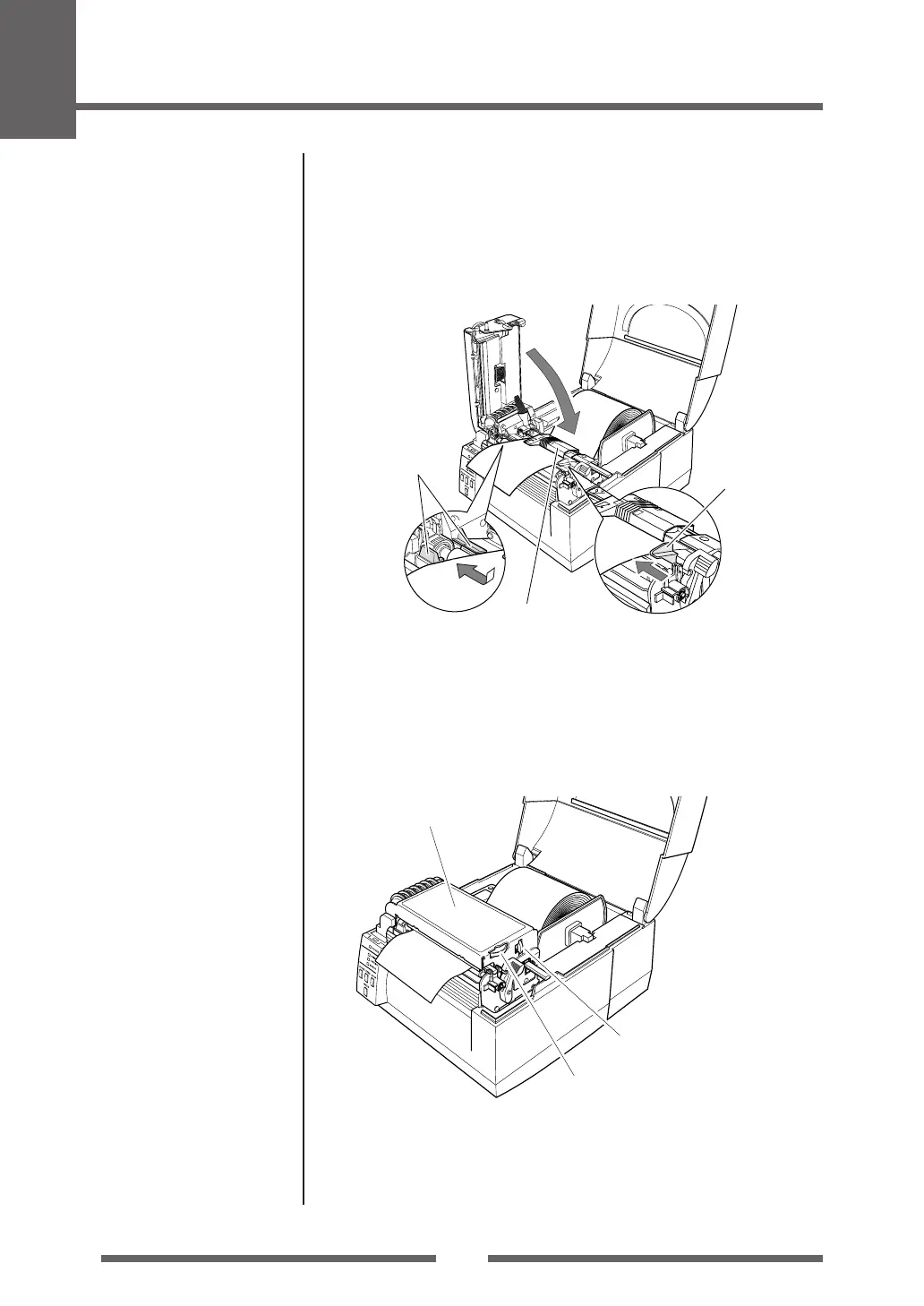

7. Align the media with the left fixed media guide (2 locations),
align the right movable media guide with the media width, and
lower the sensor arm.
8. Lower and lock the head unit. Align it with the width of the
media that has been set, then set the media width and media
thickness adjustment dials.
See “Chapter 3 Printer Adjustments”.
Media width adjustment
Media thickness adjustment
Head unit
Fixed media guide
Sensor arm
Movable media
guide
9. With the power switched on, push the FEED key to feed the
media.
It will halt at the next print start position.
Media thickness Adjustment
(p.37)
Media Width Adjustment
(p.38)
Setting the Media

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
