Citizen CLP-521 User Manual

23
Printer Operation

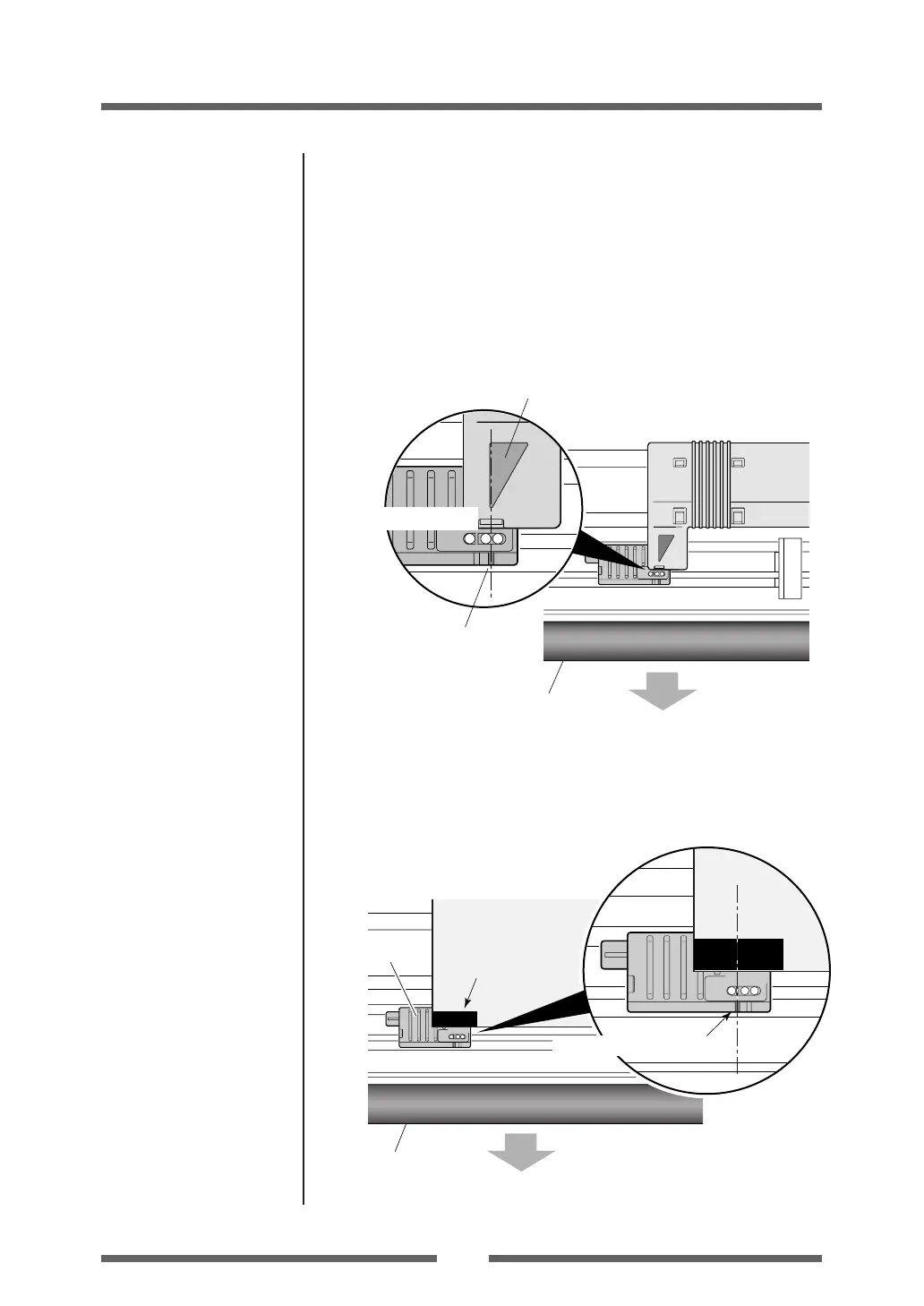

6. Setting sensor positions.
When using a transparent sensor
Move the bottom sensor close to the center of the width of the media
then align the upper sensor marker and the bottom sensor marker.
When using media that is 4 inches wide, position the upper sensor and
the bottom sensor all the way to the right (head open lever side).
Upper sensor
Bottom sensor
Transparent sensor marker
Upper sensor marker
Front
Aligned with the marker
Platen
When using a reflective sensor
Adjust the position of the sensor so that the reflective sensor marker of
the bottom sensor is at the center of the black mark of the media as
shown below.
Front
Black mark
Media
Bottom sensor
黒線
Reflective sensor marker
Black mark
Platen
Sensor Selection Method
(Transparent ↔ Reflective)
(p.34)
Adjusting the Transparent
sensor (p.35)
Adjusting the Reflective
sensor (p.36)
Setting the Media

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
