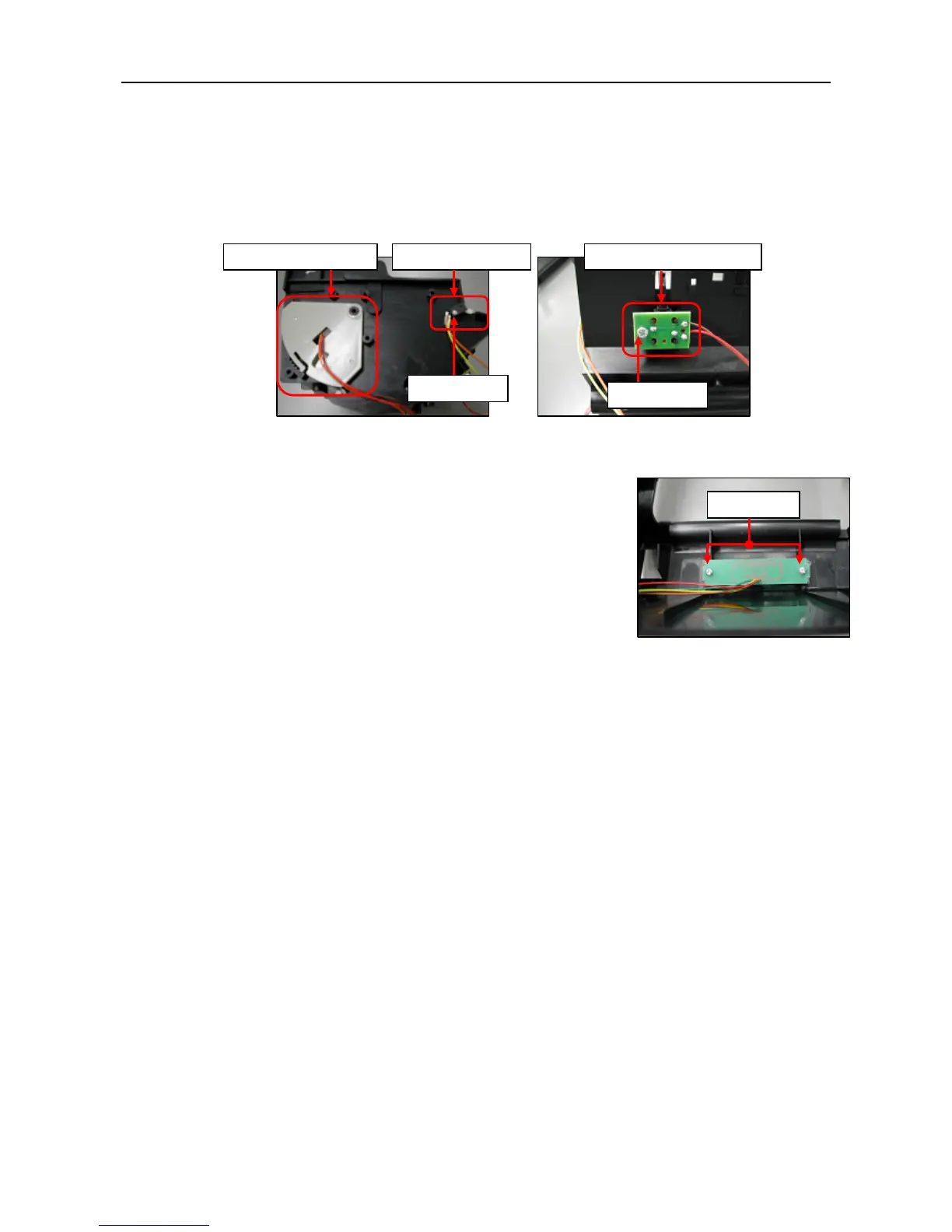

1.2.5 Disassembling HOLDER, PAPER
1. Remove UNIT, PNE SENSOR.
2. Remove M1.7x7 (BT) screw and detach SW, COVER OPEN.
3. Remove M2.6x6 (BT) screw and detach SA, SUB PCB, PE SENSOR.
4. Remove SHAFT, PAPER ROLLER (4 pieces)
1.2.6 Disassembling OPE-PANE
1. Remove two M3x10(BT) screws and detach SA, PCB,
OPE-PANE from CASE.
2. Remove CONDUCTOR, LED.
1.3 Reassembly Procedure
Reverse the procedure in “1.2 Disassembly Procedure”.
UNIT, PNE SENSOR SW, COVER OPEN
M1.7x7 (BT)
SA, SUB PCB, PE SENSOR
M2.6x6 (BT)
M3x10 (BT)
