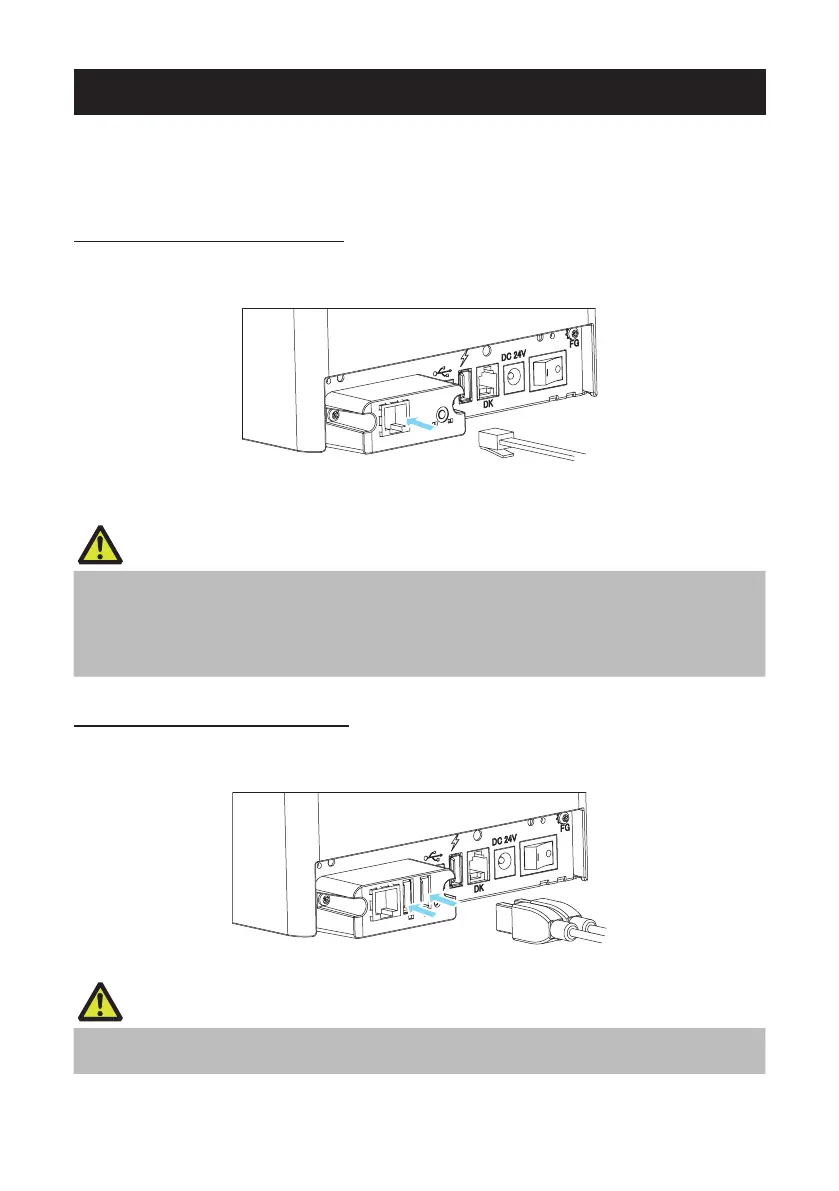

3.6 Ethernet (LAN)/Wireless LAN Interface Board
This section provides an overview of the interface board. For details on this board, in-
cluding explanations about the USB host function and XML peripheral device support,
refer to the separate manual.
Connecting the Interface Cable
1. Turn off the power.
2. Conrm the orientation of the interface cable and connect it to the port.
3. Connect the other connector to a hub, router, or similar device.
CAUTION
 When disconnecting the cable, always hold the connector.
 Place the interface cable so that people do not trip on it.
 Do not connect multiple interfaces at the same time.
 Hold the connector of the LAN cable perpendicular and straight when connecting or discon-
necting it. Doing it at an angle may cause the connector to misconnect.
Connecting a Peripheral Device
1. Turn off the power.
2. Connect the cable of a peripheral device to this port.
CAUTION
A peripheral device cannot be controlled if it is connected to the USB power supply port.
Be sure to connect it to the USB port of the interface board.

Citizen CT-S4500 Specifications

General

Cutter	Yes
Certification	CE, UL, C-UL, FCC, VCCI
Internal memory	0.384 MB
Built-in barcodes	CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, PDF417, QR Code, UPC-A, UPC-E
Page description languages	ESC/POS
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Serial interface	No
Optional connectivity	Bluetooth, Ethernet, Serial (RS-232), USB 2.0, Wireless LAN
Connectivity technology	Wired
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum roll diameter	102 mm
Supported paper width	58 - 112 mm
Maximum printing width	104 mm
Printing media thickness	65 - 150 µm
Product color	Black
Character sets	852, 857, 863, 864, 866, Katakana, Thai code 18, WPC1252
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Mobile operating systems supported	Android, iOS
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1

Weight and Dimensions

Depth	216 mm
Width	170 mm
Height	151 mm
