Citizen CT-S651 Series

CT-S651 Series Service Manual
- 19 -

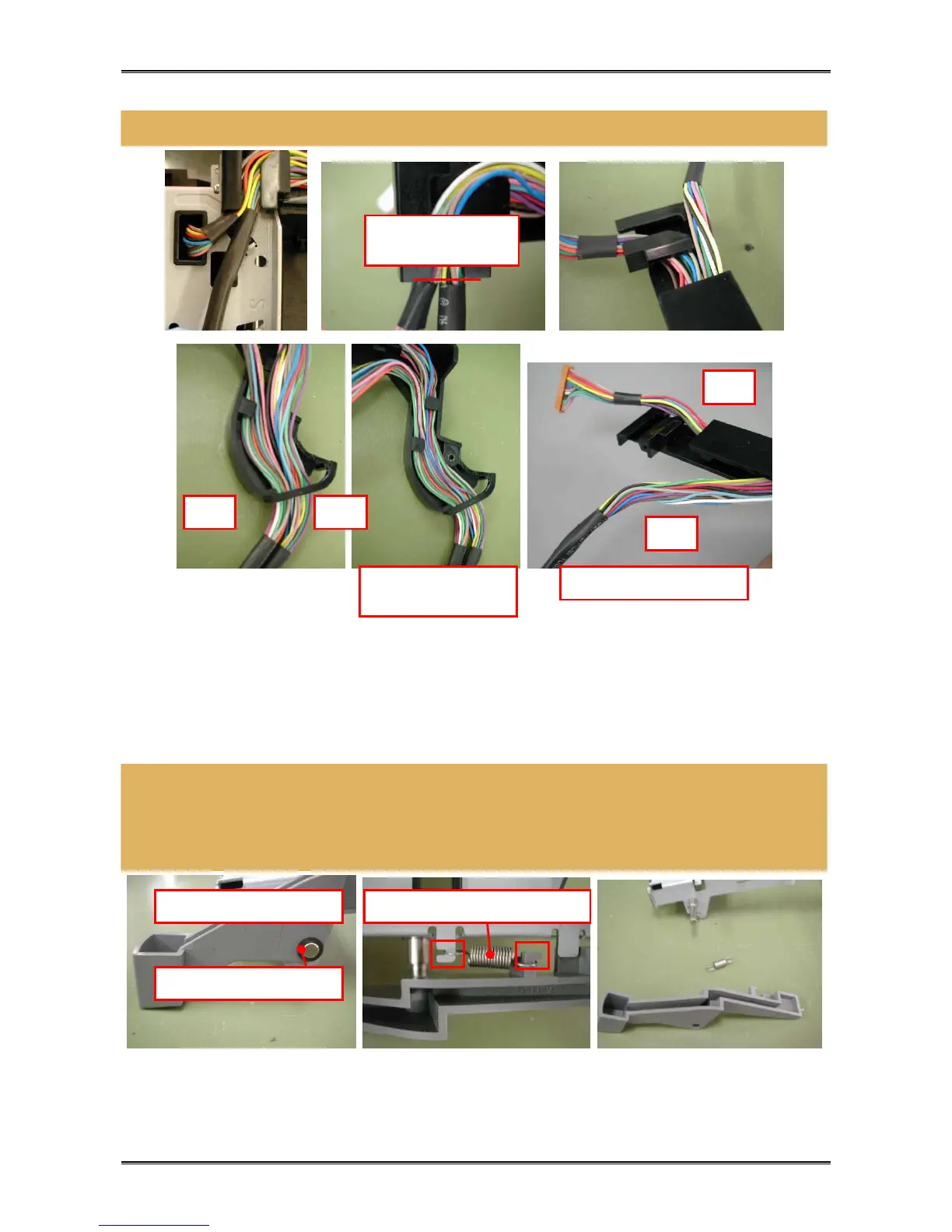

Remove “SA, HEAD CABLE-02” from “COVER, CABLE-02”.
<Precaution at reassembly>
When reassembling, insert long cables into the left side of “SA, HEAD CABLE-02” at first, and then short
ones into the right side.
Insert “CABLE” into the inside under the hooks. At the top of “COVER, CABLE-02”, route the short cables to
the back and long ones to the front. Adjust the length of the tube to align its end with the edge at “COVER,
CABLE-02”.
9. Disassembling “KNOB, COVER OPEN-02”
Remove “POLYSLIDER, KNOB-02” that fastens “SA, FRAME COVER UNIT-02” and “KNOB, COVER
OPEN-02”, pull “KNOB, COVER OPEN-02” out from the shaft, and detach “SPRING, COVER OPEN
KNOB-02” from “SA, FRAME COVER UNIT-02”.
<Precaution at reassembly>
When reassembling, attach the spring to the hooks and insert it into the shaft at “SA, FRAME COVER
UNIT-02”.
Check the position of
the tube end.
Long Short
Insert long cables first
and short ones next.
Top of “COVER, CABLE-02”
Short
Long
KNOB, COVER OPEN-02
POLYSLIDER, KNOB-02
SPRING, COVER OPEN KNOB-02
