Citrix ADC MPX
The T1300 appliance has the following ports:
• Two 10/100/1000BASE-T, RJ45 management plane ports
• One 10/100BASE-T, RJ-45 LOM port
• 32 10GBASE-X SFP+ data plane ports (T1300-10GE)
• Four 40G QSFP+ data plane ports (T1300-40GE)
• 16 10GBASE-X SFP+ data plane ports (T1300-40GE)

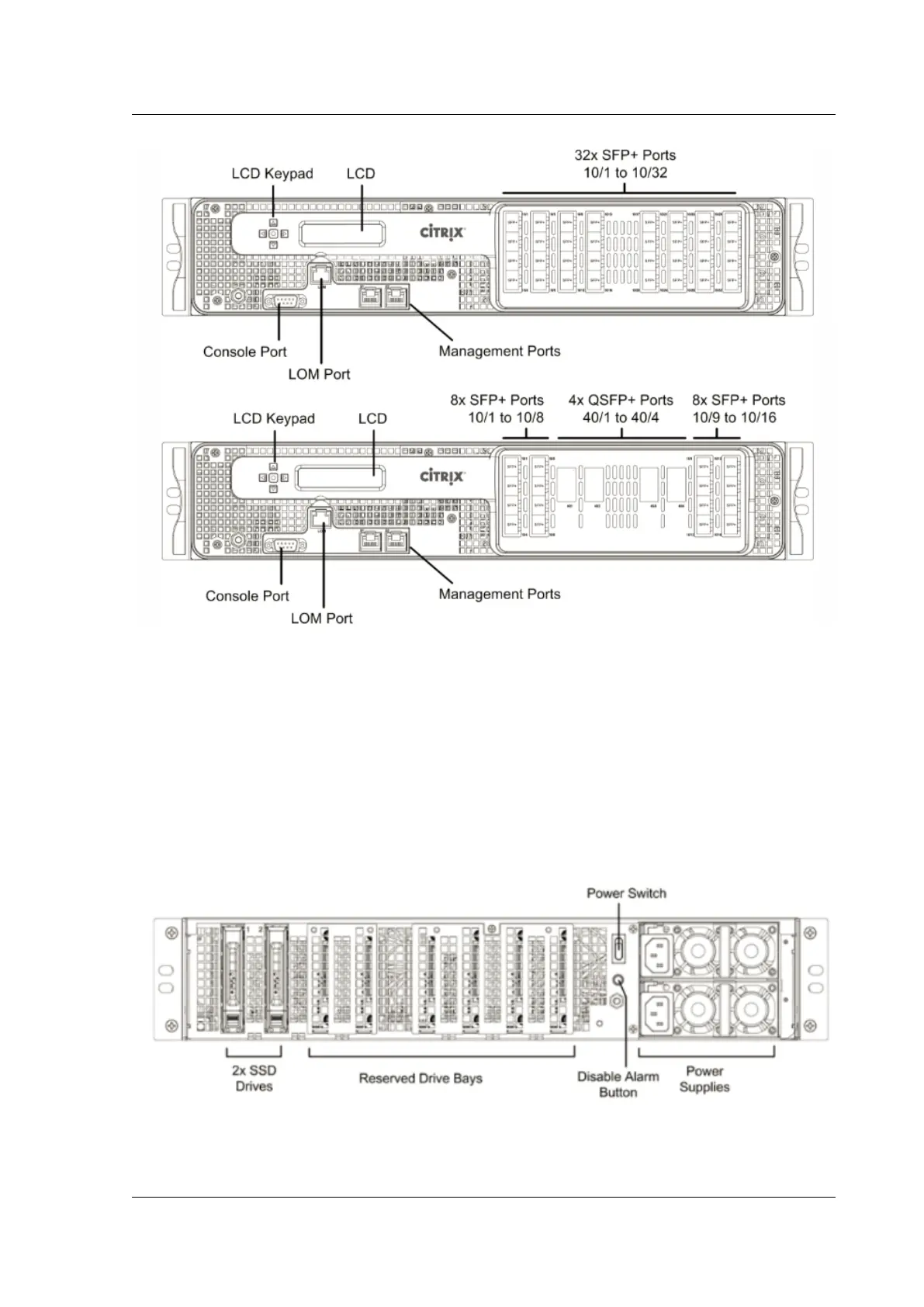

The following figure shows the back panel of the T1300 appliance.
Figure 2. Citrix ADC T1300 back panel
The following components are visible on the back panel of the T1300 appliance:
© 1999‒2022 Citrix Systems, Inc. All rights reserved. 104

Citrix ADC MPX 5550 Specifications

General

Brand	Citrix
Model	ADC MPX 5550
Category	Network Hardware
Language	English
