Citrix ADC MPX
Citrix ADC MPX 26000-100G
September 19, 2022
The Citrix ADC MPX 26000-100G and MPX 26000T-100G appliances are 2U appliance. These appliances
have two 14-core processors and 256 GB of memory. The appliances providea total of 8 network ports:
Four cards with dual 100G SFP+ Ethernet Ports.
For information about the soware releases supported on the Citrix ADC hardware platforms, see Cit-
rix ADC MPX hardware soware compatibility matrix.
The following figure shows the front panel of the Citrix ADC MPX 26000-100G and Citrix ADC MPX
26000T-100G appliances.

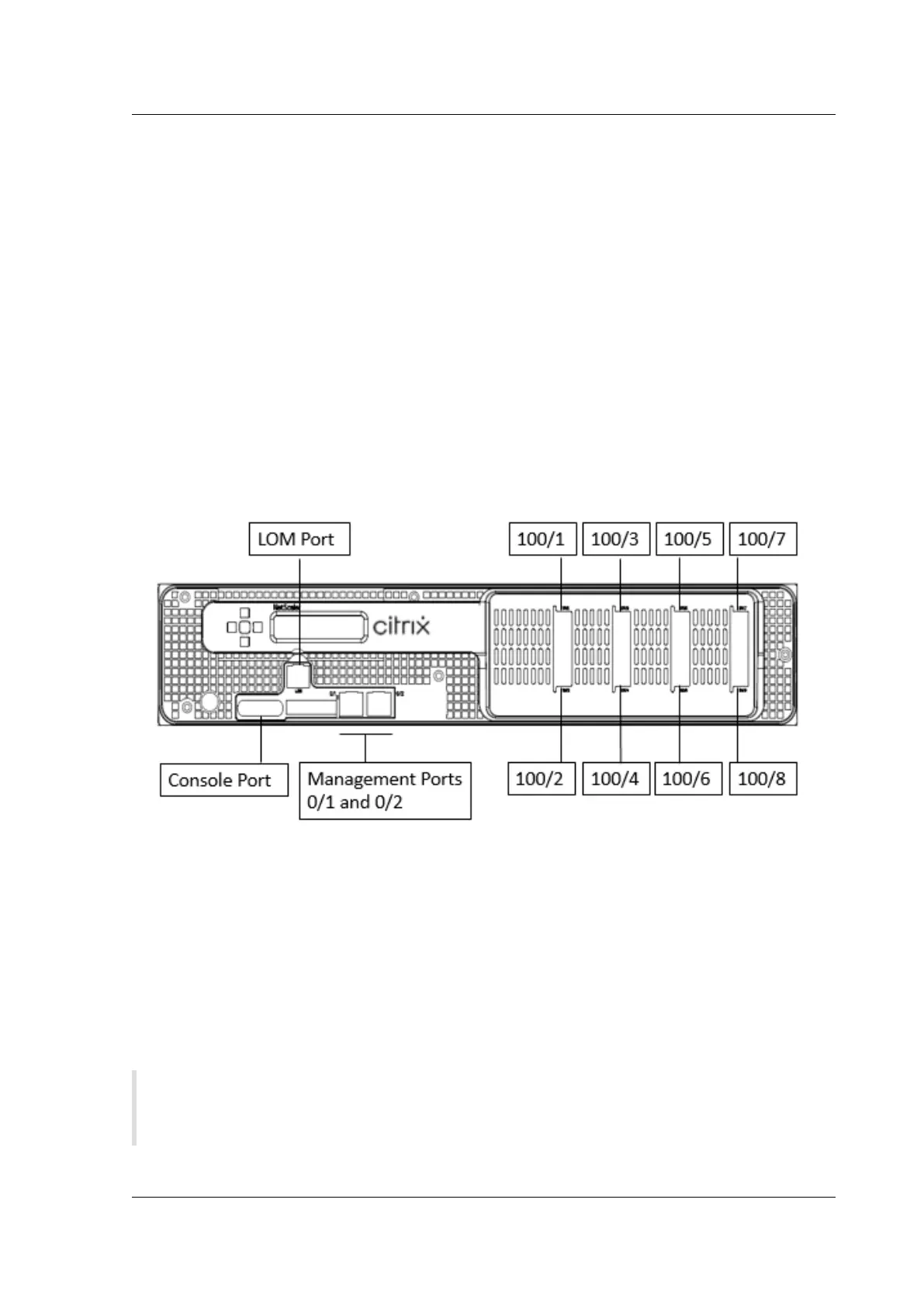

Figure 1. Citrix ADC MPX 26000-100G and Citrix ADC MPX 26000T-100G, front panel
The Citrix ADC MPX 26000-100G and Citrix ADC MPX 26000T-100G appliances have the following ports:
• RS232 serial Console Port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T RJ45 copper EthernetManagement Ports, numbered 0/1 and 0/2. These
ports are used to connect directly to the appliance for Citrix ADC administration functions.
• Eight 100G Ethernet Ports, numbered 100/1 to 100/8. For information about supported
transceivers per port, see 25G, 40G, 50G, and 100G ports.
Note
There are no native 10G ports on 26000-100G. The 100G ports support native 40G/50G/100G
© 1999‒2022 Citrix Systems, Inc. All rights reserved. 94
