the LOM GUI, in the Remote Control menu. For more information about the lights out manage-
ment port of the appliance, see Lights out management port of the Citrix ADC MPX appliance.
Citrix ADC MPX 25000-40G
September 22, 2022
The Citrix ADC MPX 25000-40G are 2U appliances. Each model has two 10-core processors, 256 GB of
memory, four 40G QSFP+ ports, and sixteen 10G SFP+ ports (4x40G QSFP+ 16x10G SFP+).
The following figure shows the front panel of the MPX 25100/MPX 25160/25200 40G appliances.

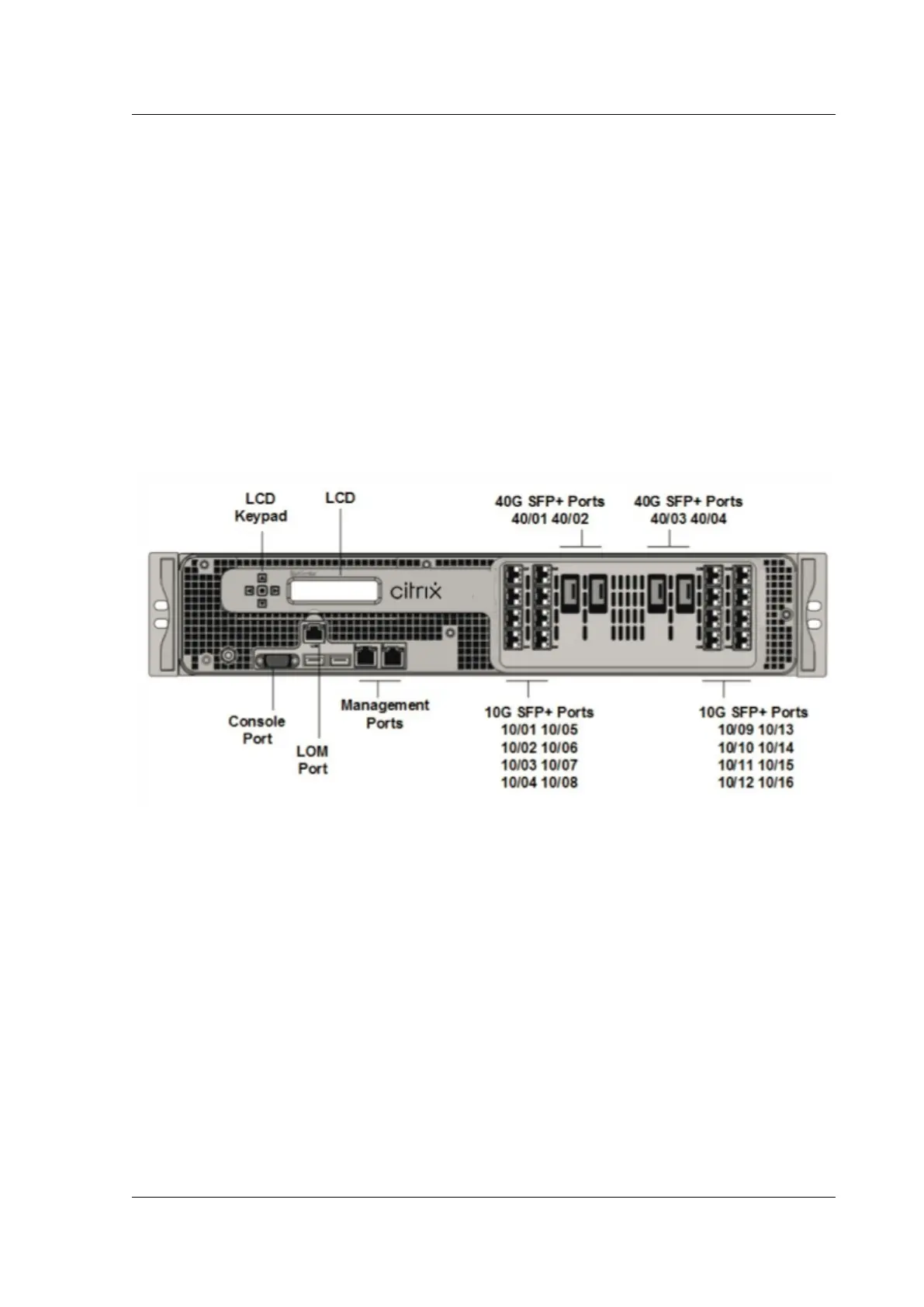

Figure 1. Citrix ADC MPX 25100 40G, MPX 25160 40G, MPX 25200 40G, front panel
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Network Ports. Four 40G QSFP+ ports and sixteen 10G SFP+ ports (4x40G QSFP+, 4x10G SFP+,
4X10G Base-T). For information about supported transceivers per port, see 25G, 40G, 50G, and
100G ports.
• USB ports (reserved for a future release).
Note the following points regarding the network ports on MPX 25100 40G and MPX 25160 40G appli-
ances:
• 10G ports do not support 1G copper or 1G fiber transceivers.
• 40G ports do not support 10G and 1G transceivers.
