Citrix ADC MPX 5550 User Manual

Citrix ADC MPX
Citrix ADC MPX 17550, MPX 19550, MPX 20550, and MPX 21550
September 19, 2022
Note: This platform has reached its end of life.
The Citrix ADC models MPX 17550, MPX 19550, MPX 20550, and MPX 21550 are 2U appliances. Each
model has two 6-core processors for a total of 12 physical cores (24 cores with hyper-threading), and
96 GB of memory.

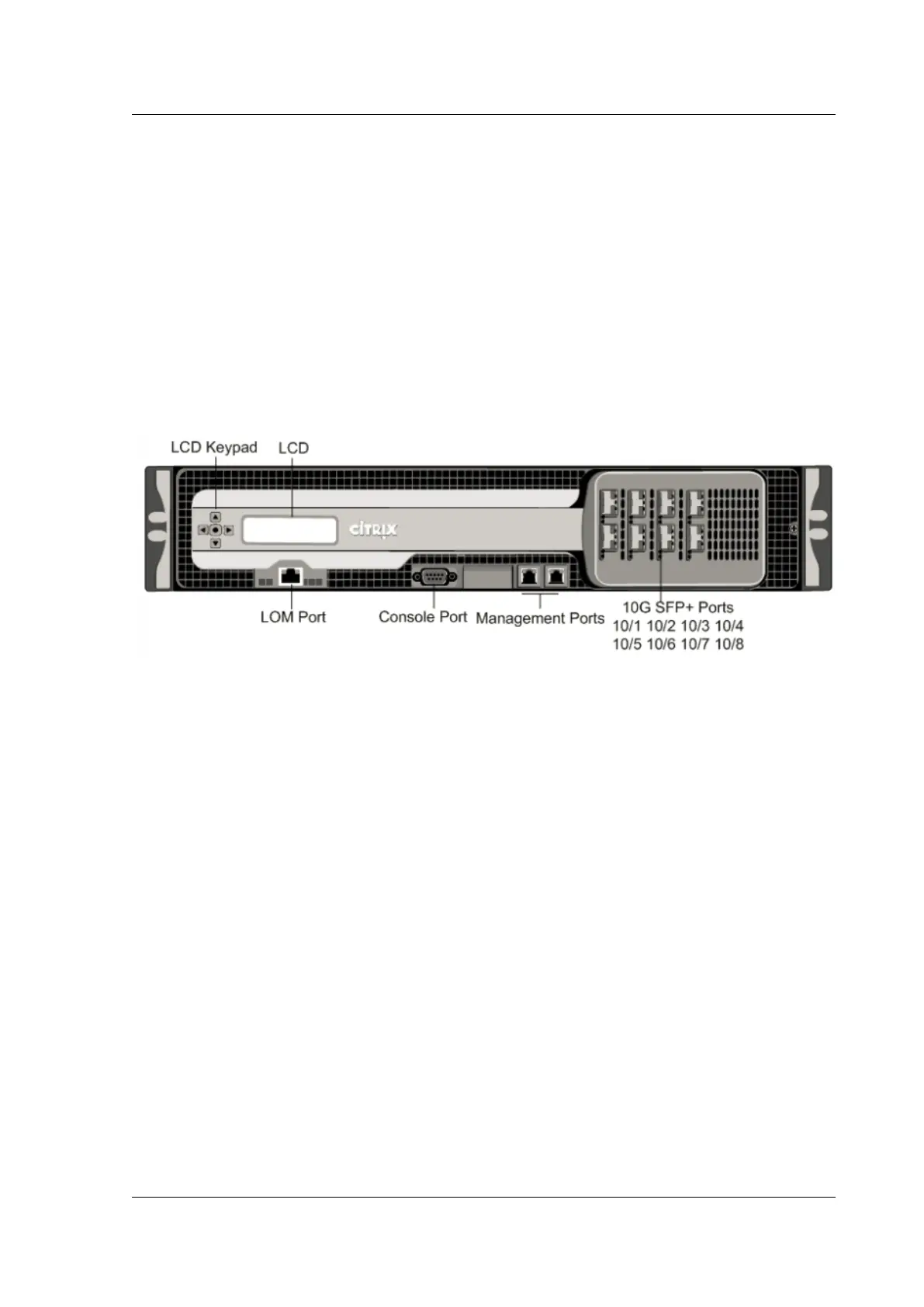

The following figure shows the front panel of the MPX 17550/19550/20550/21550 appliance.
Figure 1. Citrix ADC MPX 17550/19550/20550/21550 appliance, front panel
The MPX 17550/19550/20550/21550 appliance has the following ports:
• 10/100Base-T copper Ethernet Port (RJ45), also called LOM port. You can use this port to re-
motely monitor and manage the appliance independently of the Citrix ADC soware.
Note: The LEDs on the LOM port are not operational by design.
• RS232 serial console port.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Eight 10G SFP+ ports numbered 10/1, 10/2, 10/3, and 10/4 on the top row from le to right. Ports
are numbered 10/5, 10/6, 10/7, and 10/8 on the bottom row from le to right.
The following figure shows the back panel of the MPX 17550/19550/20550/21550 appliance.
Figure 2. Citrix ADC MPX 17550/19550/20550/21550 appliance, back panel
