Citrix ADC MPX 5550 User Manual

Citrix ADC MPX
1 http://192.168.100.1
2 <!--NeedCopy-->
Note: The Citrix ADC soware is preconfigured with this default IP address.
If you have already assigned as NSIP address, type that address in a web browser.
2. In User Name, type nsroot. In Password, if the earlier default password does not work, try
typing the serial number of the appliance. The serial number bar code is available at the back
of the appliance. Citrix recommends that you change the password aer the first logon. For
information about changing the password, see Change the administrative password.

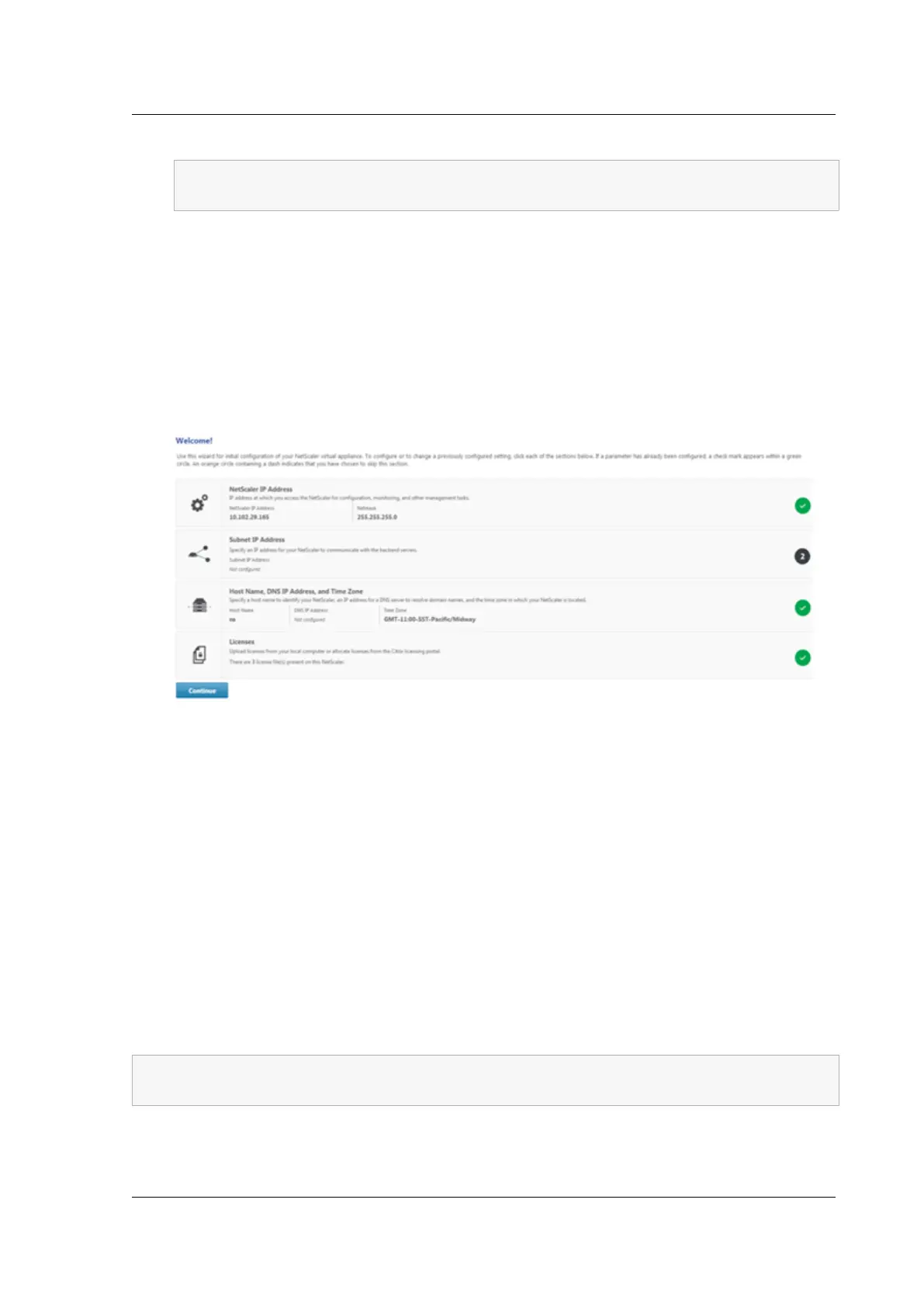

The following screen appears.
3. To configure or to change a previously configured setting, click inside each section. When done,
click Continue.
4. When prompted, select Reboot.
Using the LCD keypad
When you first install the appliance, you can configure the initial settings by using the LCD keypad on
the front panel of the appliance. The keypad interacts with the LCD display module, which is also on
the front panel of these appliances.
Note: You can use the LCD keypad for initial configuration on a new appliance with the default config-
uration. The configuration file (ns.conf) must contain the following command and default values.
1 set ns config -IPAddress 192.168.100.1 -netmask 255.255.0.0
2 <!--NeedCopy-->
The functions of the dierent keys are explained in the following table.
© 1999‒2022 Citrix Systems, Inc. All rights reserved. 147

Citrix ADC MPX 5550 Specifications

General

Brand	Citrix
Model	ADC MPX 5550
Category	Network Hardware
Language	English
