• RS232 serial Console port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM port. Use this port to remotely monitor and
manage the appliance independently of the ADC soware.
• One 10/100/1000Base-T RJ45 copper Ethernet management port, numbered 0/1. This port is
used to connect directly to the appliance for ADC administration functions.
• Two USB ports (reserved for a future release).
• Eight 25G SFP+ ports, numbered 25/1 to 25/8. For information about supported transceivers per
port, see 25G, 40G, 50G, and 100G ports.
The following figure shows the back panel of the MPX 9100 appliance.

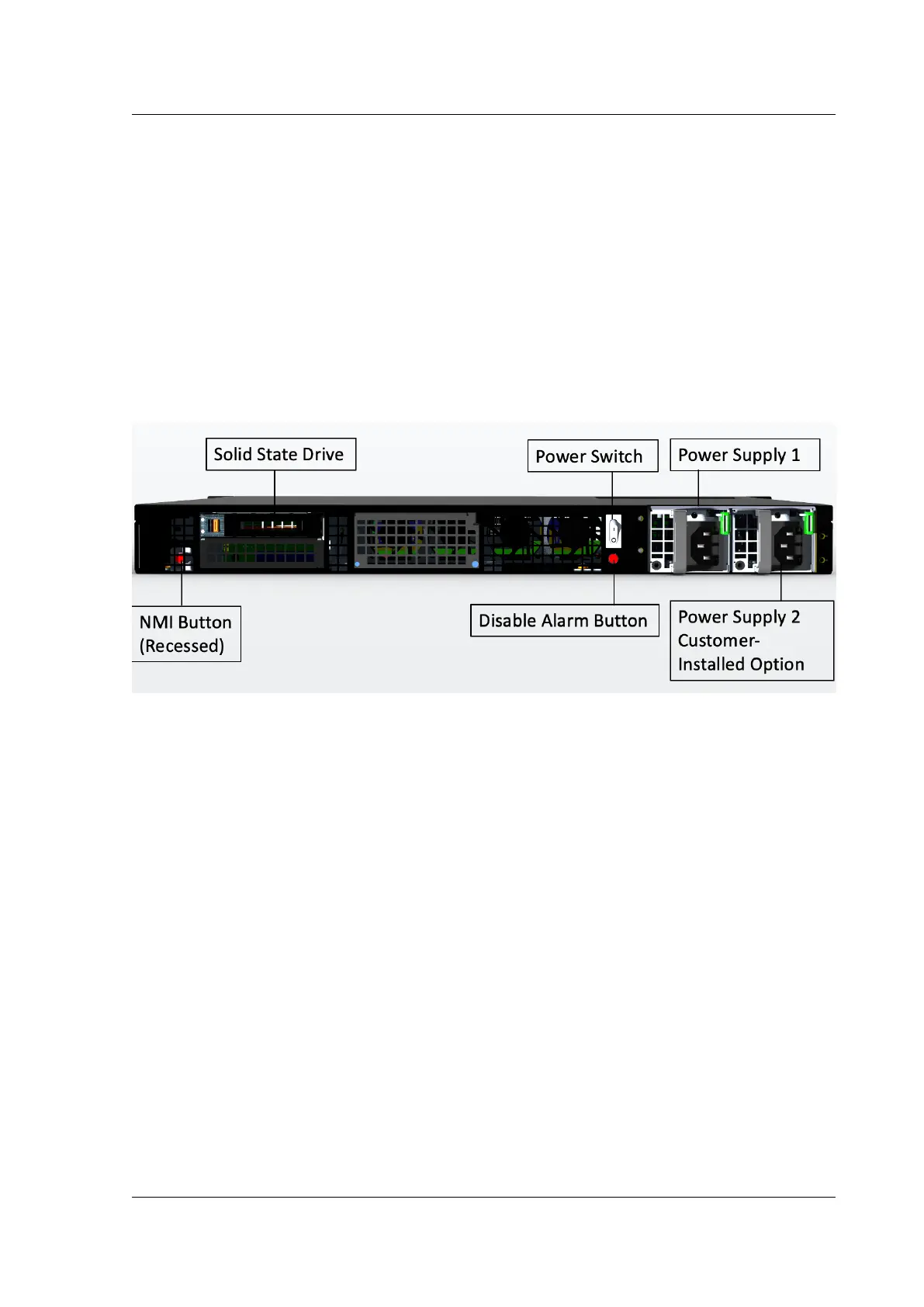

Figure 2. Citrix ADC MPX 9100, back panel
The following components are visible on the back panel of the MPX 9100 appliance:
• One 480 GB removable solid-state drive (SSD).
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Power switch, which turns power to the appliance on or o.
– Ifthe OS is functional, press the switch for less than two seconds to powerdown the system
with a graceful shutdown.
– If the OS is not responsive, press the power switch for more than 4 seconds to force the
power o.
• One power supply, rated at 450 watts, 100–240 VAC (second power supply for redundancy is
a customer-installable option). Maximum power consumption is 275 watts and typical power
consumption is 225 watts. The following table indicates the LED status of each power supply:
