CITROEN 2007 c4 picasso - Fuses on the Battery

176
V

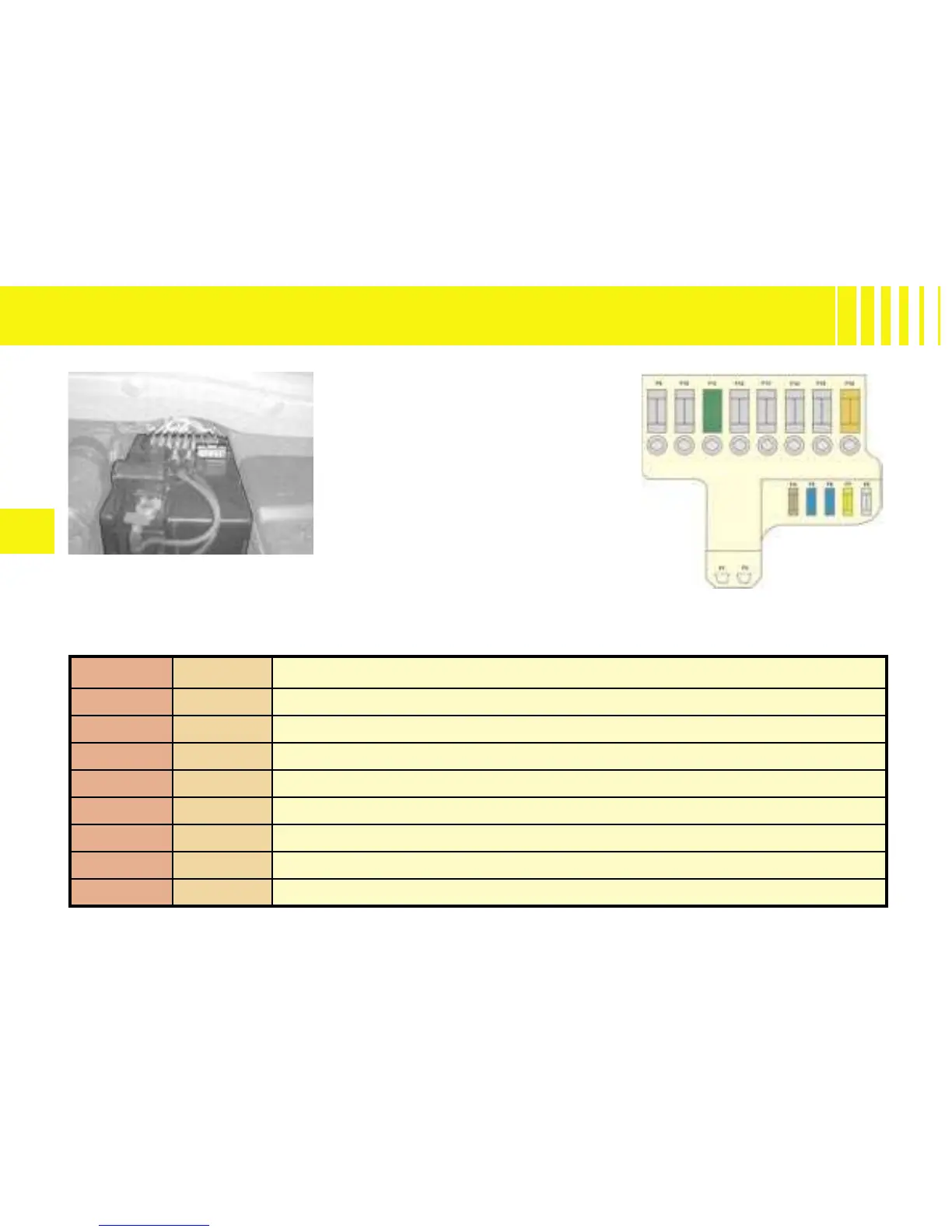

TABLE OF FUSES - FUSES ON THE BATTERY
Reference Rating Functions
F1 Battery Plus connection studs
F2 Supply connection studs, BSM (engine relay unit)
F3
F4 5A Automatic gearbox actuator and ECU
F5 15A Diagnostic socket
F6 15A ECU for 6-speed electronic gearbox / automatic gearbox
F7 5A ESP ECU
F8 20A Rear 12V socket
Fuses on the battery
Fusebox
To access the fusebox located on
the battery, detach and remove
the cover.
After any operation, carefully
reclose the cover. If the cover is
not correctly positioned or not
properly closed, that could cause
serious problems on your vehi-
cle. For the same reason, take
care not to spill any liquid in the
fusebox.
