CITROEN C2 2003 - Setting the Timing

59
CHECKING AND SETTING THE VALVE TIMING
Engines : HFX - KFV
B1BP2MBCB1BP2M9C B1BP2MDC
Setting the timing
Preliminary operation.
Lift and support the vehicle, wheels hanging.
Disconnect the battery.
Remove:
- The front RH wheel.
- The splash-shield, using tool [6]
- The accessories belt (See corresponding operation).
- The crankshaft pulley.
- The oil filter.
Place a jack under the engine, peg the engine.
Removing.
HFX - KFV engine

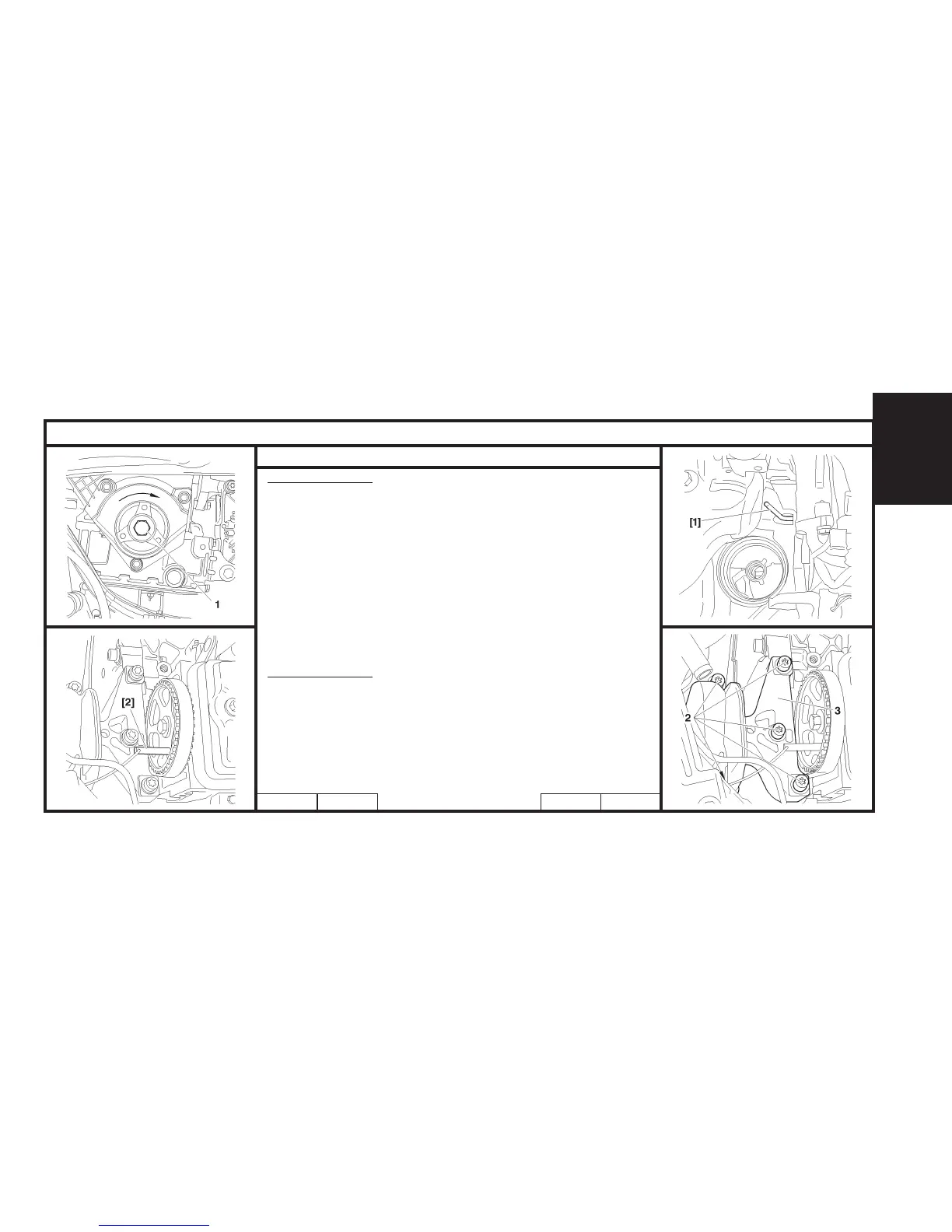

Turn the engine by means of screw (1). (normal direction of rotation).
Remove the timing casings.
Peg the camshaft pinion, using tool [2].
Peg the flywheel, using tool [1].
Remove:
- The fixing screws (2).
- The upper engine support (3).
ENGINE
B1BP2MCC
