37
AUXILIARY EQUIPMENT DRIVE BELT
Engine : 4HW

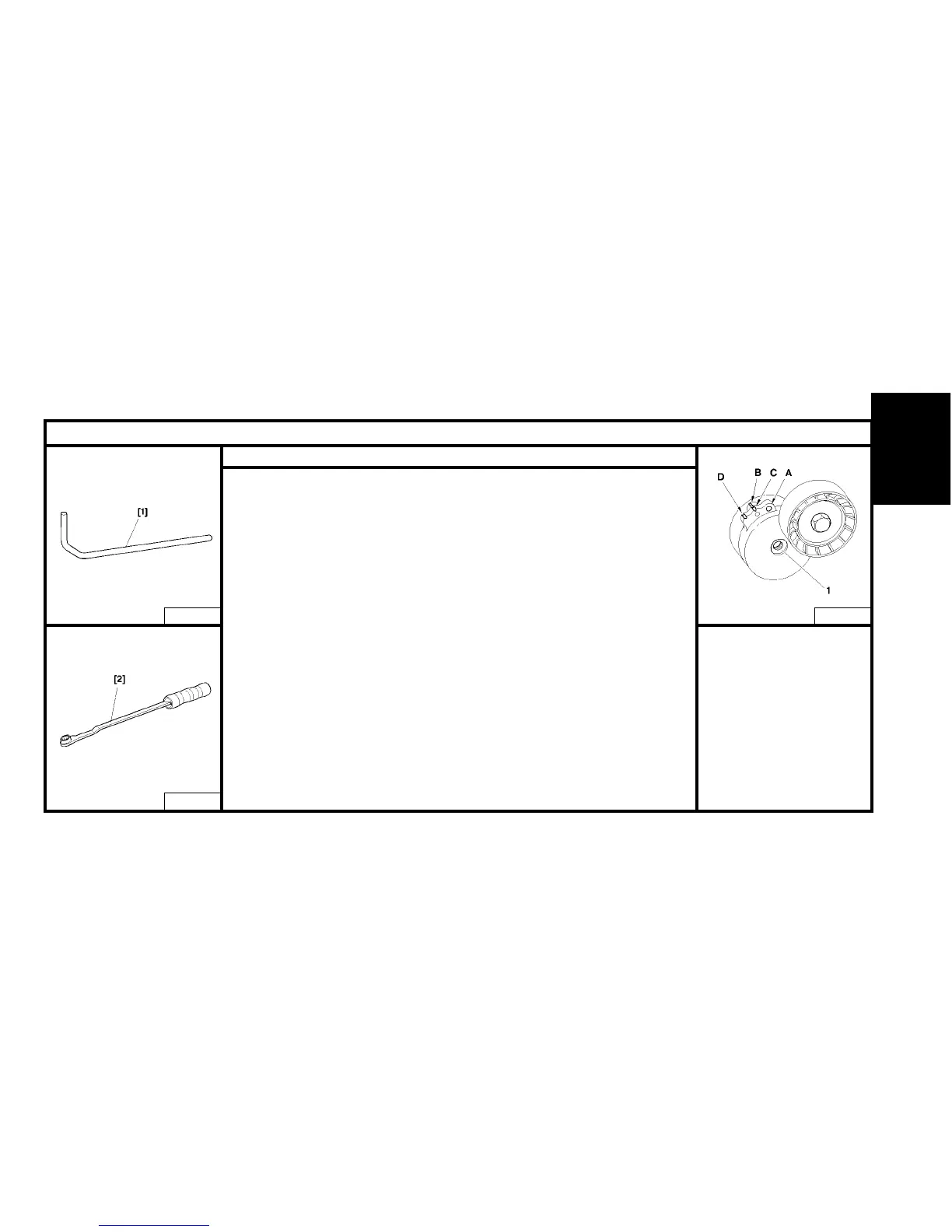

Tools.
[1] Peg for dynamic roller : (-) 0188-Q1
[2] Dynamic roller compression lever : (-).1888-Z.
(A) Pegging hole.
(B) Belt wear check mark (fixed on engine).
(C) Zero wear mark.
(D) Maximum wear mark.
This marking system permits checking of the belt wear; if the marks (D) and (B)
coincide, it implies that the belt requires replacing.
Tighten the screw (1) to 4.5 ± 0.4 m.daN.
Removing.
Remove:
- The front RH wheel.
- The front RH splash-shield.
- The under-engine shield.
IMPERATIVE : Mark the direction of rotation of the belt if to be re-used.
E5AK0EDC
E5AK0E8C
B3EK09PC
ENGINE
