CITROEN C8 2002 - XFW Valve Timing: Camshaft Pinion Installation; Refitting Procedure (Continued); Timing Setting Checks

57
CHECKING AND SETTING THE VALVE TIMING
Engine : XFW
Refitting (continued).

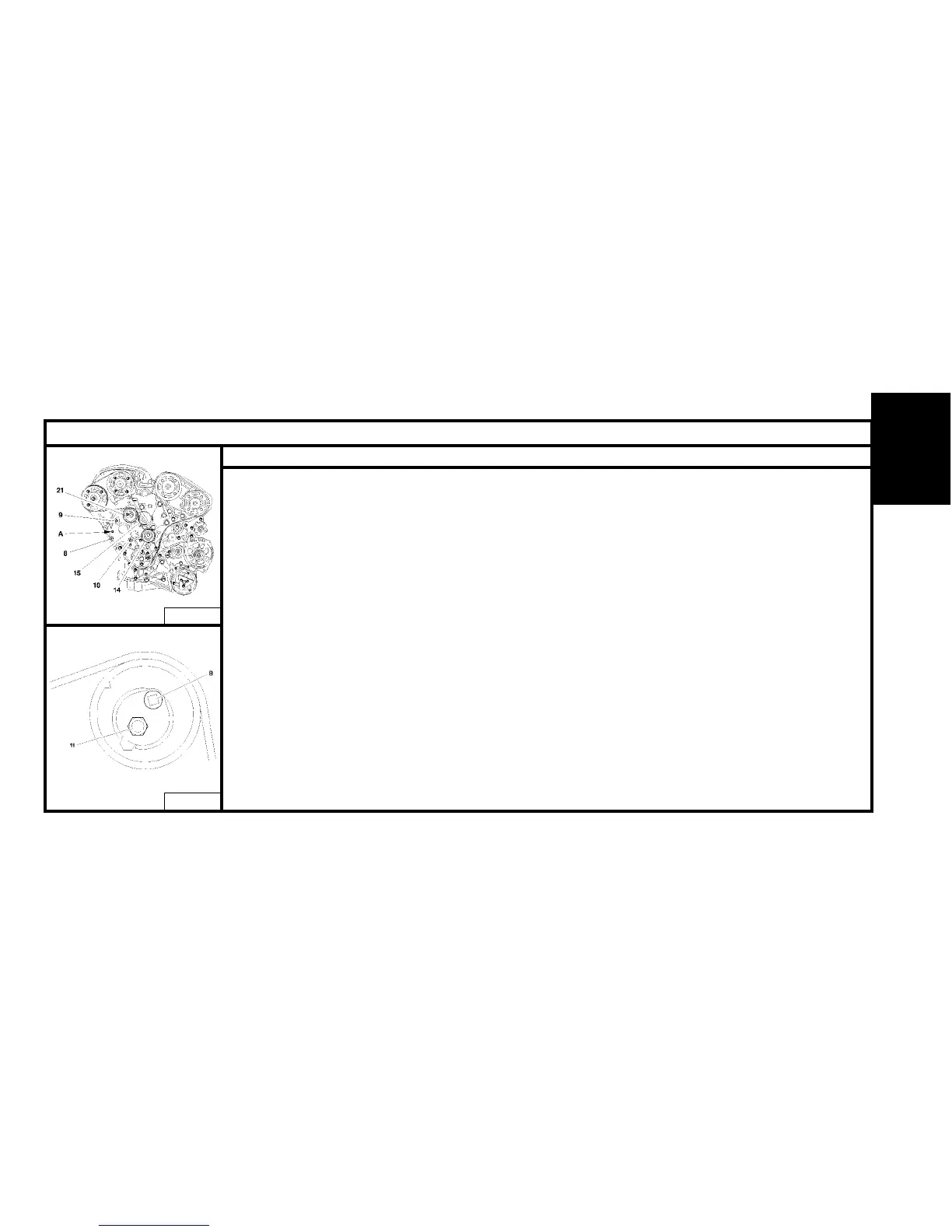

Engage the belt on:
The roller (13).
The camshaft pinions, inlet (19) then RH exhaust (20), as before for the camshafts.
Simultaneously engage the belt on:
The roller (21).
The pump (15).
The roller (14).
Using tool FACOM S.161, at «A», pivot the plate to be able to engage the screw (8).
Tighten screws (8), (9) and (10) to 2.5 ± 0.2 m.daN.
Pivot the tensoner roller to tension the belt to the maximum (anti-clockwise), using tool FACOM R.161 at «B» :
- SEEM CTI 901-1 : 440 ± 15 SEEM units,
- SEEM CTG 105.5 : 83 ± 2 SEEM units,
- SEEM CTG 105.6 : 86 ± 2 SEEM units.
Tighten the nut (11) of the tensioner roller to 1 ± 0.1 m.daN.
IMPERATIVE : Check that the camshaft pinions are not at end of slots (by removing a screw).
If they are, repeat the operation to refit the belt.
B1EK00CD
B1EK00DD
ENGINE
